Description:

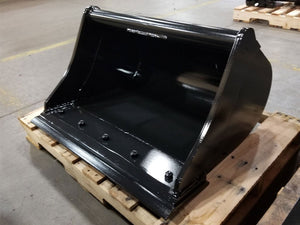

WAIN ROY CFX120DB / CFX125DB Central Fabricator “X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.
Specifications:
| OEM PIN ON | Capacity (CU. YD.) | LBS |
|---|---|---|
| 36" | 0.50 | 798 |
| 42" | 0.60 | 890 |
| 48" | 0.70 | 1052 |
| 54" | 0.80 | 1154 |
| 60" | 0.90 | 1256 |
| 66" | 1.00 | 1359 |
| 72" | 1.10 | 1461 |
| OEM PIN ON | Capacity (CU. YD.) | LBS |
|---|---|---|
| 36" | 0.70 | 1048 |
| 42" | 0.83 | 1170 |
| 48" | 0.97 | 1291 |
| 54" | 1.10 | 1413 |
| 60" | 1.24 | 1575 |
| 66" | 1.38 | 1657 |
| 72" | 1.52 | 1815 |
| 78" | 1.66 | 1899 |
| 84" | 1.70 | 2111 |
| Model | Capacity (CU. YD.) | LBS |
|---|---|---|
| DG3-36 | 0.49 | 710 |
| DG3-48 | 0.67 | 740 |
| DG3-60 | 0.81 | 820 |
| DG3-72 | 1.00 | 935 |
Fit:
| MAKE | MODELS |
|---|---|
| CASE | 9010B, CX130B, CX130D, CX135 MSR, CX145 |
| CAT | 311 D LRR, 311C, 311F LRR (2017), 312C L, 312D, 312D L, 313F L GC (2017), 314D, 315F, A-link, M313C |
| DOOSAN | 1202, DX140, S140LCV |
| HITACHI | ZX120, ZX120-3, ZX130-6, ZX135, ZX135US-3 |
| HYUNDAI | HW140, HX130LCR, HX140L, HX145LCR, R110D-7, R125LCR09A, R140LC-7, R140LC-9, R140LC-9A, R140LCD-7, R140W-9, R140W-9A, R145LCR-9, R145LCR-9A |
| JCB | HYDRADIG 110W, JS130LC, JS131, JS145, JZ141 |
| JOHN DEERE | 110, 120C, 120D, 130G, 135C RTS, 135D, 135G, 490D, 490E |
| KOBELCO | 115SRDZ, 135SRLCOSB, 140SR |
| KOMATSU | PC100-6, PC120-6, PC128UU-2, PC130-8, PC138USLC-11, PC138USLC-2, PC158USLC-2, PC20LC-6 |
| LIEBHERR | A309, A311, A312 |
| LINK BELT | 130 X2, 130 X3, 130 X4, 130LX, 135MSR, 145 X3 Spin Ace (Tier 4a), 145 X4 Spin Ace, 210LX-LF, 240LX-LF |
| MECALAC | 11MWR |
| NEW HOLLAND | E135B, EH130LC |
| SANY | SY135C-Tier 2 |
| TEREX | TC125 (hr42), TC140LC-1, TW110, TW130 |
| VERMEER | CX224, CX229, CX234 |
| VOLVO | EC140B-LC, EC140C, EC140E, ECR145C, ECR145E |
| WACKER NEUSON | GE1202, ME12002 |
