Description
Wain Roy / Paladin
20,000–30,000 lb excavators
3 coupler options
Overview

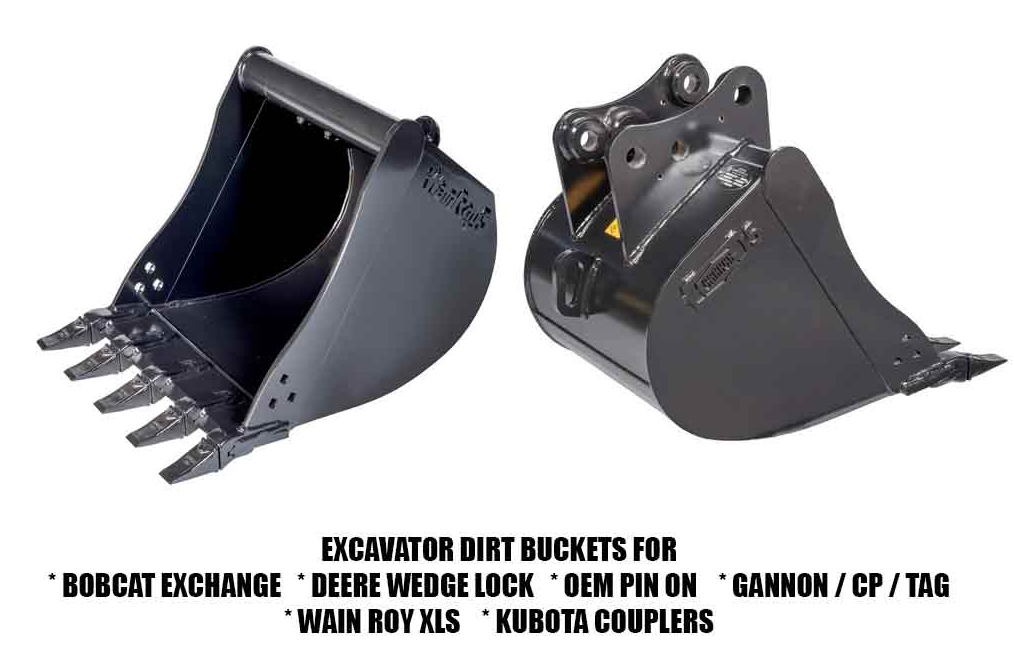

This Wain Roy excavator bucket is built for 20,000 to 30,000 lb excavators — the 10 to 15 tonne class. It comes in five capacity and duty styles across three coupler types: Pin On OEM, Wain Roy QC Original and Wain Roy XLS. Bucket weights run 698 to 1,689 lbs depending on style and width. Wain Roy is the original heavy-duty bucket maker for excavators and backhoes, and the CEX Series carries a rugged full-length double bottom.
Key Features of This Wain Roy Excavator Bucket
- Five styles — General Purpose, STD. Capacity HD, STD. Capacity Extra HD, High Capacity HD and High Capacity Extra HD.
- Three coupler options: Pin On OEM, Wain Roy QC Original, Wain Roy XLS.
- 698–1,689 lbs across the range, by style and width.
- Full-length double bottom on the CEX Series construction.
- Heavy-duty models take clay, gravel, compacted soils and loose rock; standard capacity suits soils with low percentages of rock, loam and sand.
- Optional bolt-on side cutter kits.
- Fits Case, CAT, Doosan, Hitachi, Hyundai, JCB, John Deere, Kobelco and Komatsu machines in this weight class.
- Sold as a Wain Roy bucket — an excavator dirt bucket for the 10 ton excavator bucket class, where an OEM standard shell often is not enough.
- A heavy duty excavator bucket for real digging: an excavator digging bucket rather than a light loading shell.
- Available as a pin on excavator bucket or a quick coupler excavator bucket, so the same shell suits either machine setup.
Why Choose This Dirt Bucket
- Capacity and duty are two separate choices. Standard vs High Capacity is how much the bucket holds; HD vs Extra HD is how much abuse it takes. A big bucket in rock fails; a small heavy one wastes cycles.
- The coupler decides fitment before the size does. Pin-on mounts directly to the boom; a quick coupler is a separate frame the bucket locks into. Ordering the wrong one means it does not mount at all.
- Match the bucket to the material, not to the machine's maximum. An excavator that can lift a full high-capacity bucket of loam will stall on the same bucket full of wet clay.
Wain Roy Excavator Bucket Specifications
| Specification | Detail |
|---|---|
| Carrier class | 20,000–30,000 lb excavators (10–15 tonne) |
| Styles | General Purpose · STD. Capacity HD · STD. Capacity Extra HD · High Capacity HD · High Capacity Extra HD |
| Couplers | Pin On OEM · Wain Roy QC Original · Wain Roy XLS |
| Weight range | 698–1,689 lbs |
| Construction | CEX Series, full-length double bottom |
| Options | Bolt-on side cutter kits |
Coupler First, Then Size
Choose the coupler your machine runs, then the style and width. The coupler is a fitment question with a yes/no answer; the style is a judgement about material.
| Mounting | Weight range |
|---|---|
| Pin On OEM | 714–1,689 lbs |
| Wain Roy QC original | 698–1,213 lbs |
| Wain Roy XLS | 698–1,213 lbs |
For separating rock from soil rather than moving it, the skeleton bucket in the same class lets fines fall through. For sustained work in rock, the severe duty rock bucket is the heavier build.
Which Machines Fit This Excavator Bucket?
This bucket fits 20,000–30,000 lb excavators and mounts pin-on or on a Wain Roy QC Original or XLS coupler. No hydraulics are required. At 698–1,689 lbs the bucket alone is a meaningful share of what the machine lifts, so check the loaded weight rather than the empty one.
| Requirement | Specification |
|---|---|
| Carrier | 20,000–30,000 lb excavator |
| Mounting | Pin On OEM · Wain Roy QC Original · Wain Roy XLS |
| Attachment weight | 698–1,689 lbs by style and width |
| Hydraulics | None required |
If you are unsure which coupler or size suits your machine, contact eskidsteer.com at (866) 757-8337. Next size along: if your machine sits either side of this class, dirt buckets for 12,500–20,000 lb machines or dirt buckets for 30,000–41,000 lb machines covers the neighbouring range. From the wider Paladin range: the Paladin CP excavator quick coupler — if your machine has no coupler yet, that is the interface these buckets hang on.
Dirt Bucket Questions, Answered
Which style should I order?
General Purpose for everyday soil. HD for clay, gravel and compacted material. Extra HD where loose rock is routine. Standard vs High Capacity is a separate choice about volume.
What does High Capacity change?
The bucket holds more per pass. That is only useful if the machine can lift the extra material — in dense clay a high-capacity bucket often cannot be filled anyway.
Will it fit my brand of excavator?
Wain Roy lists Case, CAT, Doosan, Hitachi, Hyundai, JCB, John Deere, Kobelco and Komatsu in this class. What matters is the coupler, not the badge.
What is the CEX Series double bottom?
A full-length second layer of plate along the bucket floor — the surface that wears fastest. It is what separates a heavy-duty bucket from an OEM standard one.
Pin-on or quick coupler — does it change the bucket?
On this product the shell is the same; what changes is the interface. A coupler costs you a little breakout reach because the bucket sits further from the boom, but you swap attachments in seconds rather than driving out pins.
How many widths are there?
Forty-one SKUs across the five styles, so most widths in this class are covered. Width and style are ordered together — a wide bucket in Extra HD is a different part from a wide bucket in General Purpose.
Do I need the side cutter kits?
They bolt on and widen the effective cut slightly while protecting the bucket corners, which is where side wear concentrates. On rock and abrasive fill they pay for themselves; in clean soil they are optional.
What wears out first?
The floor and the cutting edge, in that order. That is why the double bottom matters and why the edge is a replaceable bolt-on rather than part of the shell.
Which coupler do I have?
Look at how the last attachment came off. A pin-on bucket is held by two pins through the boom; a quick coupler is a separate frame the bucket locks into. If you are unsure, the machine make and model tells us — call (866) 757-8337.
