Description
Wain Roy / Paladin
12,500–20,000 lb excavators
6 mounting options
Overview

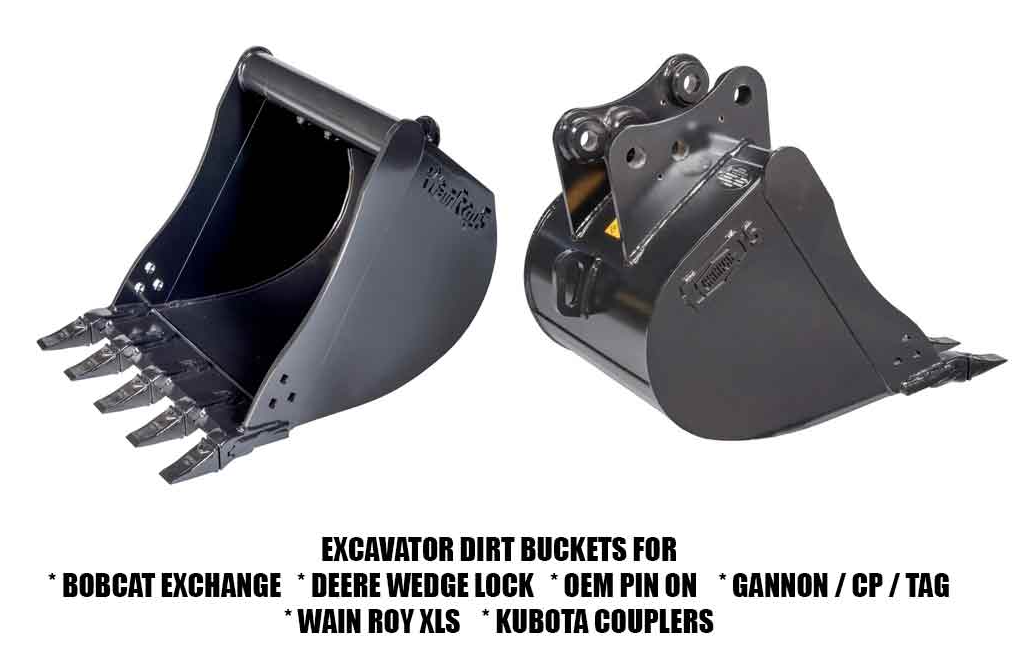

This Wain Roy dirt bucket is offered on a Wain Roy coupler — XLS or QC Original — as well as four other mountings, and fits 12,500 to 20,000 lb excavators. It comes in Heavy Duty and Extra Heavy Duty across six mountings — OEM Pin On, Wain Roy XLS, Gannon / CP / TAG, Kubota, Bobcat Exchange and Wedge Lock (Deere). On this product the mounting changes the weight: the same bucket runs 235 to 633 lbs depending on which interface it carries. CEX Series construction with a full-length double bottom.
Key Features of This Wain Roy Wain Roy Coupler Dirt Bucket
- Mounting changes the weight on this product — a pin-on shell and an XLS shell are not the same mass.
- Six mountings: OEM Pin On · Wain Roy XLS · Gannon / CP / TAG · Kubota · Bobcat Exchange · Wedge Lock (Deere).
- Heavy Duty and Extra Heavy Duty styles.
- 235–633 lbs across 14 SKUs and 80 variant rows.
- CEX Series full-length double bottom.
- Optional bolt-on side cutter kits.
- An extra heavy duty excavator bucket for compacted ground — a 6 ton excavator bucket that also suits TLB work.
Why Choose This Dirt Bucket
- Check the weight against YOUR mounting, not the range. On most Wain Roy buckets the coupler is just an interface; on this one it changes the mass by up to 76 lbs. The figure that matters is your configuration's.
- Six mountings is unusual and it is the point. This machine class spans Kubota, Bobcat and Deere fleets that all use different couplers, so the same bucket is built to suit each.
- Extra Heavy Duty is about survival, not capacity. It holds the same material; it lasts longer in abrasive ground. In clean soil the extra weight costs you payload.
Wain Roy Wain Roy Coupler Dirt Bucket Specifications
| Specification | Detail |
|---|---|
| Carrier class | 12,500–20,000 lb excavators |
| Styles | Heavy Duty · Extra Heavy Duty |
| Mountings | OEM Pin On · Wain Roy XLS · Gannon / CP / TAG · Kubota · Bobcat Exchange · Wedge Lock (Deere) |
| Weight range | 235–633 lbs — varies by mounting as well as width |
| SKUs | 14 across 80 variant rows |
| Construction | CEX Series, full-length double bottom |
| Options | Bolt-on side cutter kits |
Which Wain Roy Coupler Do You Have?
Wain Roy makes two coupler systems and they are not the same fitting. Wain Roy XLS is the current standard; Wain Roy QC Original is the earlier system and still widely in service. A bucket cut for one does not mount on the other, so the coupler is the first thing to establish — before size, before style. If your machine runs neither, this bucket is also offered on OEM pin on, Kubota, Bobcat Exchange, Deere Wedge Lock and Gannon / CP / TAG fittings, which is why it carries six mountings where most buckets carry three.
On this product the mounting also changes the attachment weight — the coupler interface is part of the bucket rather than a separate frame, so the same width can differ by dozens of pounds between fittings. Read the weight for your column, not the range as a whole.
Mounting First — and It Changes the Weight
Unlike most buckets in the range, the mounting on this product changes the attachment weight as well as the fitment. Pick your coupler first, then read the weight for that column.
| Type | Weight range |
|---|---|
| BOBCAT EXCHANGE | 250–633 lbs |
| GANNON / CP / TAG | 235–557 lbs |
| KUBOTA | 250–633 lbs |
| OEM PIN ON | 250–633 lbs |
| WAIN ROY XLS | 235–557 lbs |
| WEDGE LOCK (DEERE) | 250–633 lbs |
For larger machines the 20,000–30,000 lb dirt bucket covers the next class up. For backhoes rather than excavators, the straight wall backhoe bucket is built for TLB geometry.
Which Machines Fit This Wain Roy Coupler Dirt Bucket?
This bucket fits 12,500–20,000 lb excavators and is available for six different mounting systems, so most Kubota, Bobcat, Deere and pin-on machines in the class are covered. No hydraulics required. Attachment weight depends on the mounting you choose — 235 to 633 lbs across the range — so check the figure for your configuration rather than the range as a whole.
| Requirement | Specification |
|---|---|
| Carrier | 12,500–20,000 lb excavator |
| Mounting | 6 options — OEM Pin On, Wain Roy XLS, Gannon/CP/TAG, Kubota, Bobcat Exchange, Wedge Lock (Deere) |
| Attachment weight | 235–633 lbs — varies by MOUNTING as well as width |
| Hydraulics | None required |
If you are unsure which coupler or size suits your machine, contact eskidsteer.com at (866) 757-8337. Next size along: if your machine sits either side of this class, dirt buckets for 9,000–12,500 lb machines or dirt buckets for 20,000–30,000 lb machines covers the neighbouring range.
Dirt Bucket Questions, Answered
Why does the weight change with the mounting?
Because the coupler interface is part of the bucket on this product, not a separate frame. A pin-on shell and an XLS shell carry different amounts of material, so the same width can differ by dozens of pounds.
Which mounting do I need?
Whichever your machine runs — Kubota, Bobcat Exchange and Wedge Lock (Deere) are brand-specific; Wain Roy XLS and Gannon/CP/TAG are coupler systems; OEM Pin On mounts directly. If unsure, the machine make and model tells us.
Heavy Duty or Extra Heavy Duty?
Extra Heavy Duty for abrasive and rocky ground where wear is the limiting factor. Heavy Duty everywhere else — it holds the same material and leaves more of your lift capacity for the load.
Why are there 80 variant rows for 14 SKUs?
Because each bucket is offered across six mountings. The SKU identifies the bucket; the mounting is how it attaches.
Does the double bottom matter at this size?
More than it does on a big machine, proportionally. A smaller bucket has less material to give up before the floor wears through, so a full-length second layer is what keeps it in service.
Is there a Kubota excavator bucket option?
Yes — Kubota is one of the six mountings. So is Bobcat Exchange, and Wedge Lock for Deere. A mixed fleet can run the same bucket spec across machines by ordering the matching interface.
What is a CEX series bucket?
Wain Roy's heavy-duty excavator and backhoe line, built around a rugged full-length double bottom. This compact excavator dirt bucket is part of it.
Do I need the bolt-on side cutters?
They protect the corners, which is where side wear concentrates. On an extra heavy duty excavator bucket working abrasive fill they extend service life noticeably; in clean soil they are optional.
How does a bobcat excavator bucket differ from a wedge lock excavator bucket?
Only in the interface — the shell and capacity are the same. Bobcat Exchange and Wedge Lock (Deere) are two different coupler standards, and the bucket is built to suit whichever your machine carries.
Which coupler do I have?
Look at how the last attachment came off. A pin-on bucket is held by two pins through the boom; a quick coupler is a separate frame the bucket locks into. If you are unsure, the machine make and model tells us — call (866) 757-8337.
