CF120X350

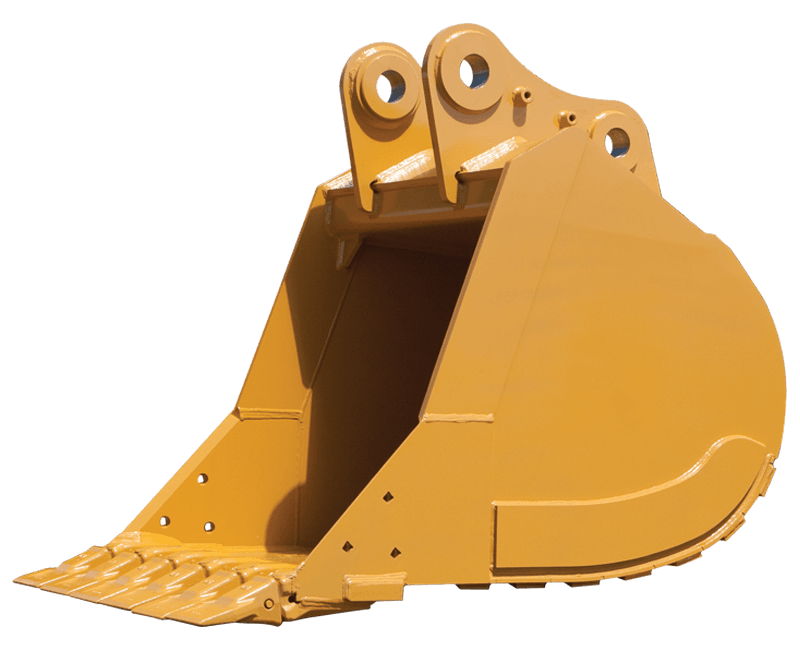

SEVERE DUTY PIN-ON EXCAVATOR BUCKET
Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.
CF125X350
HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET
Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.
SD3

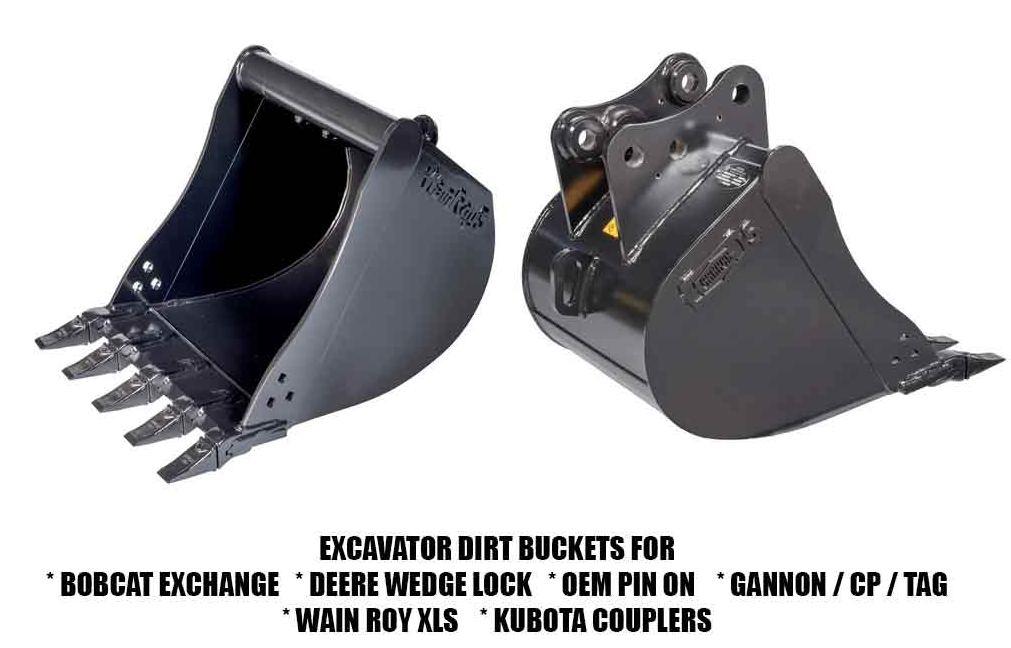

WAIN-ROY® QUICK CHANGE XLS AND ORIGINAL SEVERE DUTY EXCAVATOR BUCKET
Our Severe-Duty Buckets are specially designed for durability in severe abrasion applications and high impact conditions. SD buckets incorporate high strength materials and heavier material thickness for extended bucket life, structural strength and durability. SD buckets are also available in high capacity versions.
Available Mounts: OEM Pin On — Two Horizontal Pins; WAIN ROY XLS — Hook with Vertical Pin
| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 18" | 0.29 | 1179 | 3 |
| 20" | 0.33 | 1205 | 3 |
| 24" | 0.42 | 1295 | 3 |
| 30" | 0.57 | 1411 | 4 |
| 36" | 0.73 | 1481 | 5 |
| 42" | 0.88 | 1727 | 5 |
| 48" | 1.04 | 1959 | 6 |
| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 18" | 0.33 | 1509 | 3 |
| 20" | 0.38 | 1554 | 3 |
| 24" | 0.49 | 1645 | 3 |
| 30" | 0.66 | 1761 | 4 |
| 36" | 0.83 | 1790 | 5 |
| 42" | 1.00 | 1830 | 5 |
| 48" | 1.19 | 2309 | 6 |
| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 18" | 0.33 | 715 | 3 |
| 24" | 0.49 | 834 | 4 |
| 30" | 0.66 | 926 | 4 |
| 36" | 0.83 | 1040 | 5 |
| 42" | 1.00 | 1156 | 6 |
| 48" | 1.18 | 1249 | 6 |
| Make | Models (12 Ton / 20,000 - 30,000 lbs.) |
|---|---|
| CASE | 9010B, CX130B, CX130D, CX135 MSR, CX145 |
| CAT | 311 D LRR, 311C, 311F LRR (2017), 312C L, 312D, 312D L, 313F L GC (2017), 314D, 315F, A-link, M313C |
| DOOSAN | 1202, DX140, S140LCV |
| HITACHI | ZX120, ZX120-3, ZX130-6, ZX135, ZX135US-3 |
| HYUNDIA | HW140, HX130LCR, HX140L, HX145LCR, R110D-7, R125LCR09A, R140LC-7, R140LC-9, R140LC-9A, R140LCD-7, R140W-9, R140W-9A, R145LCR-9, R145LCR-9A |
| JCB | HYDRADIG 110W, JS130LC, JS131, JS145, JZ141 |
| JOHN DEERE | 110, 120C, 120D, 130G, 135C RTS, 135D, 135G, 490D, 490E |
| KOBELCO | 115SRDZ, 135SRLCOSB, 140SR |
| KOMATSU | PC100-6, PC120-6, PC128UU-2, PC130-8, PC138USLC-11, PC138USLC-2, PC158USLC-2, PC20LC-6 |
| LIEBHERR | A309, A311, A312 |
| LINK BELT | 130 X2, 130 X3, 130 X4, 130LX, 135MSR, 145 X3 Spin Ace (Tier 4a), 145 X4 Spin Ace, 210LX-LF, 240LX-LF |
| MECALAC | 11MWR |
| NEW HOLLAND | E135B, EH130LC |
| SANY | SY135C-Tier 2 |
| TEREX | TC125 (hr42), TC140LC-1, TW110, TW130 |
| VERMEER | CX224, CX229, CX234 |
| VOLVO | EC140B-LC, EC140C, EC140E, ECR145C, ECR145E |
| WACKER NEUSON | GE1202, ME12002 |
