CF150X350 / CF155X350

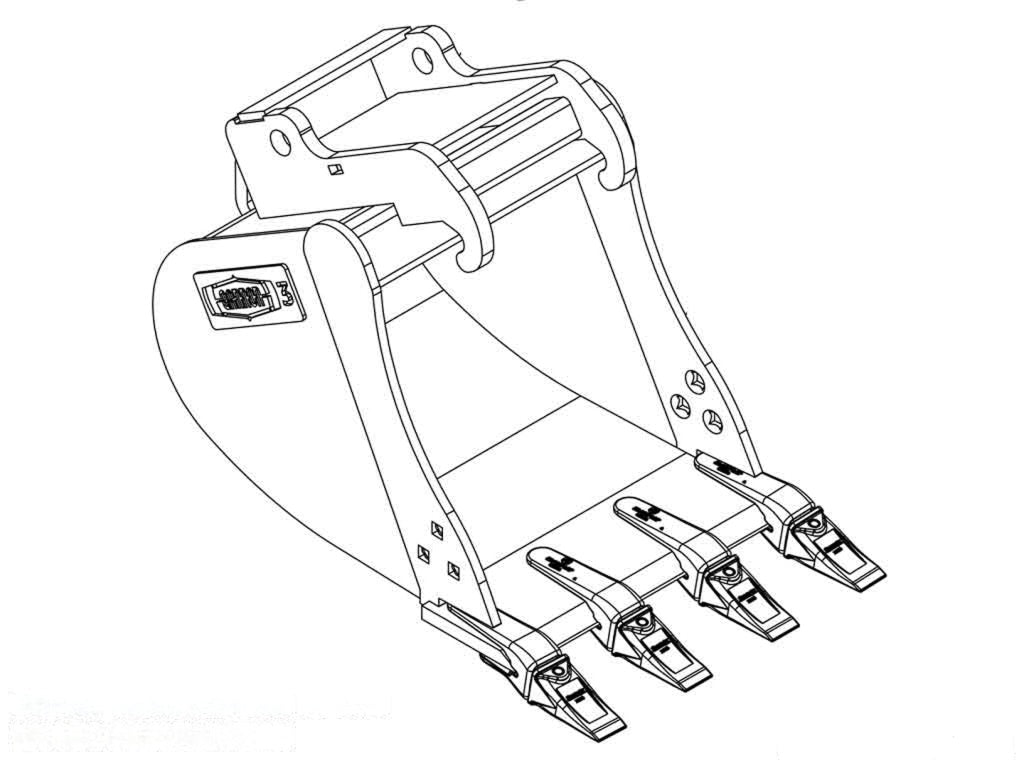

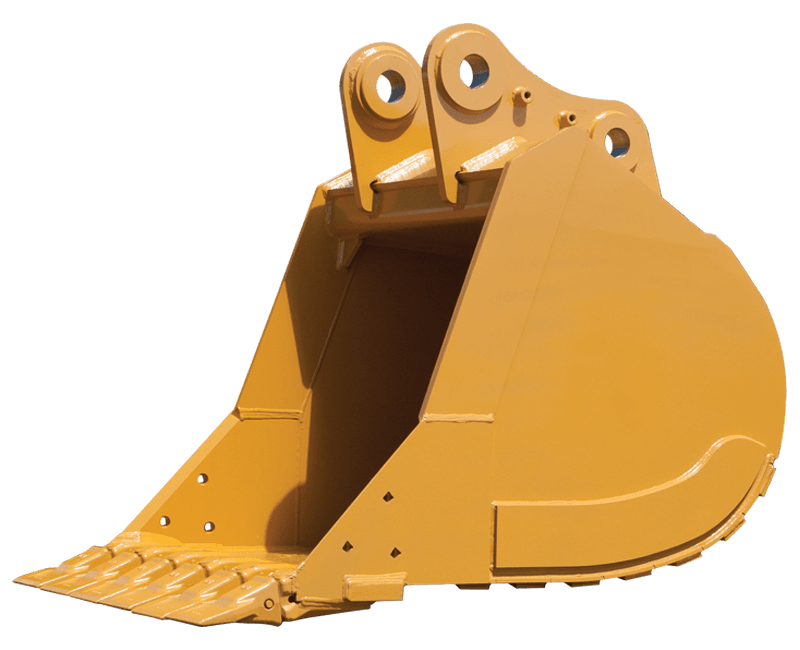

SEVERE DUTY PIN-ON EXCAVATOR BUCKET
“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.
Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.
Available Mounts: OEM Pin On — Two Horizontal Pins

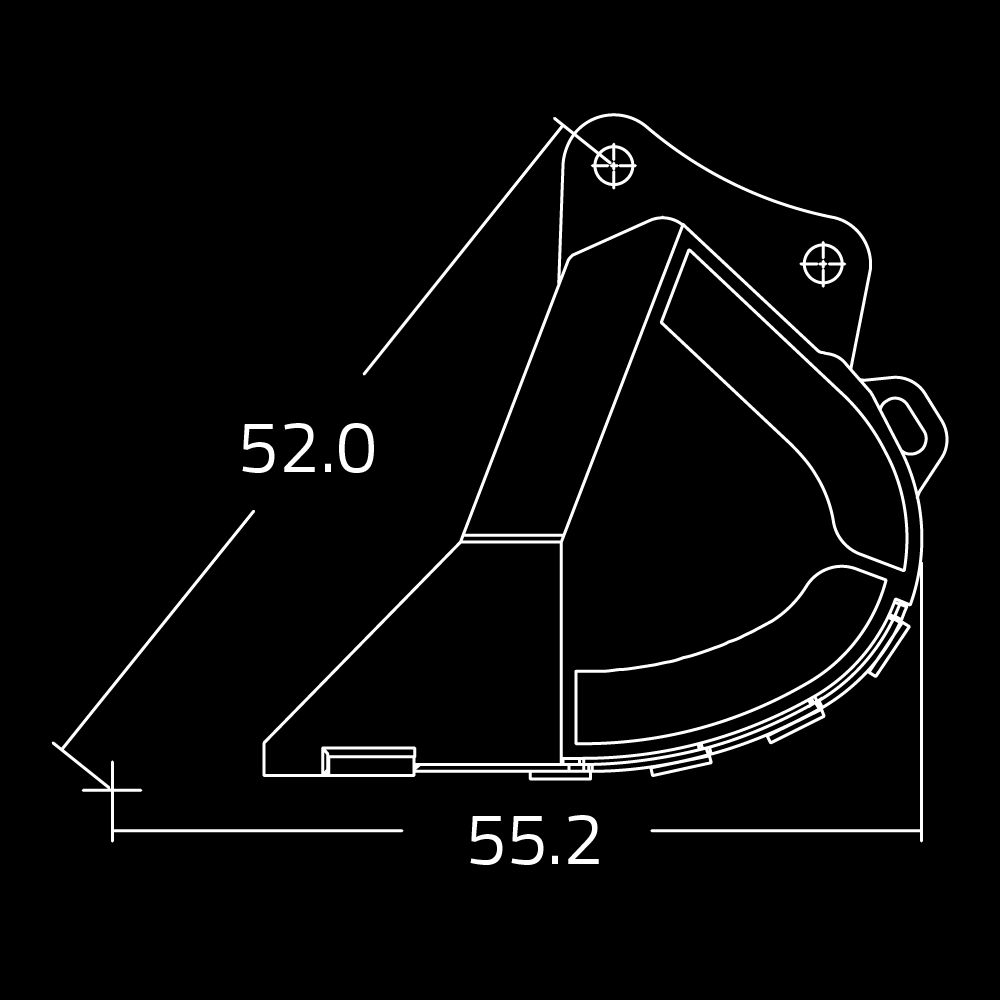

| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 18" | 0.34 | 1183 | 3 |
| 20" | 0.42 | 1255 | 3 |
| 24" | 0.50 | 1299 | 3 |
| 30" | 0.66 | 1415 | 4 |
| 36" | 0.83 | 1493 | 5 |
| 42" | 1.01 | 1730 | 5 |
| 48" | 1.18 | 1960 | 6 |

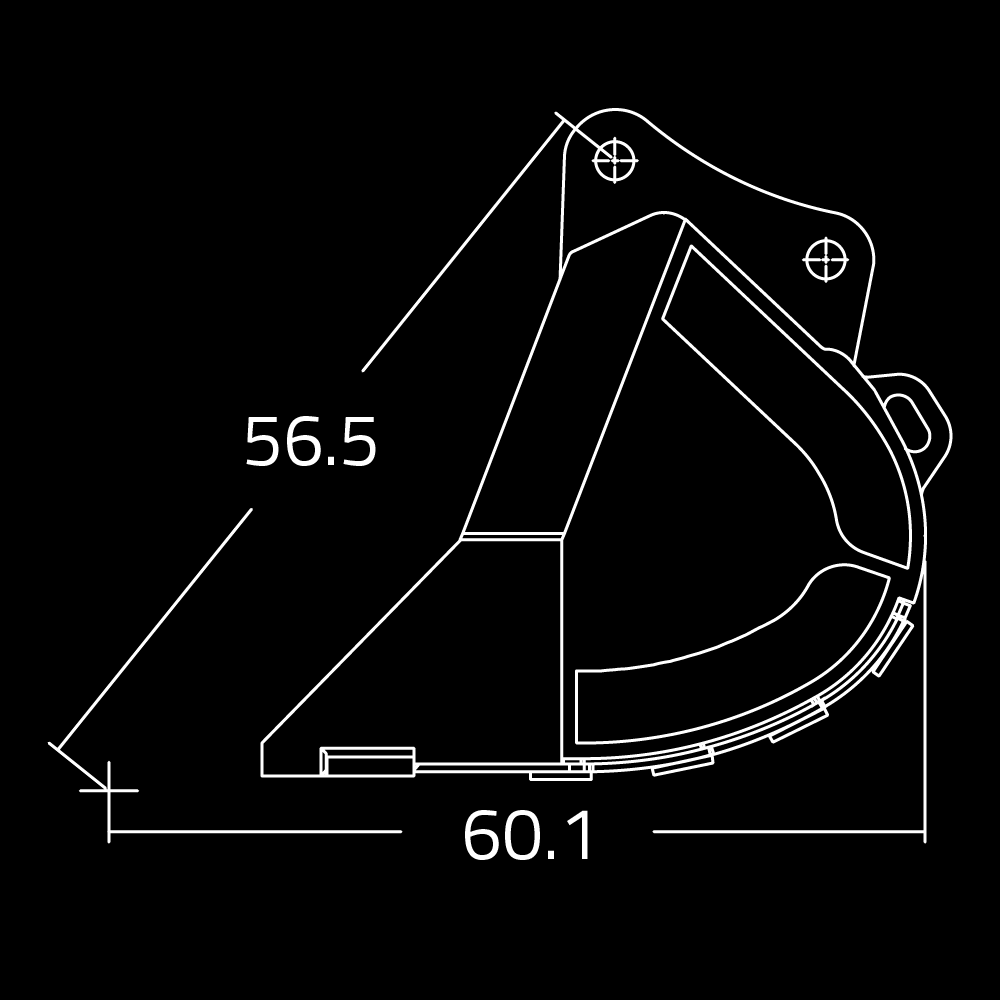

| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 18" | 0.37 | 1673 | 3 |
| 20" | 0.45 | 1693 | 3 |
| 24" | 0.54 | 1720 | 3 |
| 30" | 0.73 | 1777 | 4 |
| 36" | 0.92 | 1809 | 5 |
| 42" | 1.12 | 1862 | 5 |
| 48" | 1.31 | 2350 | 6 |
| Make | Models (15 Ton / 30,000 - 41,000 lbs.) |
|---|---|
| CASE | 9020B, CX160, CX160B, CX160D |
| CAT | 315C L, 315D L, 316F L (2017), 318F, DX160, M315C, M316C, M318C |
| DOOSAN | DX180LC-5, DX18LC, DX190-W, S175LCV |
| HITACHI | EX150, ZX160LC, ZX160LC-3, ZX160LC-6, ZX180 |
| HYUNDIA | HX160L, HX180, R160LC-9, R160LC-9A, R170W, R180LC-9 |
| JCB | JS160, JS160LC, JS180, JS190 |
| JOHN DEERE | 160C LC, 160D LC, 160G-LC, 180G-LC, 590D, 595D |
| KOBELCO | ED150BR, ED160-3 BLADE RUNNER, ED160-5 BLADE RUNNER, ED190BR, SK140SRLC-5, SK160LC, SK170LC, SK170LC-10 |
| KOMATSU | PC138USLC-11, PC138USLC-8, PC160LC-7, PC160LC-8 |
| LIEBHERR | A314, A316, A914 Litronic, R313, R317, R914 Compact Litronic |
| LINK BELT | 160 X2, 160 X3, 160 X4, 160X |
| LIUGONG | CLG915D, CLG915E |
| MECALAC | 15MC, 15MWR |
| NEW HOLLAND | E175B, EH160LC |
| TEREX | TS180SR, TW150, TW160, TW160SR, TW170, TW190, TW220, TXC140LC-2, TXC180LC-2 |
| VERMEER | CX254 |
| VOLVO | EC160B, EC160C, EC160C-LC, EC160E, EW160C, EW160E, EW180C, EWR150E, EWR170E |
