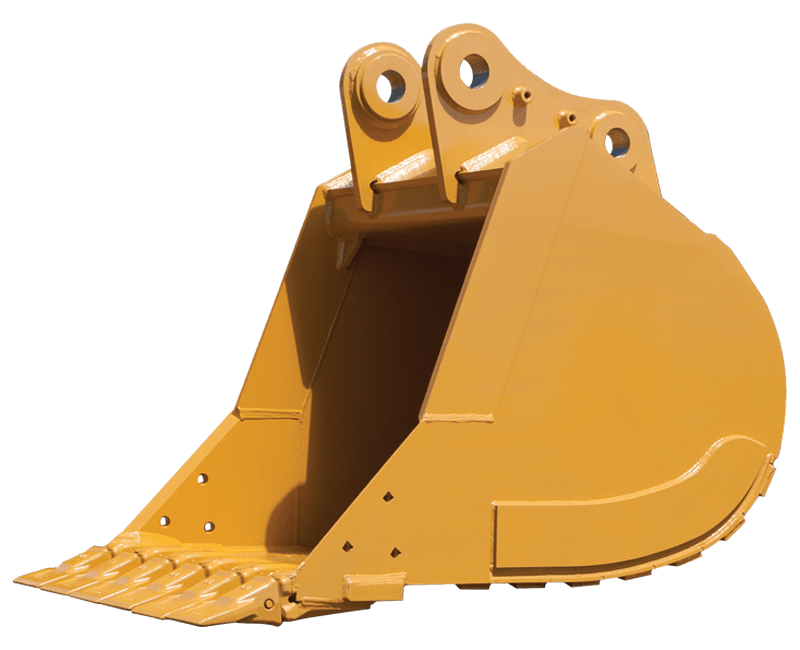

CF200X350 / CF205X350
STANDARD/HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET
Central Fabricator “X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.
Abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.
Available Mounts: OEM Pin On — Two Horizontal Pins
| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 24" | 0.54 | 1658 | 3 |
| 30" | 0.73 | 1760 | 4 |
| 36" | 0.92 | 1859 | 4 |
| 42" | 1.12 | 2029 | 5 |
| 48" | 1.31 | 2197 | 5 |
| 54" | 1.51 | 2365 | 6 |
| 60" | 1.70 | 2478 | 7 |
| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 24" | 0.60 | 1695 | 3 |
| 30" | 0.81 | 1805 | 4 |
| 36" | 1.02 | 1943 | 4 |
| 42" | 1.23 | 2089 | 5 |
| 48" | 1.45 | 2305 | 5 |
| 54" | 1.66 | 2410 | 6 |
| 60" | 1.88 | 2560 | 7 |
| Model | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| HD5-24 | 0.66 | 1205 | 3 |
| HD5-30 | 0.90 | 1370 | 4 |
| HD5-36 | 1.14 | 1535 | 5 |
| HD5-42 | 1.38 | 1690 | 5 |
| HD5-48 | 1.63 | 1845 | 6 |
| Make | Models (20 Ton / 41,000 - 52,000 lbs.) |
|---|---|
| CASE | 9030B, CX210B, CX210D, CX225 MSR |
| CAT | 319D L, 319D LN, 320, 320 GC, 320 UTIL, 320C, 320C L ME, 320CL SLR, 320D L, 320D LRR, 321D LCR, 323, B-link, M322C |
| DOOSAN | DX190W-5, DX210W, DX210W-5, DX210WMH-5, DX225LC, DX235 |
| HITACHI | ZX190W-3, ZX190W-6, ZX200LC, ZX200LC-3, ZX210-6, ZX210LC-6, ZX220W-3, ZX225USLC, ZX225USLC-3, ZX245 |
| HYUNDIA | HW210, HX220L, R210C-7LR, R210LC-7, R210LC-9, R210W-9, R210W-9A, R220LC-9A, R235 |
| JCB | JS220, JS220LC, JS220LR, JS220XD |
| JOHN DEERE | 180CW, 180DW, 190D W, 190G W, 200C LC, 200D, 200D LC, 210CW, 210G LC, 220D W, 225C LCRTS, 225D LC, 245G LC, 690D, 690E |
| KOBELCO | ED195BR, SK210LC, SK210LC-10, SK210LC-LR |
| KOMATSU | PC170LC-11, PC200-7, PC200LC HD, PC200LC-7, PC200LC-8, PC228USLC-3, PC228USLC-8 |
| LIEBHERR | A 918 Compact Litronic, A900C, A900C-ZW, A904C, A914C, A918 Litronic, A924C, R317, R900C, R906-A/C, R916 AC, R918 Litronic, R920 Compact Litronic |
| LINK BELT | 210 X2, 210 X2 Long Front, 210 X3, 210 X4, 210LX, 225MSR |
| LIUGONG | CLG922D |
| NEW HOLLAND | E215B, EH215LC |
| SANY | SY215CLC |
| TEREX | TC210C, TC225LC, TC240LC, TW220, TXC225LC-2 |
| VOLVO | EC210B, EC210B-LC, EC210B-NLC, EC210C, EC210C-LR, ECR235C, EW180C, EW180E, EW210D, EW230C, EX210C |
