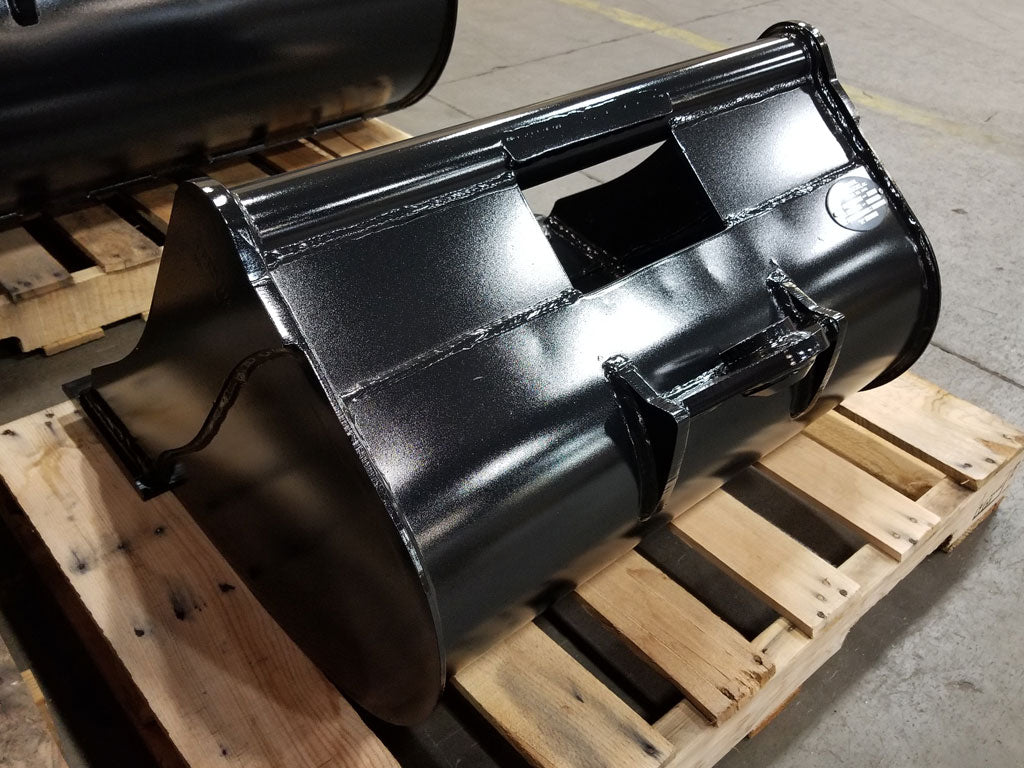

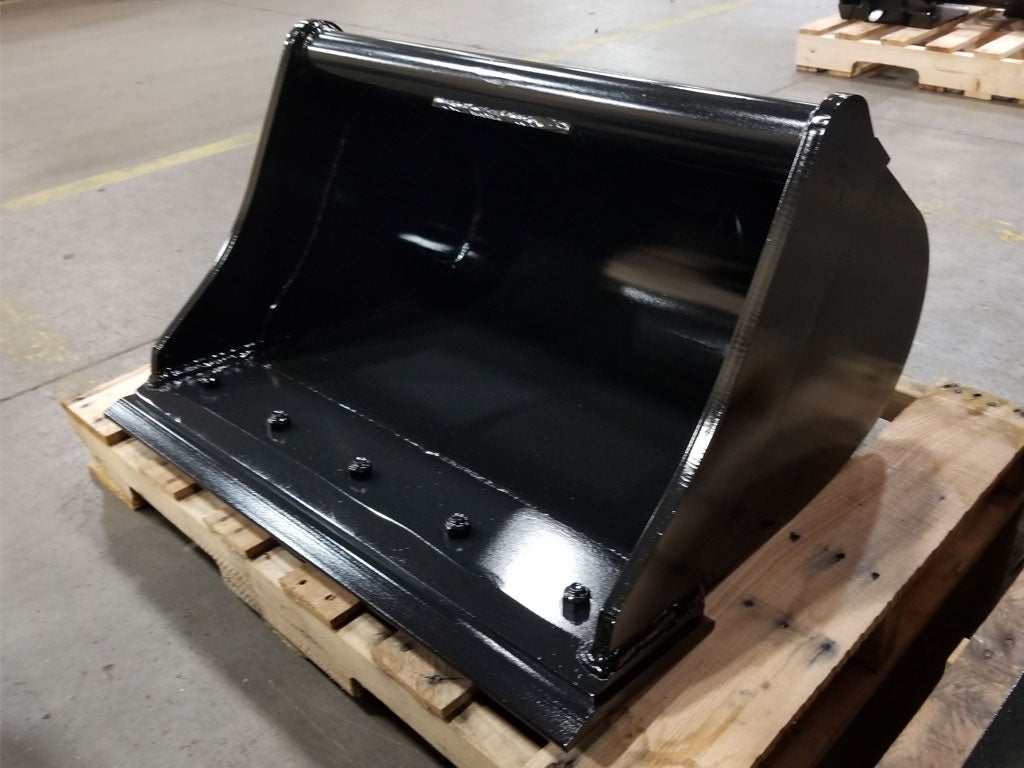

Description: WAIN ROY DITCHING AND GRADING BUCKETS. Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling, and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius, allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.
Available Mounts / Description:

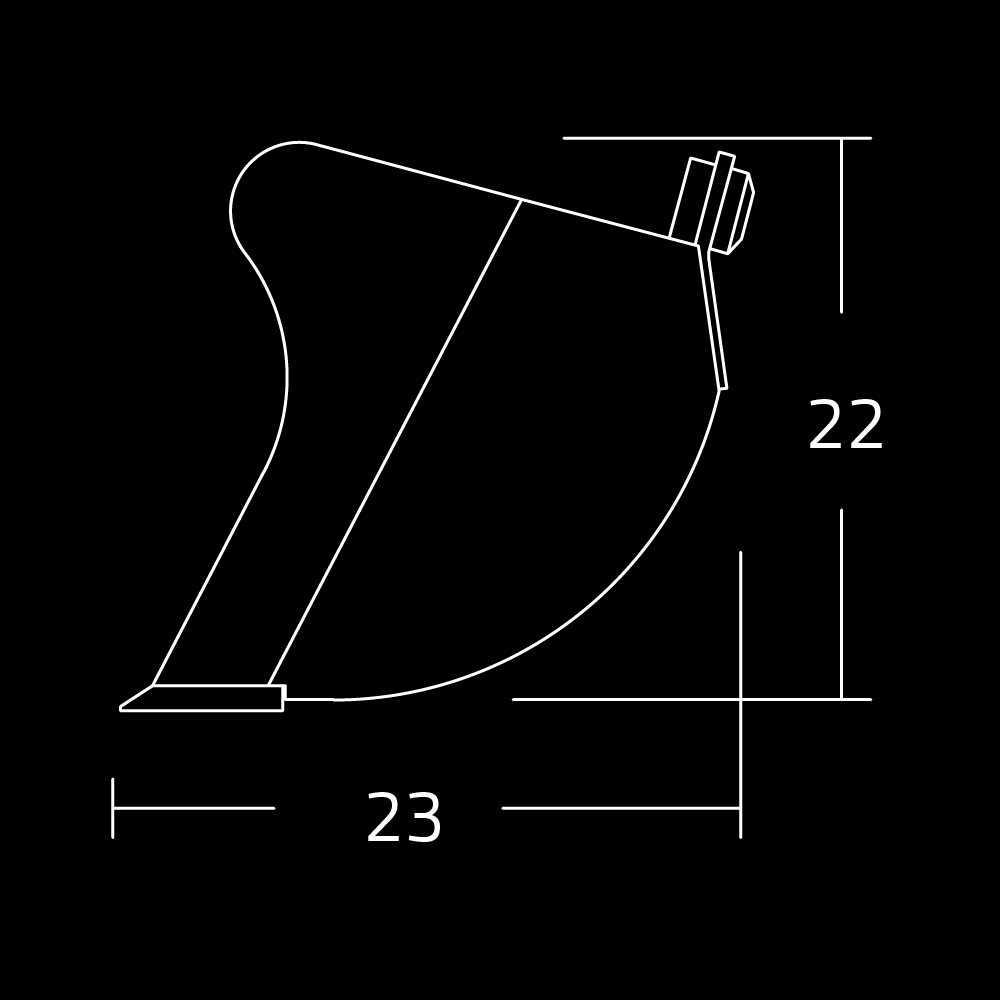

Specifications:
| Type | Capacity (LBS.) | Bucket Height | Bucket Length |
|---|---|---|---|
| 72N-30 | 5.3 / 434 | 21.3" | 25.5" |
| 72N-36 | 7.3 / 486 | 21.3" | 25.5" |
| 72N-42 | 8.8 / 546 | 21.3" | 25.5" |
| 72N-48 | 10.3 / 598 | 21.3" | 25.5" |
| 72N-54 | 11.7 / 658 | 21.3" | 25.5" |
| 72N-60 | 13.2 / 718 | 21.3" | 25.5" |
| 72N-72 | 16.1 / 830 | 21.3" | 25.5" |
| DG1-30 | 6.1 / 305 | 22" | 23" |
| DG1-36 | 8.1 / 352 | 22" | 23" |
| DG1-42 | 9.6 / 400 | 22" | 23" |
| DG1-48 | 11.1 / 448 | 22" | 23" |
| DG1-54 | 12.5 / 528 | 22" | 23" |
| DG1-60 | 14.0 / 587 | 22" | 23" |
| DG1-72 | 17.0 / 704 | 22" | 23" |
Fit:
| Make | Models (Up to 16,000 lbs Backhoe) |
|---|---|
| CASE | 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM |
| CAT | 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT |
| JCB | 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER |
| JOHN DEERE | 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC |
| KOMATSU | W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98 |
| NEW HOLLAND | 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B |
| VOLVO | BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70 |
