Shop the Dirt Buckets for 110,000 - 160,000 lbs. Excavators - WAIN ROY

Description:

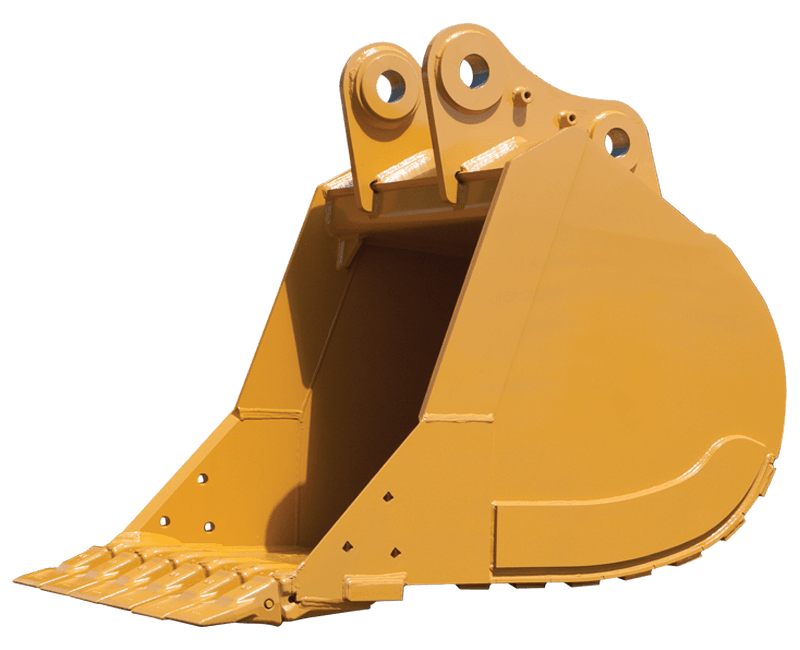

WAIN ROY DIRT BUCKETS CF600X250 / CF605X250. Standard and high-capacity heavy-duty pin-on excavator buckets are designed for easy material flow, excellent operator visibility, and superior strength with reinforced bridges, gussets, and interlocking cutting edge joints. Ideal for demanding conditions, including clay, gravel, compacted soils, and loose rock. Compatible with OEM pin-on mounts.

Features:

  • Standard and high-capacity heavy-duty design

  • Optimized for easy material flow and loading efficiency

  • Reinforced bridges and gussets for superior strength

  • Unique interlocking, welded cutting edge and side cutter design

  • Suitable for tough soils, clay, gravel, and loose rock

  • Compatible with OEM pin-on mounting

Specifications:

STD. CAPACITY EXTRA HD CAPACITY LBS NO. TEETH
36" 1.97 5454 3
42" 2.43 6036 4
48" 2.90 6482 4
54" 3.38 6752 5
60" 3.86 7121 5
66" 4.35 7356 5
72" 4.84 7593 6
78" 5.37 7923 6
80" 5.50 8260 6
84" 5.81 8540 6
96" 6.78 8988 7
HIGH CAPACITY EXTRA HD
36" 2.36 5868 3
42" 2.91 6314 4
48" 3.47 6534 4
54" 4.04 6892 5
60" 4.63 7273 5
66" 5.22 7593 5
72" 5.81 7914 6
78" 6.41 8410 6
80" 6.60 8626 6
84" 7.00 9025 6
96" 8.18 10114 7



Fits:

MAKE MODELS: 60 MT 110,000 - 160,000 LBS
CASE
  • CX700, CX700B, CX750D
CAT
  • 352F (2017), 365C L, 365L II, 374F L (2017)
DOOSAN
  • DX490LC-5, DX530LC-5
HITACHI
  • ZX600LC, ZX600LC BE, ZX650LC-3
HYUNDIA
  • HX520L, R500LC-7A, R520LC-9, R520LC-9A
JOHN DEERE
  • 600C LC, 600C LC ME, 650D LC, 670G LC
KOBELCO
  • SK485LC, SK500LC-10
KOMATSU
  • PC490LC-10 SLF, PC490LC-10MH, PC600LC-7, PC600LC-7SE, PC600LC-8, PC600LC-8 MH, PC650LC-11
LIEBHERR
  • A944C-HD, R 9100, R9150, R954C, R956 Litronic, R960 SME Litronic, R964C
LINK-BELT
  • 470 X3, 490 X4, 700 X2, 750 X4
TEREX
  • TXC520LC-2
VOLVO
  • EC700C
