Vendor: WAIN ROY
SKU: CF800X250-36
Availability: In stock
$25,529.99
$28,082.99
$25,529.99
Style: Standard Capacity Extra Heavy-Duty
Size: 36"
Subtotal: $25,529.99

Free Shipping

This product is eligible for Free Shipping!
Dirt Buckets for 160,000 - 200,000 lbs. Excavators - WAIN ROY

Dirt Buckets for 160,000 - 200,000 lbs. Excavators - WAIN ROY

$28,082.99 $25,529.99
Dirt Buckets for 160,000 - 200,000 lbs. Excavators - WAIN ROY
Dirt Buckets for 12,500-20,000 lbs. Excavators - WAIN ROY
Dirt Buckets for 160,000 - 200,000 lbs. Excavators - WAIN ROY
Dirt Buckets for 160,000 - 200,000 lbs. Excavators - WAIN ROY

Dirt Buckets for 160,000 - 200,000 lbs. Excavators - WAIN ROY

$28,082.99 $25,529.99
Style: Standard Capacity Extra Heavy-Duty
Size: 36"
Description

Shop the Wheel Loader Buckets for JRB Style Coupler - WAIN ROY

Description:

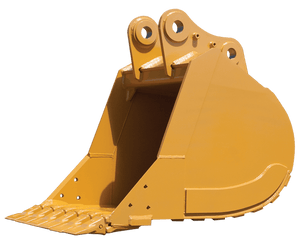

WAIN ROY DIRT BUCKETS CF800X250 / 4.5BX
STANDARD / HIGH CAPACITY HEAVY DUTY PIN-ON EXCAVATOR BUCKET
“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

For use in more demanding excavating conditions with high levels of clay, gravel, compacted soils and loose rock.

Specifications:

STD. CAPACITY EXTRA HD

OEM Pin On Capacity Lbs No. Teeth
36" 2.36 5668 3
42" 2.91 6078 4
48" 3.46 6345 4
54" 4.03 6620 5
60" 4.60 7034 5
66" 5.18 7160 5
72" 5.76 7368 6
78" 6.35 8557 6
80" 6.54 8857 6
84" 6.93 9210 6
96" 8.10 9830 7

HIGH CAPACITY EXTRA HD

OEM Pin On Capacity Lbs No. Teeth
36" 2.74 6100 3
42" 3.34 6552 4
48" 3.95 6869 4
54" 4.57 7491 5
60" 5.20 7843 5
66" 5.84 8195 5
72" 6.49 8339 6
78" 7.12 9610 6
80" 7.36 9954 6

Fits:

Make Models (80 MT 160,000 - 200,000 LBS)
CASE CX800, CX800B
CAT 375L, 385C FS, 385C L, 385C LR, 390F L (2017)
HITACHI ZX670LC-6, ZX800, ZX800ME, ZX850LC-3
HYUNDIA R800LC7A
JOHN DEERE 800C, 800C ME, 850D LC, 870G LC
KOBELCO SK850LC-9
KOMATSU PC750LC-7, PC750SE-7, PC800LC-8, PC800LC-8 MH
LIEBHERR A954C-HD, R950 Demolition Litronic, R954C Abbruch Litronic, R964C, R966 Litronic, R970 SME Litronic, R974C
LINK-BELT 700LX, 700LX-ME, 800 X2, 800LX, 800LX-ME
VOLVO EC700B-icme, EC700B-LC, EC750E
