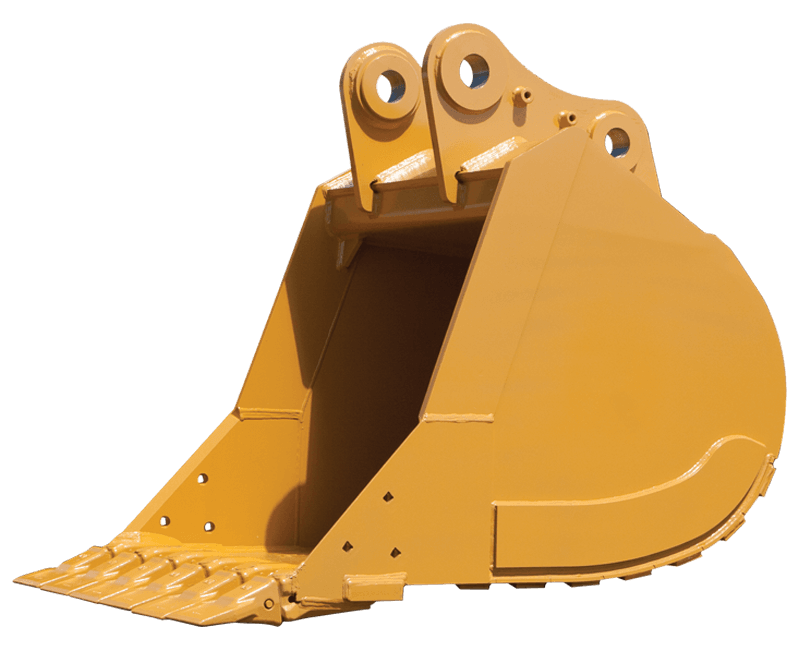

WAIN ROY SEVERE-DUTY ROCK BUCKETS
CF800X350 / 4.5BXES
STANDARD/HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET
“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low-profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets offer strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.
Designed for abrasive and high-impact applications in shot rock, coral, stratified materials, caliche, and highly compacted material.
Available Mounts: OEM Pin On — Two Horizontal Pins
| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 36" | 2.36 | 7175 | 3 |
| 42" | 2.91 | 7691 | 4 |
| 48" | 3.46 | 8830 | 4 |
| 54" | 4.03 | 8774 | 5 |
| 60" | 4.60 | 9405 | 5 |
| 66" | 5.18 | 10033 | 5 |
| 72" | 5.76 | 10662 | 6 |
| 78" | 6.35 | 11275 | 6 |
| 80" | 6.54 | 11419 | 6 |
| 84" | 6.93 | 11914 | 7 |
| 96" | 8.10 | 13170 | 8 |
| Width (in) | Capacity (cu yd) | Weight (lbs) | No. of Teeth |
|---|---|---|---|
| 36" | 2.74 | 7607 | 3 |
| 42" | 3.34 | 8165 | 4 |
| 48" | 3.95 | 8754 | 4 |
| 54" | 4.57 | 9645 | 5 |
| 60" | 5.20 | 10214 | 5 |
| 72" | 6.49 | 11633 | 6 |
| 80" | 7.36 | 12416 | 6 |
| Make | Models (80 MT / 160,000 – 200,000 lbs.) |
|---|---|
| CASE | CX800, CX800B |
| CAT | 375L, 385C FS, 385C L, 385C LR, 390F L (2017) |
| HITACHI | ZX670LC-6, ZX800, ZX800ME, ZX850LC-3 |
| HYUNDIA | R800LC7A |
| JOHN DEERE | 800C, 800C ME, 850D LC, 870G LC |
| KOBELCO | SK850LC-9 |
| KOMATSU | PC750LC-7, PC750SE-7, PC800LC-8, PC800LC-8 MH |
| LIEBHERR | A954C-HD, R950 Demolition Litronic, R954C Abbruch Litronic, R964C, R966 Litronic, R970 SME Litronic, R974C |
| LINK-BELT | 700LX, 700LX-ME, 800 X2, 800LX, 800LX-ME |
| VOLVO | EC700B-icme, EC700B-LC, EC750E |
