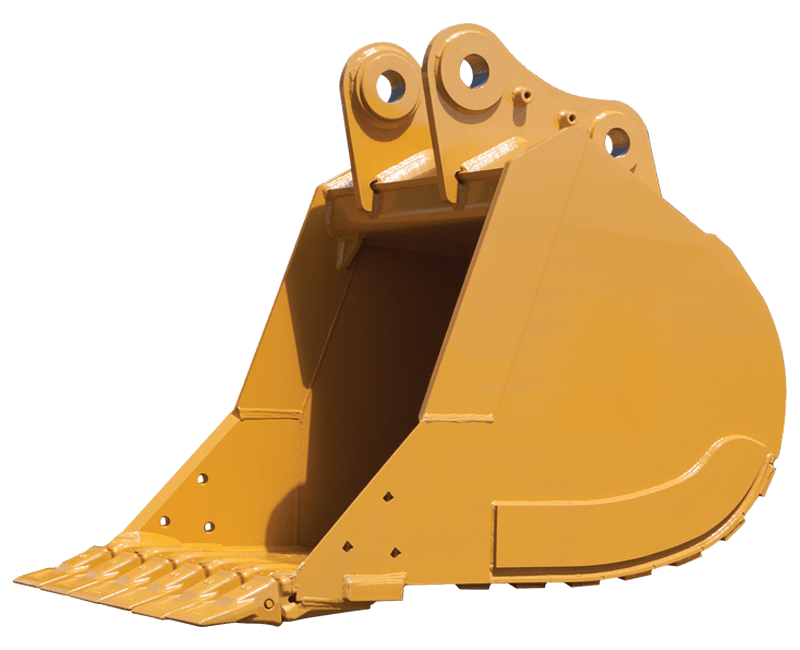

CF600X350 / CF605X350 - STANDARD/HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET. “X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low-profile bridge design allows excellent operator visibility. Internal struts and the backside of the ears attached to the double-thickness bridge/moldboard provide superior strength and rigidity. Corner gussets reinforce the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.
Designed for abrasive and high-impact applications in shot rock, coral, stratified materials, caliche, and highly compacted material.
| STD. CAPACITY SEVERE DUTY - OEM PIN ON | |||
|---|---|---|---|
| Bucket Size | Capacity (cu. yd.) | Weight (lbs.) | No. Teeth |
| 36" | 1.97 | 5985 | 3 |
| 42" | 2.43 | 6440 | 4 |
| 48" | 2.90 | 6710 | 4 |
| 54" | 3.38 | 6980 | 5 |
| 60" | 3.86 | 7390 | 5 |
| 66" | 4.35 | 7595 | 5 |
| 72" | 4.84 | 8690 | 6 |
| 78" | 5.37 | 9195 | 6 |
| 80" | 5.50 | 9460 | 6 |
| 84" | 5.81 | 9624 | 6 |
| 96" | 6.78 | 10160 | 7 |
| HIGH CAPACITY SEVERE DUTY - OEM PIN ON | |||
| Bucket Size | Capacity (cu. yd.) | Weight (lbs.) | No. Teeth |
| 36" | 2.36 | 6600 | 3 |
| 42" | 2.91 | 7150 | 4 |
| 48" | 3.47 | 7480 | 4 |
| 54" | 4.04 | 7810 | 5 |
| 60" | 4.63 | 8360 | 5 |
| 66" | 5.22 | 8910 | 5 |
| 72" | 5.81 | 9435 | 6 |
| 78" | 6.41 | 9784 | 6 |
| 80" | 6.60 | 9991 | 6 |
| 84" | 7.00 | 10125 | 6 |
| 96" | 8.18 | 10996 | 7 |
| Make | Models (60 MT / 110,000 - 160,000 lbs.) |
|---|---|
| CASE | CX700, CX700B, CX750D |
| CAT | 352F (2017), 365C L, 365L II, 374F L (2017) |
| DOOSAN | DX490LC-5, DX530LC-5 |
| HITACHI | ZX600LC, ZX600LC BE, ZX650LC-3 |
| HYUNDAI | HX520L, R500LC-7A, R520LC-9, R520LC-9A |
| JOHN DEERE | 600C LC, 600C LC ME, 650D LC, 670G LC |
| KOBELCO | SK485LC, SK500LC-10 |
| KOMATSU | PC490LC-10 SLF, PC490LC-10MH, PC600LC-7, PC600LC-7SE, PC600LC-8, PC600LC-8 MH, PC650LC-11 |
| LIEBHERR | A944C-HD, R 9100, R9150, R954C, R956 Litronic, R960 SME Litronic, R964C |
| LINK-BELT | 470 X3, 490 X4, 700 X2, 750 X4 |
| TEREX | TXC520LC-2 |
| VOLVO | EC700C |
