WAIN ROY HIGH CAPACITY DIRT BUCKETS

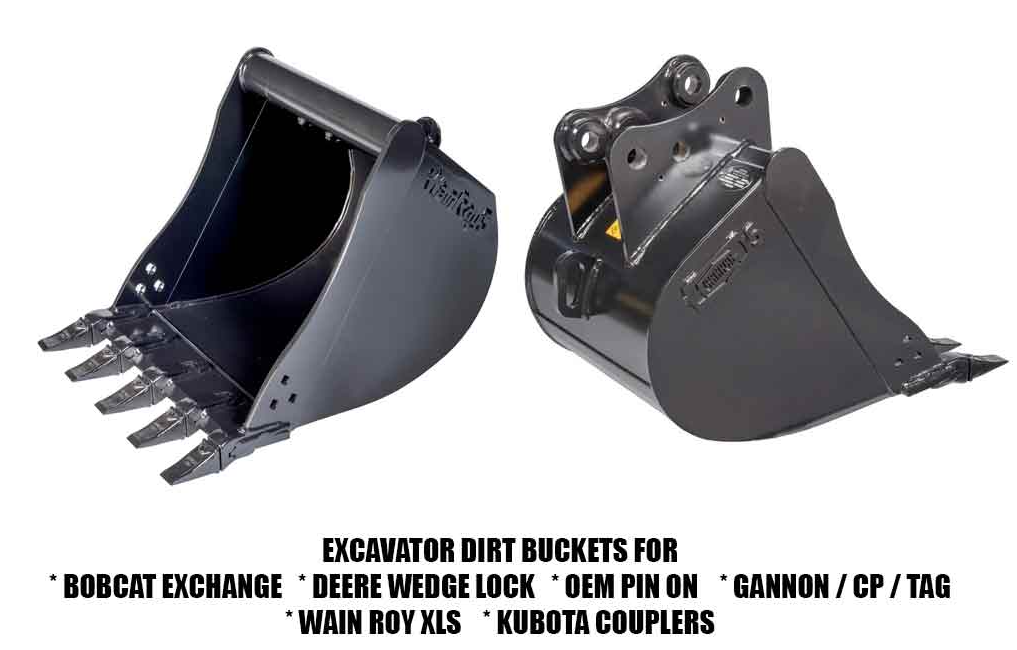

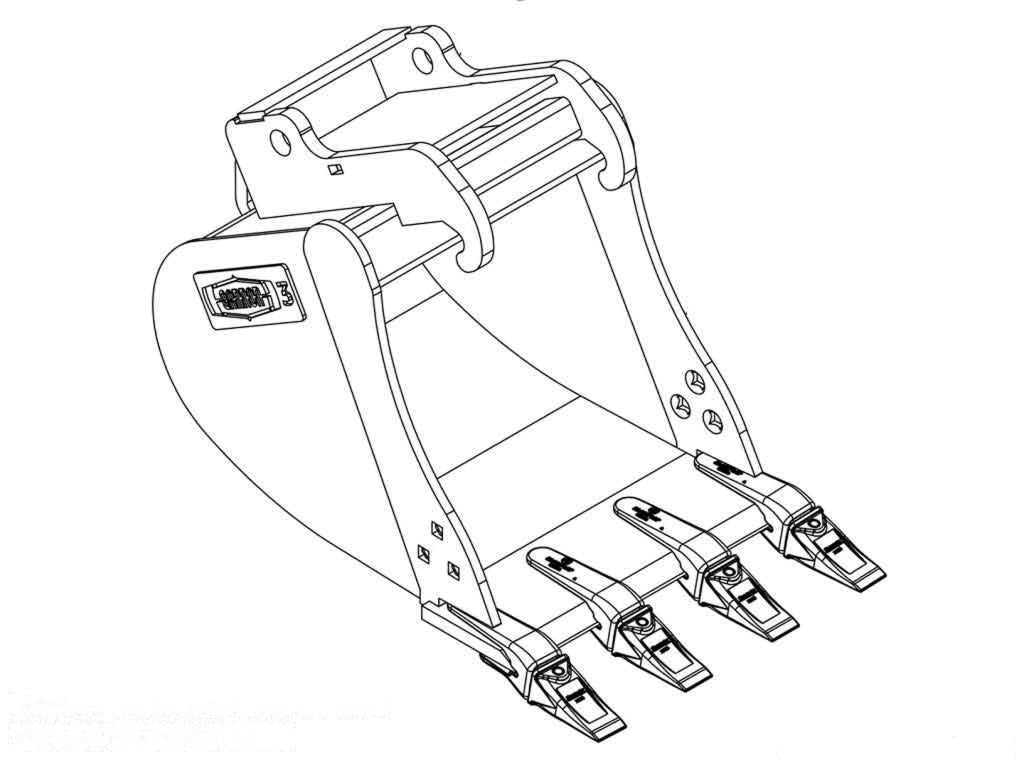

Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option.
AVAILABLE MOUNTS
| AVAILABLE MOUNTS | DESCRIPTION |
|---|---|
| OEM PIN ON | TWO HORIZONTAL PINS |
| WAIN ROY XLS | HOOK WITH VERTICAL PIN |
| GANNON ELIMINATOR / TAG / CP / WR ORIGINAL | HOOK WITH VERTICAL PIN |
| HIGH CAPACITY - OEM PIN ON | |||||
|---|---|---|---|---|---|
| Model | Capacity (CU. FT.) | Weight (LBS) | No. Teeth | Height | Length |
| 32-12 | 5.6 | 475 | 3 | 34.5" | 42.9" |
| 32-16 | 8.4 | 514 | 3 | 41.2" | 43.5" |
| 32-18 | 9.4 | 596 | 3 | 41.2" | 43.5" |
| 32-24 | 12.4 | 685 | 4 | 41.2" | 43.5" |
| 32-30 | 16.5 | 749 | 5 | 41.2" | 43.5" |
| 32-36 | 20.7 | 890 | 6 | 41.2" | 43.5" |
| HIGH CAPACITY SEVERE-DUTY - OEM PIN ON | |||||
|---|---|---|---|---|---|
| Model | Capacity (CU. FT.) | Weight (LBS) | No. Teeth | Height | Length |
| 32G-12 | 5.6 | 550 | 3 | 34.5" | 43.2" |
| 32G-16 | 8.4 | 589 | 3 | 34.5" | 43.2" |
| 32G-18 | 9.4 | 671 | 3 | 34.5" | 43.2" |
| 32G-24 | 12.4 | 760 | 4 | 34.5" | 43.2" |
| 32G-30 | 16.5 | 824 | 5 | 34.5" | 43.2" |
| 32G-36 | 20.7 | 965 | 6 | 34.5" | 43.2" |
| HIGH CAPACITY SEVERE DUTY - QC, WAIN ROY XLS, ORIGINAL, GANNON, TAG, CP | |||||
|---|---|---|---|---|---|
| Model | Capacity (CU. FT.) | Weight (LBS) | No. Teeth | Height | Length |
| 97W-16 | 6.8 | 360 | 4 | 32.6" | 42.1" |
| 97W-18 | 8.0 | 390 | 4 | 32.6" | 42.1" |
| 97W-24 | 11.6 | 470 | 5 | 32.6" | 42.1" |
| 97W-30 | 15.3 | 560 | 6 | 32.6" | 42.1" |
| 97W-36 | 79.2 | 671 | 7 | 32.6" | 42.1" |
| MAKE | MODELS (Over 16,000 lbs) |
|---|---|
| CAT | 446B, 446C, 446D, 450E, 450F |
| JCB | 3C 15, 3CX 17, 3CX-15, 3CX-15 SUPER, 4CX 14, 4CX 15, 4CX 17, 4CX-14 SUPER, 4CX-15 SUPER, DYMAX RAIL SYSTEM |
| JOHN DEERE | 710J Backhoe, 710K Backhoe, 710L Backhoe |
| MECALAC | TLB830, TLB840R, TLB850, TLB870, TLB890, TLB990 |
