Vendor: WAIN ROY
SKU: HC1-12
Availability: In stock
$1,920.99
$2,112.99
$1,920.99
STYLE: HIGH CAPACITY
TYPE: OEM PIN ON
SIZE: 12”
Subtotal: $1,920.99

Free Shipping

This product is eligible for Free Shipping!
High Capacity Dirt Buckets for 12500-20000 lbs. Excavators - WAIN ROY

High Capacity Dirt Buckets for 12500-20000 lbs. Excavators - WAIN ROY

$2,112.99 $1,920.99
High Capacity Dirt Buckets for 12500-20000 lbs. Excavators - WAIN ROY
High Capacity Dirt Buckets for 12500-20000 lbs. Excavators - WAIN ROY

High Capacity Dirt Buckets for 12500-20000 lbs. Excavators - WAIN ROY

$2,112.99 $1,920.99
STYLE: HIGH CAPACITY
TYPE: OEM PIN ON
SIZE: 12”
Description

Shop the High Capacity Dirt Buckets for 12500-20000 lbs. Excavators - WAIN ROY

Description:

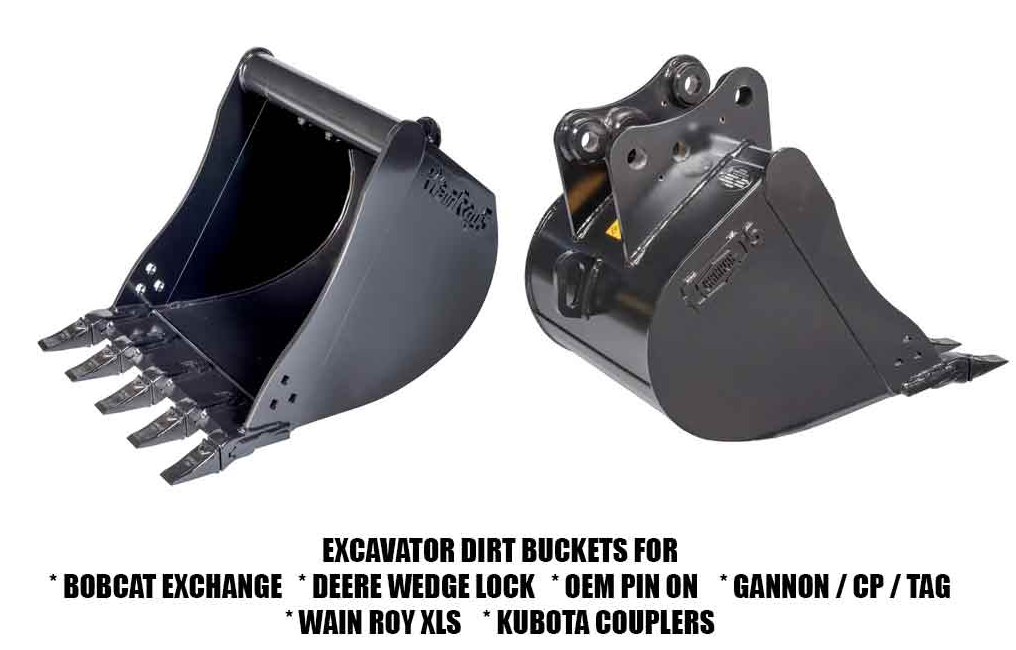

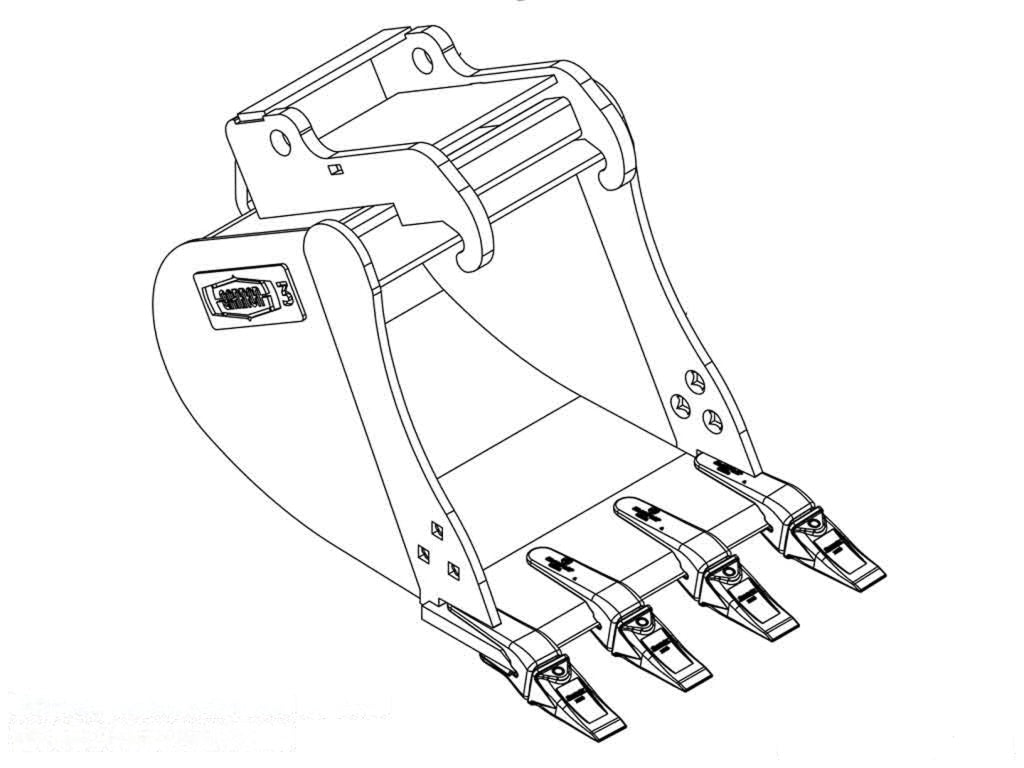

Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option.

AVAILABLE MOUNTS

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WEDGE LOCK WEDGE SECURED AT REAR
BOBCAT EXCHANGE HOOK WITH HORIZONTAL PIN
KUBOTA TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN
GANNON ELIMINATOR / TAG / CP SMALL HOOK WITH VERTICAL PIN

Specifications:

OEM PIN ON / WEDGE LOCK / BOBCAT EXCHANGE / KUBOTA
Bucket Width Capacity (CU. FT.) Weight (LBS) Bucket Opening Bucket Length
12" 4.2 300 41.2" 43.5"
16" 5.6 319 41.2" 43.5"
18" 6.5 360 41.2" 43.5"
24" 9.5 418 41.2" 43.5"
30" 12.5 445 41.2" 43.5"
36" 15.6 527 41.2" 43.5"


WAIN ROY XLS / GANNON ELIMINATOR
Bucket Width Capacity (CU. FT.) Weight (LBS) Bucket Opening Bucket Length
12" 4.2 262 44.1" 42.2"
16" 5.6 289 44.1" 42.2"
18" 6.5 313 44.1" 42.2"
24" 9.5 371 44.1" 42.2"
30" 12.5 397 44.1" 42.2"
36" 15.6 479 44.1" 42.2"

Fits:

MAKE MODELS (8 TON, 12500-20000 LB EXCAVATOR)
BOBCAT 442, 442S, E85
CASE CX75C SR, CX75SR, CX80C
CAT 307D, 307EX, 308D CR, 308D CR-SB
COYOTE DX80, DX85R-3
DOOSAN DX80, DX85R-3, S075-V, S70-V, S75-V
DITCH WITCH -
GEHL / MUSTANG Z80 GEN: 2 | 800Z NXT2
HITACHI ZX75US-5, ZX85USB-5
HYUNDIA R80CR-9, R80CR-9A
IHI KATO 70Z
JCB 67C-1, 86C-1, 85Z
JOHN DEERE 70, 70D, 75C, 80, 80C, 85, 190E
KOBELCO 70SR, 80CS
KOMATSU PC78MR-6, PC78US-6, PC78US-8, PC78US-10, PC78UU-6
KUBOTA KX057-4
LIUGONG CLG906D
MECALAC 6MCR, 8MCR, 8MCR RR
NEW HOLLAND EH70, EH80
SANY SY75C-TIER 2, SY75C-TIER 3, SY75C-TIER 3 (EU), SY75C-TIER 3 (US), SY75C-TIER 4F, SY80C-9S
TAKEUCHI TB68S, TB070
TEREX TC75 (HR32)
THOMAS T75
VERMEER -
VOLVO ERC88
YANMAR B7 5A, SV100-2A, Vi08
