Description
5-yr gearbox warranty
3-yr motor warranty
Lifetime shaft pull-out cover
Overview

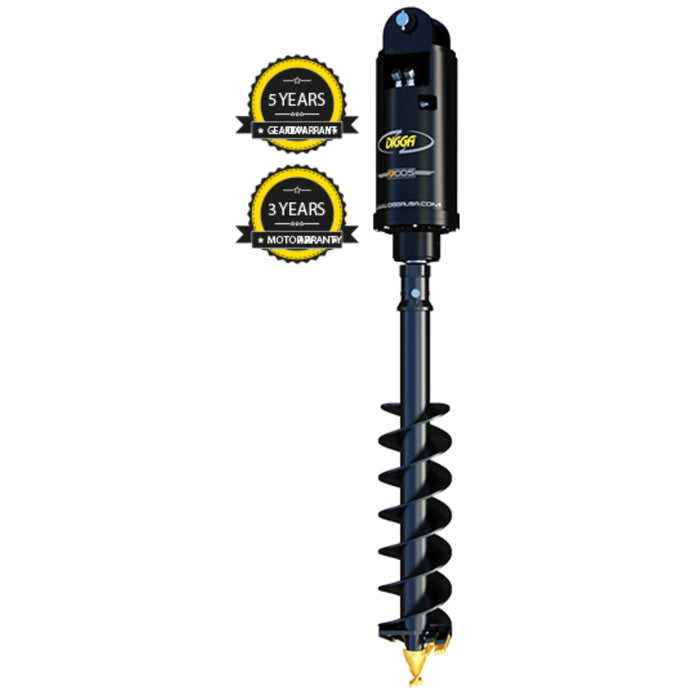

This 9DDS excavator auger attachment is the entry point to Digga's 9 to 12 tonne range and the drive most 20,000 lb machines end up on: 7,761 ft-lbs at 3,000 PSI, a 2.5 inch hex shaft, and an 18 GPM floor that suits an auxiliary circuit of ordinary size. It is sold here as a complete excavator auger attachment: the 9DDS drive, the mount for your machine's pin size, and the 100mm linkage if you need one. Drive Only is the first choice on this page for anyone who already has the mount and linkage on the boom.
Key Features of the Digga 9DDS Auger Drive
- Torque 7,761 ft-lbs at 3,000 PSI, as published by Digga for the 9DDS
- Max torque 9,036 ft-lbs at 3,500 PSI
- Recommended flow 18-48 GPM — 18 GPM is the floor for rated torque
- 2.5" Hex output shaft, taking A8 earth auger bits and RC8 rock and earth combo bits
- Drills to 48" in earth and 48" in clay or shale, subject to ground conditions
- Digga-specified motor with an integrated pressure relief valve — no bulky external valve block and fewer joints to leak
- Rated to 60 HP; do not exceed 3,500 psi at 29 gpm or 55 gpm at 1,800 psi
- The gearbox goes down the hole, so drilling depth is not lost to drive height
- HALO Alignment Kit optional — a ring of red and green lights in the drive hood that shows the operator when the auger is plumb
- 2-piece shaft design carries side load without putting it through the bearings
- 5 year gearbox and 3 year motor warranty for drilling use, plus lifetime shaft pull-out cover
Digga 9DDS Specifications
| Specification | Value |
|---|---|
| Model | 9DDS |
| Drive type | Single speed |
| Max speed (RPM) | 57 |
| Torque at 3,000 PSI | 7,761 ft-lbs |
| Max torque at 3,500 PSI | 9,036 ft-lbs |
| Recommended flow | 18-48 GPM |
| Max pressure — do not exceed | 3,500 psi at 29 gpm |
| Max flow — do not exceed | 55 gpm at 1,800 psi |
| Max horsepower | 60 |
| Pressure relief valve | Included |
| Standard output shaft | 2.5" Hex |
| Recommended auger bits | A8 / RC8 |
| Max drilling diameter — earth | 48" |
| Max drilling diameter — clay / shale | 48" |
| Case drain | Not required |
| HALO alignment | Optional |
| Carrier weight range | 9 - 12T (19,800 - 26,500 lbs) |
Figures as published by Digga for the 9DDS. Maximum drilling diameter depends on ground conditions and is a guide rather than a rating.
Choosing the Mount for Your 9DDS
The 9DDS carries five mount options plus Drive Only. Pick by the pin size on your excavator's dipper, then by whether you want the drive to hang free or be held at an angle:
| Mount option | Pin range | How the drive is carried |
|---|---|---|
| 30-40mm Single Pin Mount | 30-40 mm | One pin through the mount; the drive hangs and finds vertical under its own weight |
| 45-55mm Single Pin Mount | 45-55 mm | Single pin in the larger pin range, same free-hanging behaviour |
| 45-50mm Two Pin Mount | 45-50 mm | Two pins fix the drive to the dipper so the boom sets its angle |
| 55-70mm Two Pin Mount | 55-70 mm | Two pin mount for the mid pin range |
| 75-100mm Two Pin Mount | 75-100 mm | Two pin mount for the largest pin range |
| Drive Only | — | No mount supplied — for machines that already have one |
A single pin lets the drive hang and find vertical on its own, which is what you want for plumb holes. Two pins fix it to the dipper so the boom controls the angle, which is what you want for angled holes and slopes. Pin diameter is confirmed against your machine make and model before the package ships.
Which Linkage Do You Need?
Digga sets linkage size by the drive, not the machine: the 100mm linkage (HI-004242K) is the one the 9DDS takes. Choose No Linkage - I already have one if the boom already has one, or Include 100mm Linkage - required if you do not have one to have it supplied. The 75mm and 130mm sizes belong to smaller drives and the SD range; all three are listed under Auger Drive Mount Linkages.
Cradle Hitch and HALO Alignment Kit
- No Options — drive and mount as selected.
- Cradle Hitch — the drive is carried in a cradle rather than swinging on the pin, steadying it while collaring and while tracking between holes.
- HALO Alignment Kit — the 9DDS supplied with HALO built into the hood at the factory, reading plumb to ±0.25 degrees per Digga. Not a bolt-on; the retrofit version is a separate HALO Retrofit Kit.
- Cradle Hitch + HALO Alignment Kit — both together.
What Comes in the 9DDS Package
- Digga 9DDS auger drive
- Excavator mount in the pin size you select, unless you choose Drive Only
- 100mm linkage where the linkage option is selected
- Cradle hitch and HALO where selected
- Not included: auger bits, hydraulic hoses and quick disconnects
Where the 9DDS Sits in Digga's Range
The 9DDS is the smallest drive Digga builds for this end of the excavator range. The 12DDS above it is another 28 percent up and asks 22 GPM rather than 18, on the same 48" earth ceiling.
Which Machines Fit the 9DDS?
Digga builds the 9DDS for excavators of 9 - 12T, roughly 19,800 - 26,500 lbs. Within that class, fitment comes down to hydraulic flow and the pin size on your dipper:
| Fitment factor | Requirement |
|---|---|
| Machine class | Excavator, 9 - 12T (19,800 - 26,500 lbs) |
| Auxiliary hydraulic flow | 18-48 GPM; 18 GPM minimum for rated torque |
| Circuit pressure | Rated for 3,500 PSI machines; do not exceed 3,500 psi at 29 gpm |
| Mount | Single or two pin, included unless Drive Only is selected |
| Pin diameter | Confirmed against your machine before the package ships |
| Linkage | 100mm (HI-004242K), included if selected |
| Case drain | Not required |
| Electrical | 12V for HALO if selected |
| Auger bits | Sold separately — A8 / RC8 with a 2.5" hex hub |
| Hoses | Sold separately so length matches your boom |
Everything needed to confirm fitment is on this page — add the 9DDS package to your cart to see delivered pricing for your address. Enter your machine make and model with the order and we check the mount and pin size before it ships.
Drilling or anchoring? The 5 year gearbox and 3 year motor warranty covers drilling. Used for screw anchoring without Digga's Energy Control Valve, cover drops to 2 years and 1 year, and only up to 12,000 ft-lbs. The ECV is specified with the drive, not added later — tell us before ordering if anchoring is the job.
Digga 9DDS Auger Package Questions, Answered
Do I need the linkage with my 9DDS?
Only if your machine does not already have one. The linkage is the pinned connector between the drive and the mount, and Digga specifies the 100mm HI-004242K for 9K through 30K drives. If you are moving a mount over from another drive, check its linkage size first — a 75mm linkage from a 1DSS through 7DDT drive will not fit the 9DDS.
Single pin or two pin?
A single pin lets the drive hang and find vertical on its own, which suits plumb holes on reasonably level ground. Two pins fix the drive to the dipper so the boom sets the angle, which suits angled holes, work across a slope, and holding the drive steady while it collars. Match the pin range to the pins on your dipper.
What auger bits fit the 9DDS?
The 9DDS runs a 2.5" Hex output shaft, so it takes A8 earth auger bits and RC8 rock and earth combo bits. Digga's published ceiling for this drive is 48" in earth and 48" in clay or shale, though ground conditions decide what is sensible on the day.
Is the 9DDS a two-speed drive?
No, it is single speed. Digga's two-speed drives in this class shift between a high-torque and a high-speed range while drilling, need a case drain return, and cost considerably more. Single speed suits most drilling; the shift earns its keep on large diameters where clearing spoil takes the time.
What is the Cradle Hitch for?
It carries the drive in a cradle instead of letting it swing on the pin. That steadies the drive while it collars a hole and while the machine tracks between holes, and it is the usual choice for production drilling where the drive is picked up and set down all day.
Is the HALO Alignment Kit a bolt-on?
No, despite the name. Choosing it supplies the drive with HALO built into the hood at the factory, with the extension cable and in-cab 12V plug. The lights sit on the drive next to the hole, so the operator corrects from the seat instead of taking direction from someone standing beside the auger.
Can I use this drive for helical piles or screw anchors?
Mechanically yes, but read the warranty note above first. Digga requires its Energy Control Valve for anchoring work, because the valve protects the motor from pile kickback, and the ECV must be specified with the drive rather than fitted afterwards.
How is shipping calculated?
Shipping is calculated at checkout from the weight of your order and your delivery address, and the charge is shown before you complete the order. These drives ship by LTL freight on a pallet.
On delivery: inspect the crate before you sign. Note any damage on the bill of lading at the time of delivery, photograph it, and email support@eskidsteer.com — a clean signature makes a carrier claim much harder to win.
