Ideal drives
9DDS – 12DDS
Ideal speed — earth
55–65 RPM
Model
RC8
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
Made in USA Teeth & pilot included
Overview

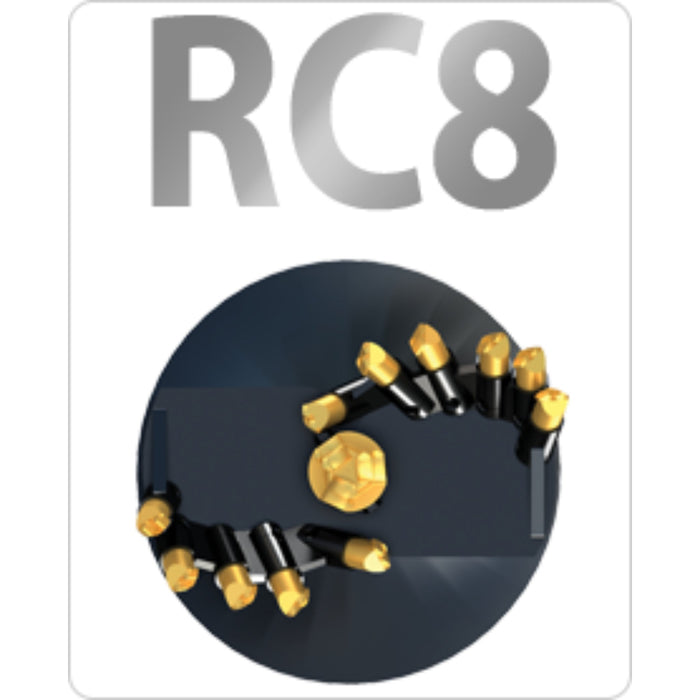

The Digga RC8 is an excavator auger bit for combination rock and earth drilling, supplied here on a 3" hex hub for the larger excavator drives. It runs the same B7 taper-tooth head as the RC6 but on a heavier body with thicker flighting, which is what lets it take the torque a 13–16 tonne machine puts through it. Thicker flights are the difference between a bit that survives a season and one that folds.
Key Features of the Digga RC8 Auger Bit
- The RC8 ships on a 3" hex hub on this listing — the hub is what decides which Digga drives it fits
- 12 diameters available, from 9" to 48"
- Drilling conditions: Combination rock / earth
- Overall length: 60"
- Teeth: TTD
- Pilot: PH-3
- Max diameter: 70"
- Pin, clip, teeth and pilot included — no separate wear-part order needed to drill
- TRU-CUT geometry — the auger cuts its nominal diameter rather than an oversized hole you backfill with concrete
Why This RC8 Bit Earns Its Place
- Thicker flighting than the RC6 — the head is the same, the body is not, and at this torque the body is what fails first.
- Combination cutting from one head, covering earth through to medium rock without a bit change.
- Sized for 9DDS through 16DDS drives, matching the excavator classes those drives serve.
- Replaceable teeth and pilot keep the running cost in wear parts rather than in whole bits.
Digga RC8 Auger Bit Specifications
| Specification | Value |
|---|---|
| Model | RC8 |
| Drilling conditions | Combination rock / earth |
| Hub (Digga standard) | 2.5" Hex |
| Hub (optional) | 3" Hex |
| Ideal drives | 9DDS – 12DDS |
| Ideal speed — earth | 55–65 RPM |
| Ideal speed — clay | 45–55 RPM |
| Ideal speed — shale / fracturable rock | 25–45 RPM |
| Ideal speed — heavy rock | 10–25 RPM |
| Overall length | 60" |
| Pipe diameter | 3" - 6.5" |
| Flight thickness (carry) | 3/8" |
| Teeth | TTD |
| Pilot | PH-3 |
| Max diameter | 70" |
| Carrier weight range | 10-15T (22,000-33,000 lbs) |
Every figure above comes from Digga’s published data sheet for the RC8. Teeth and pilot are consumable items and are replaceable individually.
Choosing Your RC8
The RC8 is ordered by the choices below; the head and body are the same in every one.
Diameter
- 9"
- 10"
- 12"
- 14"
- 16"
- 18"
- 20"
- 24"
- 30"
- 36"
- 40"
- 48"
Hub
- 3" Hex Hub
Diameter guidance: the RC8 spans 9" to 48". On a 13–16 tonne excavator the larger sizes are usable, but check the maximum auger diameter your drive publishes before you order the biggest heads.
Which Digga Drives Take the RC8?
Supplied on a 3" hex hub for the 13DDS and 16DDS class. Digga lists the RC8 as suiting 9DDS through 16DDS drives; the smaller two use a 2.5" shaft, so check your drive’s output before you order. XO25 and XT25 extensions add depth.
What Machine Do I Need?
The RC8 is an auger bit, not a machine attachment — it fits the auger drive, and the machine underneath is whatever runs that drive. It needs a Digga drive with a 3" hex output shaft — the 13DDS, 16DDS, 13DDT or 16DDT. The 9DDS and 12DDS use 2.5" hex and would take an adapter.
Add your drive model at checkout and we check the hub matches before the order ships. Stay within the maximum drilling diameter published for your drive and machine class.
Digga RC8 Auger Bit Questions, Answered
Will the RC8 fit my 9DDS?
Not directly. The 9DDS uses a 2.5" hex output shaft and this listing supplies the 3" hex hub, so you would need a 2.5" female to 3" male adapter. Digga stocks those, though the adapter then becomes the limiting connection in the assembly.
Are the teeth and pilot included?
Yes. Every Digga auger bit ships with pin, clip, teeth and pilot fitted. All of those are consumable and replaceable individually, so a worn head is a wear-part order rather than a new bit.
Does a 12" auger really drill a 12" hole?
That is what Digga’s TRU-CUT head geometry is for. Many augers cut oversize, which means every hole gets backfilled with more concrete than the design called for. Holding the nominal diameter is a direct materials saving across a pier job.
How do I drill deeper than the bit length?
Digga XO25 and XT25 extensions stack in one-foot increments, which is cheaper than buying a longer auger for occasional deep holes and easier to transport. They fit between the drive and the RC8.
RC8 or A8?
The A8 is the general-purpose earth auger with flat teeth; the RC8 is the taper-tooth combination bit. Same body and flighting, different head. Pick the RC8 if fracturable rock is part of the job.
How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is shown before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order?
Add the item to your cart and check out online — the order page asks for your machine make and model, so there is no need to call ahead. We check the mount against your machine after the order and come back to you if anything needs changing. If you would rather ask first, email support@eskidsteer.com or use the chat button on your screen.
Buyers find the RC8 searching for a rock auger bit, an skid steer auger bit, or a specific size such as an auger teeth. It also comes up alongside earth auger bit when a worn head needs refreshing rather than replacing, and against excavator auger when someone is choosing between bit families. The RC8, like the rest of the range, is genuine digga auger tooling made in Dyersville, Iowa.
Downloads Digga Spec Sheet
Digga Auger Bits Guide Video
