Machine Range
4,000–13,000 lbs
Models
XB-15 to XB-60
Adapter Options
MI, MU or SU
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭
USA Made
🔒
2-Yr Warranty
🔄
Full Revolve
🔩
30+ Tools
📘 Overview

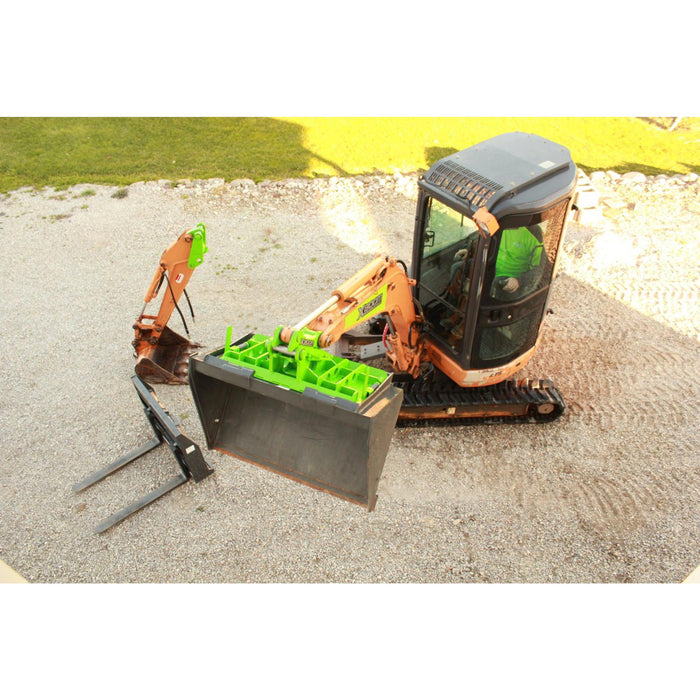

An excavator to skid steer adapter built for mini machines: the Amulet XBoom converts a mini excavator into a rigid-boom tool carrier — and back again in seconds. It mounts at the boom end, not the stick end, so the load sits closer to the machine’s centre of gravity and you can lift heavier with less tipping than a stick-mounted adapter allows. Seven models, XB-15 through XB-60, cover mini excavators from 4,000 lb to 13,000 lb (1.5 to 6.0 metric tons), and each is paired with one of three Universal Skid Steer Adapters — MI, MU or SU — chosen by the size of attachment you intend to run. Your machine keeps full range of motion and full digging capability.
Fitment is machine-specific. Specify your excavator make, model and year when ordering.
🔧 How the XBoom Coupler System Works
The XBoom is a three-component system, not a single adapter plate:
- The boom coupler installs at the end of the boom, where the arm normally attaches.
- The arm receiver lets the excavator arm pin back on, so you switch between digging and tool-carrying rather than choosing one.
- The Universal Skid Steer Adapter (MI, MU or SU) carries the attachment itself.
Because the mount sits at the boom end rather than the stick end, the leverage working against the machine is much shorter. That is the whole point of the design: you can pick up heavier objects with less tipping than a stick-mounted setup, in a full revolving configuration that keeps the machine’s complete range of motion. The result is a rigid frontal force structure with a smaller overall footprint — which is what makes it work in confined areas where a skid steer cannot turn.
📐 Choosing Your Excavator to Skid Steer Adapter — MI, MU or SU
Two things decide your adapter: the weight of your excavator, which sets the XBoom model, and the size of the attachments you want to run, which sets the adapter. Amulet publishes a bucket-width range for each adapter — check yours against it before ordering, because a 60" bucket will not run on an MI adapter no matter which XBoom model your machine takes.
| Adapter | Type | Bucket Range | Attachments It Carries |
|---|---|---|---|
| MI | Mini-Walk Behind | 32" – 48" | Attachments built for Dingo, Boxer, Ditch Witch and Vermeer mini skid steers |
| MU | Mini-Universal | 36" – 54" | Attachments built for the 463, S70, MT50, MT52, MT55 and MT85 mount patterns |
| SU | Standard Universal | 54" – 84" | All standard full-size universal skid steer attachments |
MI and MU carry mini skid steer and small-frame loader attachments — on those two the XBoom is effectively a mini excavator to mini skid steer adapter. SU carries full-size universal skid steer attachments. If you already own the attachments you plan to run, measure the widest one and pick the adapter whose range covers it.
📊 XBoom Model Selection by Excavator Weight
| XBoom Model | Fits Machine Weight | Metric Tons | Adapter Choice | Weight Class | XBoom Weight |
|---|---|---|---|---|---|
| XB-15 | 4,000 lb | 1.5 – 1.7 | MI | 1-3 Ton | 95 lb |
| XB-25 | 6,000 lb | 1.8 – 2.6 | MI or MU | 1-3 Ton | 120 lb |
| XB-30 | 7,000 lb | 2.7 – 3.2 | MI or MU | 3-5 Ton | 250 lb |
| XB-35 | 8,000 lb | 3.3 – 3.8 | MU or SU | 3-5 Ton | 250 lb |
| XB-45 | 10,000 lb | 3.9 – 4.6 | SU | 5-6 Ton | 300 lb |
| XB-50 | 11,000 lb | 4.7 – 5.3 | SU | 5-6 Ton | 350 lb |
| XB-60 | 13,000 lb | 5.4 – 6.0 | SU | 6-8 Ton | 390 lb |
Model selection data from Amulet’s published XBoom Coupler flyer. Where two adapters are listed for one model, either will fit the machine — the choice comes down to the attachment size range in the table above.
🧱 What You Can Run on an XBoom-Equipped Excavator
With an SU adapter fitted, the XBoom opens the full universal skid steer attachment catalogue to a mini excavator — more than 30 tool categories that the machine could not otherwise carry:
- Buckets — skid steer, 4-in-1, stump, rock, skeleton, manure, mulch and snow buckets
- Forks and handlers — pallet forks, bale spears, bale handlers
- Ground engaging — augers, trenchers, landscape rakes, brush attachments
- Demolition — hydraulic breakers and hammers, concrete claws and crushers, rock crushers, demolition shears
- Snow — snow pushers, snow plows, V-plows, snow blowers
- Booms and reach — fixed booms, telescopic booms, 3-point adaptors
- Forestry — grapples, tree shears
With MI or MU fitted, the same applies to mini skid steer and small-frame loader attachments within that adapter’s bucket range. The practical limit is not the adapter — it is your machine’s lift capacity and stability with the tool loaded.
⭐ Why Contractors Fit an XBoom
- One machine instead of two. A mini excavator that can also carry forks, an auger or a grapple removes the cost of renting, transporting and insuring a second carrier for tool work.
- It works where a skid steer cannot turn. Full revolving means the house rotates instead of the machine — you can load, travel and unload in a confined area without the aggressive turning a skid steer needs.
- Better lifting geometry than a stick-mounted adapter. Mounting at the boom end shortens the lever arm, so more of the machine’s capacity goes into the load instead of fighting tipping moment.
- You keep the excavator. The arm receiver means the stick pins back on. This is a reconfiguration, not a conversion — digging capability is not given up.
- It runs attachments you may already own. If you have a skid steer in the fleet, its mini excavator attachments and full-size tools become usable on the excavator too.
- 2-year warranty, 100% made in the USA at Amulet’s plant in Rathdrum, Idaho. The XBoom Coupler is a patent-pending, registered Amulet design.
📋 Amulet XBoom Coupler System Specifications
| System Type | Boom-mounted excavator coupler — three-component system |
| Components | Boom coupler + arm receiver + Universal Skid Steer Adapter |
| Machine Range | 4,000 lb to 13,000 lb (1.5 – 6.0 metric tons) |
| Machine Weight Classes | 1-3 Ton, 3-5 Ton, 5-6 Ton, 6-8 Ton |
| Models | XB-15, XB-25, XB-30, XB-35, XB-45, XB-50, XB-60 |
| XBoom Weight | 95 lb to 390 lb depending on model |
| Adapter Options | MI (Mini-Walk Behind) | MU (Mini-Universal) | SU (Standard Universal) |
| Bucket Range by Adapter | MI 32"–48" | MU 36"–54" | SU 54"–84" |
| Configuration | Rigid boom, full revolving — retains full machine range of motion |
| Mounting Position | Boom end (not stick end) |
| Reversible | Yes — arm receiver allows the excavator arm to be refitted |
| Compatible Attachments | 30+ universal skid steer tool categories |
| Warranty | 2 Years |
| Origin | 100% USA made — Rathdrum, Idaho |
| Order Note | Specify excavator make, model and year when ordering |
🚜 XBoom Machine Compatibility
The XBoom mounts to the boom end of a mini excavator, so fitment is determined by machine weight class and by your machine’s boom and pin geometry — there is no quick-attach standard involved. The XBoom is built for the 1-3 Ton through 6-8 Ton classes only; above 6-8 Ton there is no XBoom model. Find your machine below, then select that weight class from the options above.
| Weight Class | Machine Weight |
|---|---|
| 1-3 Ton | 2,000–6,000 lb |
| 3-5 Ton | 6,000–10,000 lb |
| 5-6 Ton | 10,000–12,000 lb |
| 6-8 Ton | 12,000–16,000 lb |
Fits machines from Bobcat, Bradco, Case, Caterpillar, Daewoo/Doosan/Develon, Ford, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liu Gong, Mustang, New Holland, Samsung, Sany, Takeuchi, Terex, Thomas, Volvo, Wacker Neuson, Woods, XCMG, Yanmar — 28 manufacturers in total. Find your exact model in the fitment chart below.
Find your machine in the chart, then choose that weight class from the options at the top of this page and add it to your cart.
Machine list from the 2026 Amulet price book, filtered to the weight classes the XBoom covers. Not every machine listed accepts every Amulet product, and XBoom fitment is machine-specific — the boom geometry has to suit. Send your make, model and year on chat or to support@eskidsteer.com and we will confirm it.
❓ XBoom Coupler — Common Questions
Which XBoom adapter do I need — MI, MU or SU?
The adapter is set by the size of attachment you want to run, not by your machine. MI (Mini-Walk Behind) handles 32"–48" buckets and carries attachments built for Dingo, Boxer, Ditch Witch and Vermeer mini skid steers. MU (Mini-Universal) handles 36"–54" and carries attachments on the 463, S70, MT50, MT52, MT55 and MT85 patterns. SU (Standard Universal) handles 54"–84" and carries all standard full-size universal skid steer attachments. Measure the widest attachment you plan to run and pick the adapter whose range covers it.
Which XBoom model fits my excavator?
The XBoom model is set by machine weight: XB-15 for 4,000 lb machines, XB-25 for 6,000 lb, XB-30 for 7,000 lb, XB-35 for 8,000 lb, XB-45 for 10,000 lb, XB-50 for 11,000 lb and XB-60 for 13,000 lb. Some models accept either of two adapters — XB-25 and XB-30 take MI or MU, XB-35 takes MU or SU — so on those machines the attachment size decides. The full table is on this page.
Can I still dig with my excavator after fitting an XBoom?
Yes. The XBoom system includes an arm receiver that lets the excavator arm pin back on, so the machine switches between excavator function and tool carrier rather than being permanently converted. Amulet designed it to change back and forth in seconds — as easy as changing a bucket.
Why does the XBoom mount on the boom instead of the stick?
Leverage. Mounting at the boom end shortens the distance between the load and the machine, which keeps work tools closer to the centre of gravity. The practical effect is that an XBoom-equipped mini excavator to skid steer adapter setup can lift heavier objects with less tipping than a stick-mounted adapter of the same rating.
What attachments can I run with the XBoom?
With an SU adapter, virtually any universal skid steer attachment — more than 30 categories including pallet forks, augers, hydraulic breakers and hammers, grapples, buckets of every type, trenchers, snow pushers and blowers, tree shears and concrete crushers. With MI or MU, the equivalent mini skid steer and small-frame loader attachments within that adapter’s bucket range.
Is there a weight limit on what the XBoom can pick up?
The limiting factor is your excavator, not the XBoom. The adapter carries the attachment, but the machine’s lift capacity and stability with a tool loaded at that reach set the real ceiling. Mounting at the boom end improves this relative to a stick-mounted setup, but it does not raise the machine’s rated capacity.
Does the XBoom work as a skid steer to excavator adapter in reverse?
It works in the direction that matters: the XBoom lets an excavator carry skid steer attachments. People searching for a skid steer to excavator adapter are usually describing the same need — getting skid steer tooling onto an excavator. The XBoom does not mount excavator attachments onto a skid steer.
Do I need to specify anything when ordering the XBoom?
Yes — you must specify your excavator make, model and year, and your adapter choice. XBoom fitment is machine-specific because the boom geometry has to suit. If you are unsure of either, ask us on chat or at support@eskidsteer.com before ordering.
What warranty comes with the Amulet XBoom?
The XBoom Coupler carries Amulet’s 2-year warranty and is 100% manufactured in the USA at Amulet’s plant in Rathdrum, Idaho. The XBoom Coupler is a patent-pending, registered Amulet design.
How is shipping calculated on the XBoom?
Shipping is calculated automatically at checkout. Add the XBoom to your cart and enter your delivery address and the freight cost is quoted before you pay. XBoom weight runs from 95 lb on the XB-15 to 390 lb on the XB-60, so freight varies by model.
How do I order the Amulet XBoom?
Order directly on eskidsteer.com. Select your excavator weight class and XBoom model above, add to cart and complete checkout, specifying your excavator make, model and year plus your adapter choice in the order notes. Everything you need to choose the right model is on this page; if anything is still unclear, chat or email support@eskidsteer.com and we will answer before you order.
🔗 What the XBoom Works With
- The XBoom carries skid steer attachments; the Amulet Mini-Hitch Quick Coupler just makes bucket changes faster. Different jobs — many machines end up with both.
- The XBoom mounts at the boom end, so it does not conflict with a stick-mounted thumb like the Amulet PowerBrute Hydraulic Thumb.
- Fitting an XBoom does not give up excavator work — the arm pins back on, so a Amulet T3 Tilt Bucket still runs on the same machine.
