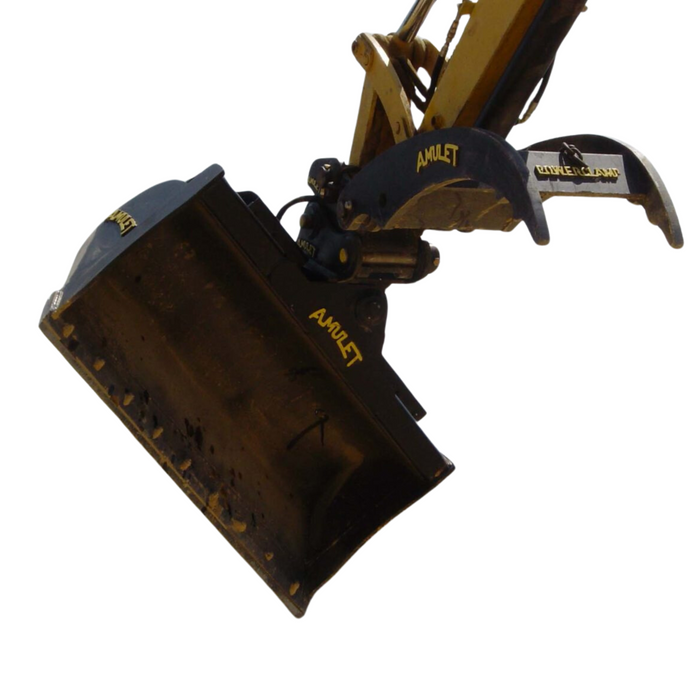

Excavator Tilt Bucket - Amulet

📘 Overview

The Amulet Excavator Tilt Bucket gives excavator and backhoe operators a full 90-degree range of tilt (45° each way) for precision soil shaping, slope cutting, ditch profiling, and fine grading — available for machines from 6,000 to 80,000 lbs in widths from 36" to 84". Heavy-duty double-acting hydraulic cylinders deliver smooth, responsive tilt control. Optional bolt-on edges available on all models. Standard and High Capacity versions (High Capacity handles 40% more volume). Drilled for standard bolt-on edge as shipped. Pin set sold separately. 100% USA made, 2-year warranty. Specify your excavator Make, Model, and Year when ordering.

⚙️ Key Features

• Full 90-degree tilt range (45° each way)
• Heavy-duty double-acting hydraulic cylinders
• For 6,000 – 80,000 lb machines (backhoe loaders and excavators)
• Widths from 36" to 84" depending on machine
• Standard and High Capacity (40% more volume)
• Drilled for standard bolt-on edge
• 100% USA made | 2-year warranty
• Pin set sold separately | Specify Make/Model/Year when ordering

🔑 Benefits

• Full 90° tilt range profiles slopes, ditches, and contoured grades in a single pass — a standard (non-tilting) bucket requires repeated repositioning to match the same surface — on slope work, the operator must angle the entire machine to match the grade with a standard bucket. A tilt bucket adjusts the cutting plane hydraulically from the cab, matching the grade angle without machine repositioning, dramatically reducing passes and operator fatigue on precision contouring work.
• Double-acting cylinders provide powered control in both tilt directions — not just gravity-return — single-acting tilt designs only power one direction; the return relies on gravity and load. Double-acting cylinders actively control both the push and pull of the tilt, giving the operator full, responsive control at all angles and in all orientations.
• High Capacity version moves 40% more material per cycle on high-volume excavation jobs, reducing total cycles needed to complete the cut
• Bolt-on edges protect the bucket's base steel from abrasive wear — when the edge wears, only the bolt-on edge is replaced, not the bucket body

📊 Specifications

Capacity Reference — T3 Series

Series designations (T3-1, T3-1.5, T3-2, T3-3) correspond to machine weight classes. Contact eSkidSteer at 866-757-8337 for any questions. Wider widths (48"-84") available in larger machine weight classes.

🔗 Attachment Compatibility

Designed for slope grading, ditch profiling, contour excavation, landscaping, utility trench shaping, pond construction, site drainage work, and any excavation application where precision tilt control reduces repositioning and improves surface quality. Select width and capacity based on your machine weight class. Contact eSkidSteer at 866-757-8337 for any questions.

🚜 Machine Compatibility

Compatible with excavators and backhoe loaders. Compatibility is determined by machine weight class and pin/boss dimensions — confirm your machine's configuration before ordering. Covers backhoe loaders and excavators 6,000–80,000 lbs. Pin set sold separately. Specify Make, Model, and Year when ordering.

Specify your excavator Make, Model, and Year when ordering. Contact eSkidSteer at 866-757-8337 for any questions.
