Description
🔒1-year warranty
⚡220 V, 3-phase
📘 Overview

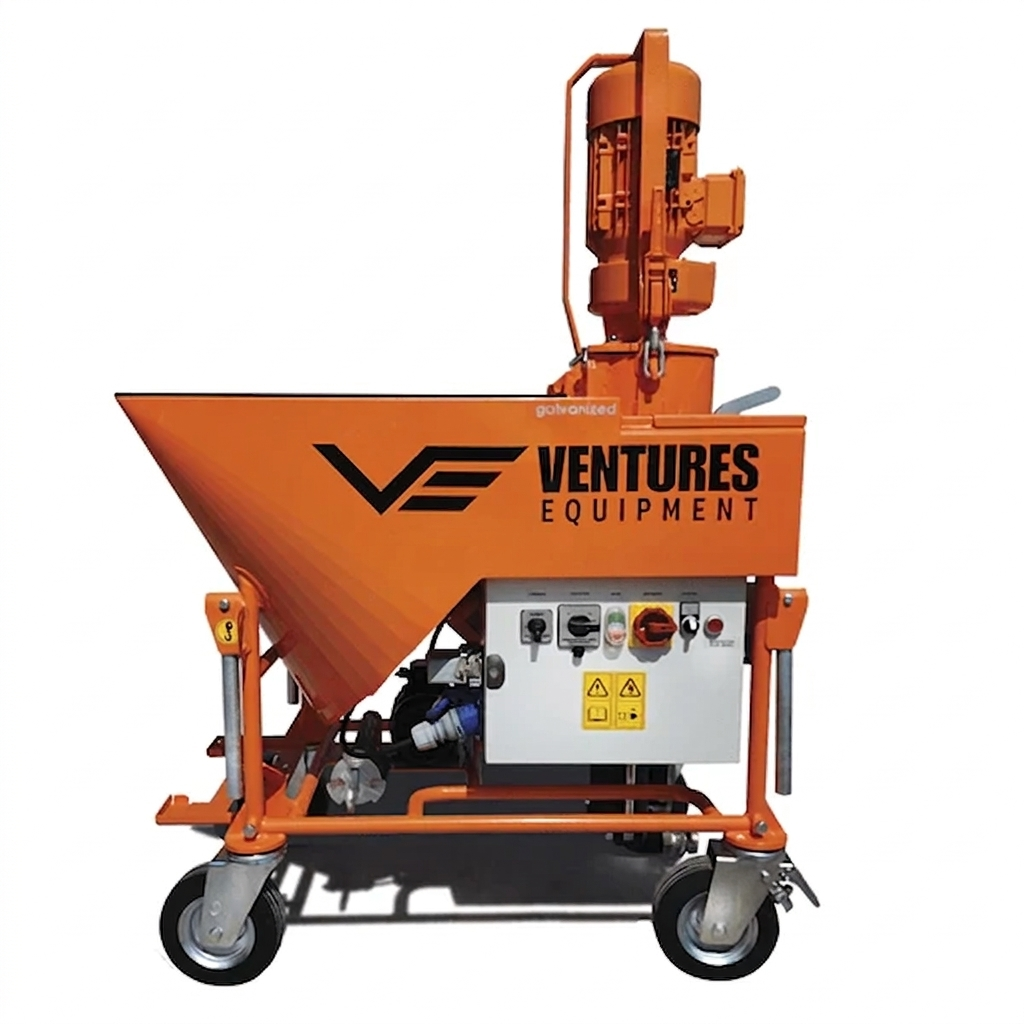

This Ventures Equipment mixing pump (VE4) is a self-contained machine with no mount and no host loader: it mixes and pumps in one pass at up to 200 bags an hour and delivers material up to 200 ft from where it stands, on a single 220 V 3-phase supply. It is a plastering and dry-mortar machine rather than a concrete pump: fireproofing, self-levelling underlayment and topping compounds, grout, micro-trench reinstatement and LV spray work are what it is built around. The hopper takes 24 gallons of dry material and can be charged by hand from bags or fed pneumatically from a dry-mortar silo, so the same machine suits a two-man patch crew and a continuous silo-fed pour. A water pump is standard rather than an add-on, the worm pump changes without tools, and every function runs from one control panel. The mixing zone is a highly wear-resistant synthetic and the structural components are hot-dip galvanized. At 573 lb and 41 in. wide it is a single-configuration machine - there is no variant to choose - and it carries a 1-year limited warranty.
⚙ Key Features of the VE4 Mixing Pump
- Mixes and pumps in one machine at up to 200 bags per hour, removing the separate mixer and the crew member who tends it.
- 200 ft pumping distance from a single set-up, so one position covers most of a floor plate without breaking down and moving.
- Water pump included as standard - not a priced option, and the reason mix consistency does not depend on site water pressure.
- Tool-free quick-change worm pump - the highest-wear part on any rotor-stator machine comes off without a spanner, so a stator change is a break-time job.
- Every function on one control panel, which keeps training short on crews where the operator changes week to week.
- 24-gallon dry material hopper charged by hand from bags or fed pneumatically from a dry-mortar silo - the same machine covers patch work and continuous silo-fed pours.
- Modular construction for fast dismantling, transport and set-up, which is what gets a 573 lb machine into an occupied building.
- Wear-resistant synthetic mixing zone - it cleans down faster than a steel mixing chamber and resists the abrasion that shortens machine life on cementitious work.
- Hot-dip galvanized components for corrosion protection, which matters on a machine that is washed out with water at the end of every shift.
🔑 What the VE4 Mixing Pump Changes on Site
- Drop a person from the mixing station. Mixing and pumping happen in one machine at up to 200 bags an hour, so the crew member who would run a separate mixer works on placement instead.
- Set up once for most of a floor. 200 ft of pumping distance covers a large floor plate from one position, which removes the repeated break-down, move and re-prime cycle that eats a working day.
- Change a worm pump at break, not at end of shift. The tool-free quick-change device takes the highest-wear component off without tools.
- Run the same machine on bags and on silo. Manual bag charging and pneumatic dry-mortar feed are both standard, so a machine bought for patch work still fits when the job goes to continuous silo supply.
- Get it into an occupied building. Modular construction means it dismantles for transport and reassembles on site, which is how a 573 lb machine reaches an upper floor.
- Wash down faster. The synthetic mixing zone releases material that sticks to steel, so end-of-shift clean-down is shorter and the machine starts cleanly the next morning.
📊 VE4 Mixing Pump Specifications
| Specification | Value |
|---|---|
| Power requirement | 220 V, 3-phase |
| Output | Up to 200 bags per hour |
| Pumping distance | Up to 200 ft |
| Dry material hopper | 24 gallons |
| Dimensions | 41 in. W x 29 in. L x 56 in. H |
| Weight | 573 lb (estimated) |
| Water pump | Included as standard |
| Worm pump change | Tool-free quick-change device |
| Mixing zone | Highly wear-resistant synthetic material |
| Corrosion protection | Hot-dip galvanized components |
| Loading | Manual bag loading or pneumatic dry-mortar silo feed |
| Warranty | 1-year limited (initial user) |
🔗 Material and Feed Compatibility on the VE4
The VE4 runs pre-mixed dry mortar - material designed for machine application. The 24-gallon dry hopper is charged by hand from bags, or connected to a pneumatic dry-mortar delivery system for continuous silo feed. Both methods are standard on the machine; neither is a conversion.
A water pump is fitted as standard, so mix water is metered by the machine rather than drawn straight from a site tap at whatever pressure happens to be available. Material is delivered up to 200 ft from the machine through standard mortar hose.
Material suitability is set by the product manufacturer, not by the pump - check that your fireproofing, underlayment or render is approved for machine application before ordering.
🚜 What the VE4 Mixing Pump Needs on Site
The VE4 is a self-contained, mains-powered machine, not a skid steer or excavator attachment. There is no mount, no quick attach plate and no host machine - what determines whether it fits your job is electrical supply, access and working space.
| Site requirement | What the VE4 needs |
|---|---|
| Electrical supply | 220 V, 3-phase |
| Machine footprint | 41 in. wide x 29 in. long x 56 in. high |
| Weight | 573 lb (estimated) |
| Material delivery | Up to 200 ft from the machine position |
| Material loading | Manual bag charging, or pneumatic feed from a dry-mortar silo |
| Water | Site water supply - the machine's own water pump meters it |
Because it is modular, the VE4 dismantles for transport and reassembles on site, which is how it reaches upper floors and interiors that a one-piece machine of this weight cannot. Plan a route wide enough for a 41 in. body.
Confirm you have 220 V 3-phase power at or near the work area before ordering - single-phase supply will not run this machine, and that is the one requirement a generator hire cannot always solve on short notice.
Everything needed to size this machine to your site is on this page - add it to your cart to see delivered pricing for your address. If anything about the power supply or the access route still needs checking, we confirm it with you after the order is placed.
🔗 What the VE4 Mixing Pump Is Used For
The VE4 is bought as several machines at once: a fireproofing pump on steel-frame work, a self leveling underlayment pump on floor preparation, a grouting machine on repair contracts, and a plastering machine for renders and internal plasters. As a dry mortar pump it runs pre-blended bagged product, and as a mortar mixing machine it removes the separate mixer and the person who tends it.
- Fireproofing materials
- Self-levelling underlayment and topping compounds
- Grout pumping
- Reinstatement for micro-trenching
- LV spray application
- External renders and internal plasters suitable for machine use
🔗 What Else Pairs With the VE4 Mixing Pump
- SureMix dual mixing mortar and grout pump - 300 ft horizontal reach and a wireless remote where the VE4 offers 200 ft
- 3/8 Special concrete grout pump - for site-batched concrete with aggregate up to 3/8 in.
- Star Industries mortar buggies - for moving mixed material to the machine on sites the hose cannot reach
❓ VE4 Mixing Pump Questions, Answered
Inspect the VE4 before you sign. The machine ships crated by LTL freight. Check the control panel, the hopper and the galvanized frame for transit damage, and note anything you find on the Bill of Lading before the driver leaves - a signed clean BOL closes the carrier claim.
What power supply does the VE4 mixing pump need?
The VE4 mixing pump runs on 220 V, 3-phase power. Single-phase supply will not run the machine, so confirm 3-phase is available at or near the work area before ordering.
How far can the VE4 pump material?
The VE4 delivers material up to 200 ft from where the machine stands. Beyond that distance the machine needs to be repositioned.
What materials does the VE4 mixing pump handle?
The VE4 is built for pre-mixed dry mortar and cementitious products: fireproofing materials, self-levelling underlayment and topping compounds, grouts, micro-trenching reinstatement material, LV spray products, and external renders and internal plasters that are suitable for machine application.
Can the VE4 be fed from a silo?
Yes. The 24-gallon dry material hopper can be charged by hand from bags or supplied pneumatically through a dry-mortar delivery system. Both are standard capabilities, not conversions, so the machine covers small patch work and continuous silo-fed pours.
Is a water pump included with the VE4?
Yes. A water pump is fitted as standard on the VE4, so mix water is metered by the machine rather than depending on site water pressure.
How difficult is it to change the worm pump?
The VE4 uses a tool-free quick-change device for the worm pump, so the highest-wear component comes off without tools. All other functions are managed from a single control panel.
Will the VE4 fit through a doorway and up to an upper floor?
The VE4 measures 41 in. wide by 29 in. long by 56 in. high and weighs an estimated 573 lb. Its modular construction allows fast dismantling for transport and reassembly on site, which is how it is moved into interiors and to upper floors.
How is the VE4 protected against corrosion?
Hot-dip galvanized components provide corrosion protection, and the mixing zone is made from a highly wear-resistant synthetic material that cleans down more easily than steel and extends service life.
Is the VE4 mixing pump a skid steer attachment?
No. The VE4 is a self-contained, mains-powered machine with no quick attach plate, and the VE4 does not mount to a skid steer, loader or excavator. The machine requires a 220 V 3-phase supply and floor space, not a host machine.
What warranty comes with the VE4?
Ventures Equipment warrants the machine free of defects in material and workmanship for one year from delivery, to the initial user. Normal wear parts are excluded, including seals, rotors, stators, hoses, shaft couplings and connectors, pump shafts and filter elements.
How does the VE4 mixing pump ship?
Shipping is calculated at checkout - add the VE4 to your cart and enter your delivery address to see the freight charge before completing the order. The machine ships by LTL freight and lift gate service can be selected at checkout.
