Description
📘 Overview

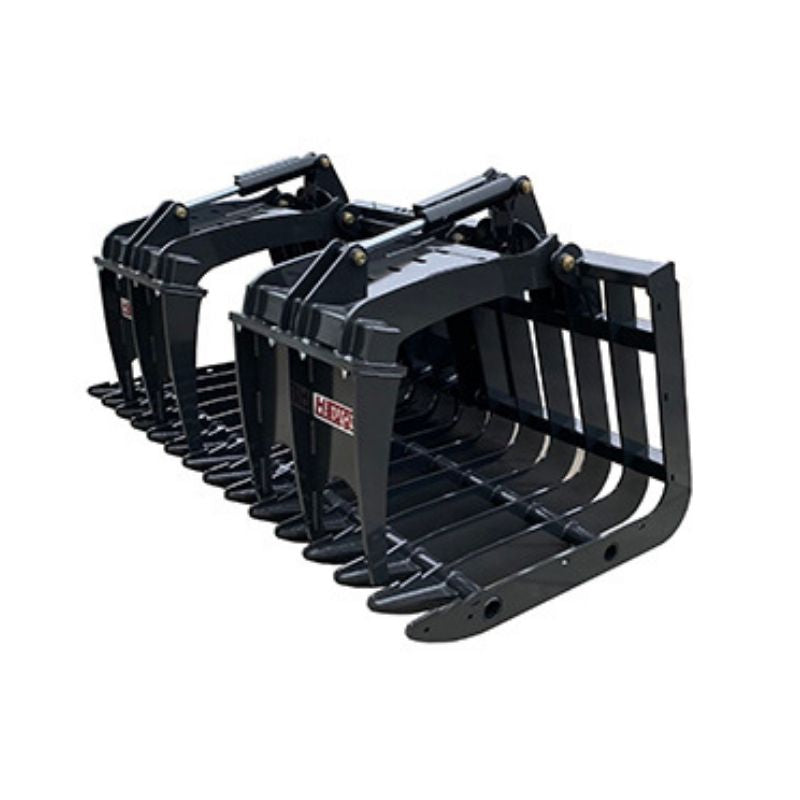

The Haugen MSGT telehandler skeleton grapple is a heavy-duty grapple bucket built specifically for telehandlers operating in demanding rock, debris, and demolition environments. Available in two widths: MSGT-72 (72", 1,550 lbs) and MSGT-96 (84", 1,750 lbs). Features 1/2" Grade 50 tines at 6.25" spacing, 40" tall and 46" deep bucket, 48.5" grapple opening, independent grapples, and 2.5"×10" industrial cylinders. Available mounts for Cat, SkyTrak, Gehl, Manitou, Genie, and JLG. Made in USA with a 1-year warranty.
⚙️ Key Features
- Two sizes: MSGT-72 (72", 1,550 lbs) and MSGT-96 (84", 1,750 lbs)
- 1/2" Grade 50 steel tines
- 6.25" tine spacing
- Bucket: 40" tall x 46" deep
- Grapple opening: 48.5"
- Independent grapples
- 2.5" x 10" industrial cylinders
- Serrated edge for material penetration
- Available for Cat, SkyTrak, Gehl, Manitou, Genie, JLG
- Made in USA | 1-year warranty
🔑 Benefits
- 1/2" Grade 50 tines are substantially heavier than skid steer skeleton grapple tines — skid steer skeleton grapples typically use 3/8" tines. The telehandler MSGT uses 1/2" Grade 50 tines, which are thicker and made from higher-strength alloy steel, better suited to the higher working loads and impact stresses of telehandler-scale operations where bucket load capacities are much higher than typical skid steer lift limits.
- 6.25" tine spacing retains rocks and material larger than most common debris — the 6.25" spacing allows fines, dirt, and small debris to pass through while retaining rocks, concrete rubble, lumber, and material larger than 7-8" in the bucket. This is wider than the standard 3" skid steer skeleton grapple spacing, reflecting the larger rock and debris sizes common in telehandler-scale operations.
- Independent grapples maintain secure grip on asymmetric loads at telehandler height — telehandlers routinely operate at full boom height (20-40+ ft) to place material in containers, truck beds, or storage. At full extension, load stability is critical. Independent arm action maintains grip on asymmetric loads at altitude where a single-arm closure would leave gaps.
- 1,550-1,750 lb attachment weights reflect the heavy construction needed for telehandler-rated loads — telehandlers are rated to 6,000-12,000+ lbs. The MSGT is built to withstand the forces generated at these capacities, which requires substantially heavier construction than skid steer grapples (typically 700-1,100 lbs). The weight itself is evidence of build quality for this application.
📊 Specifications
| Model | Width | Description | Weight |
|---|---|---|---|
| MSGT-72 | 72 in. | Root Grapple with Serrated Edge | 1,550 lbs |
| MSGT-96 | 84 in. | Root Grapple with Serrated Edge | 1,750 lbs |
| Specification | Value |
|---|---|
| Tines | 1/2" Grade 50 steel |
| Tine Spacing | 6.25 inches |
| Bucket Height | 40 inches |
| Bucket Depth | 46 inches |
| Grapple Opening | 48.5 inches |
| Grapple Type | Independent arms — each closes separately |
| Cylinders | 2.5" x 10" industrial — independent |
| Cutting Edge | Serrated front edge |
| Available Mounts | Cat, SkyTrak, Gehl, Manitou, Genie, JLG |
| Warranty | 1 year |
| Origin | Made in USA |
🔗 Attachment Compatibility
Specify your telehandler make and model when ordering — the MSGT requires a specific mounting plate to fit your machine's carriage. At 1,550–1,750 lbs of attachment weight, verify your telehandler's rated operating capacity at the applicable load center and boom extension before operating. Both sizes require two aux hydraulic circuits for independent grapple arm operation.
🚜 Machine Compatibility
Designed for telehandlers. Available mounts for:
| Caterpillar | SkyTrak | Gehl | Manitou |
| Genie | JLG |
Requires two auxiliary hydraulic circuits for independent grapple arm operation. At 1,550-1,750 lbs, verify telehandler rated operating capacity at the applicable load center and boom extension before use.
❓ FAQs
|
Q: What does the "96" in MSGT-96 mean if the actual width is 84"?
The workbook lists MSGT-96 with a variant value of 84". The lecinfo.com spec table lists MSGT-96 as "84" Root Grapple with Serrated Edge." The "96" in the model number may reflect a previous sizing or naming convention at Haugen. The actual bucket width is 84". Verify with eSkidSteer at 866-757-8337 to confirm which dimension the SKU refers to before ordering. |
|
Q: How does MSGT tine spacing (6.25") compare to the skid steer skeleton grapple (3")?
The MSGT-72/96 uses 6.25" spacing versus 3" on the skid steer MSRG models. Wider spacing allows larger material volumes to pass through more quickly, which is appropriate for telehandler-scale rock, concrete rubble, and debris operations where the material is generally larger. For fine sifting of small rocks, the skid steer HRDG (3" spacing) is more appropriate. |
|
Q: What telehandler mounts are available?
The MSGT is available for Cat, SkyTrak, Gehl, Manitou, Genie, and JLG telehandlers. Specify your machine's make and model when ordering to ensure the correct carriage mount plate. If your machine is not listed, contact eSkidSteer at 866-757-8337 — custom mounts may be available. |
|
Q: Does the MSGT work on skid steers?
No — the MSGT is designed for telehandler carriage mounts, not the Universal Skid Steer Quick Attach (SSQA). At 1,550-1,750 lbs, it also exceeds the rated operating capacity of most skid steers. For a skid steer skeleton grapple, see the Haugen MSRG / MSRGS series. |
|
Q: What is the grapple opening of 48.5"?
The 48.5" grapple opening is the distance between the grapple tips when fully open, measured at the tip. This determines the maximum diameter of a single material piece that the grapple can grip from the outside. For material smaller than 48.5", the grapple wraps around the outside; for material larger, the grapple pierces into the pile and grips through compression. Large-diameter logs, pipe, or concrete rubble up to approximately 48.5" can be gripped in a single-piece hold. |
