Description:

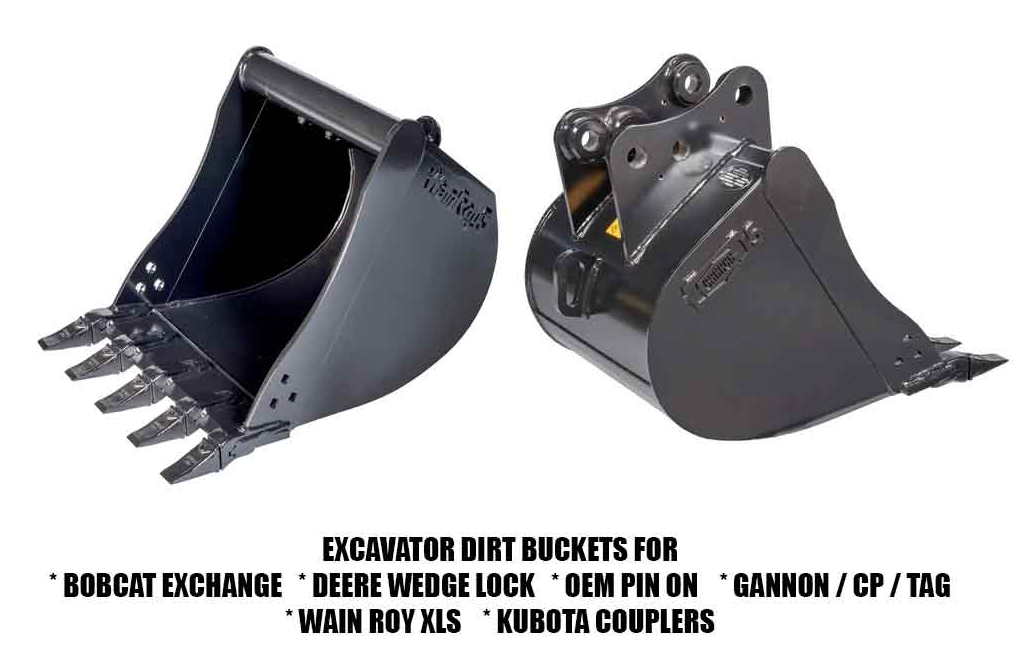

SEVERE DUTY PIN-ON TRACTOR LOADER BACKHOE BUCKETS
Wain Roy Severe-Duty Buckets are specially designed for durability in severe abrasion applications and high-impact conditions. SD buckets incorporate high-strength materials and heavier material thickness for extended bucket life, structural strength, and durability. SD buckets are also available in high capacity versions.
Available Mounts:
| Available Mounts | Description |
|---|---|
| OEM PIN ON | Two horizontal pins |
| WAIN ROY XLS | Hook with vertical pin |
| GANNON ELIMINATOR / TAG / CP / WR ORIGINAL | Hook with vertical pin |
Specifications:

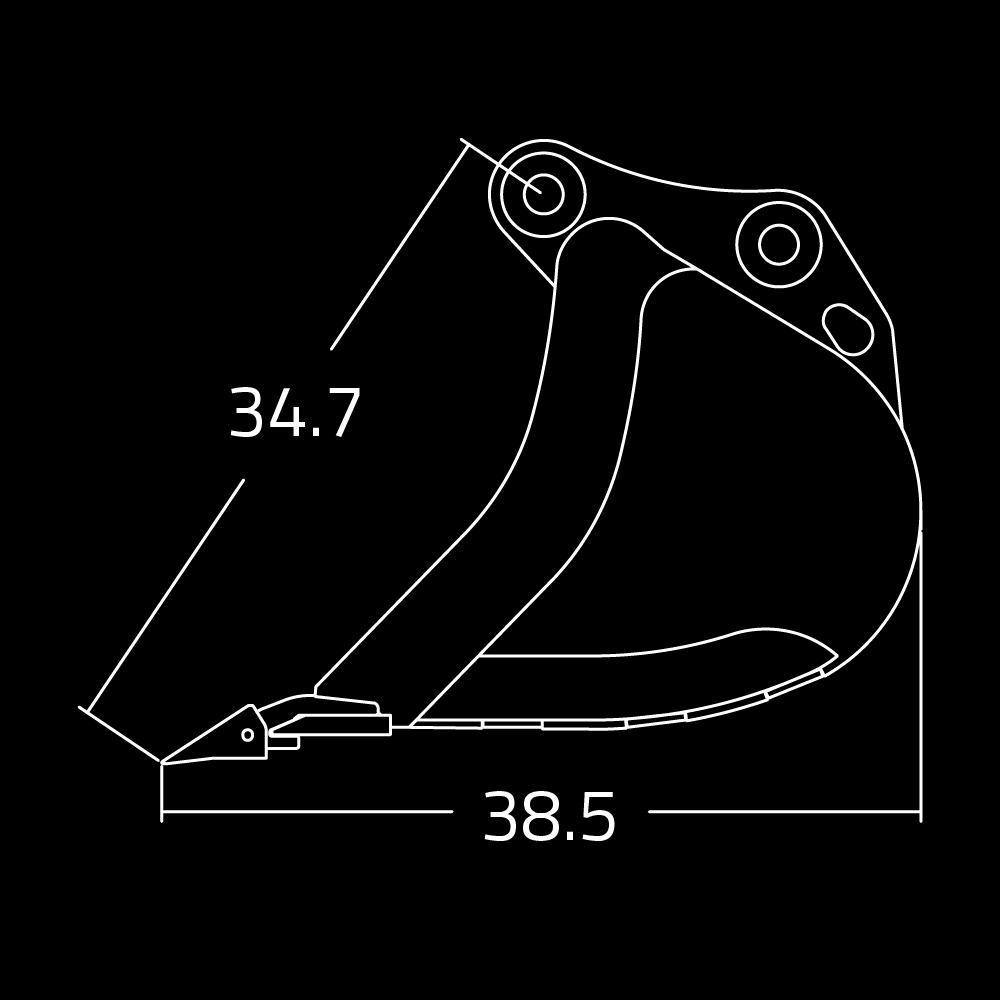

Severe Duty — OEM Pin On
| Model | Capacity (cu. ft.) | Weight (lbs.) | No. Teeth | Mouth Opening | Length |
|---|---|---|---|---|---|
| SD1PO-12 | 3.3 | 321 | 3 | 34.7" | 38.5" |
| SD1PO-16 | 4.2 | 357 | 4 | 34.7" | 38.5" |
| SD1PO-18 | 5.0 | 375 | 4 | 34.7" | 38.5" |
| SD1PO-24 | 7.2 | 434 | 5 | 34.7" | 38.5" |
| SD1PO-30 | 9.5 | 483 | 5 | 34.7" | 38.5" |
| SD1PO-36 | 11.8 | 547 | 6 | 34.7" | 38.5" |

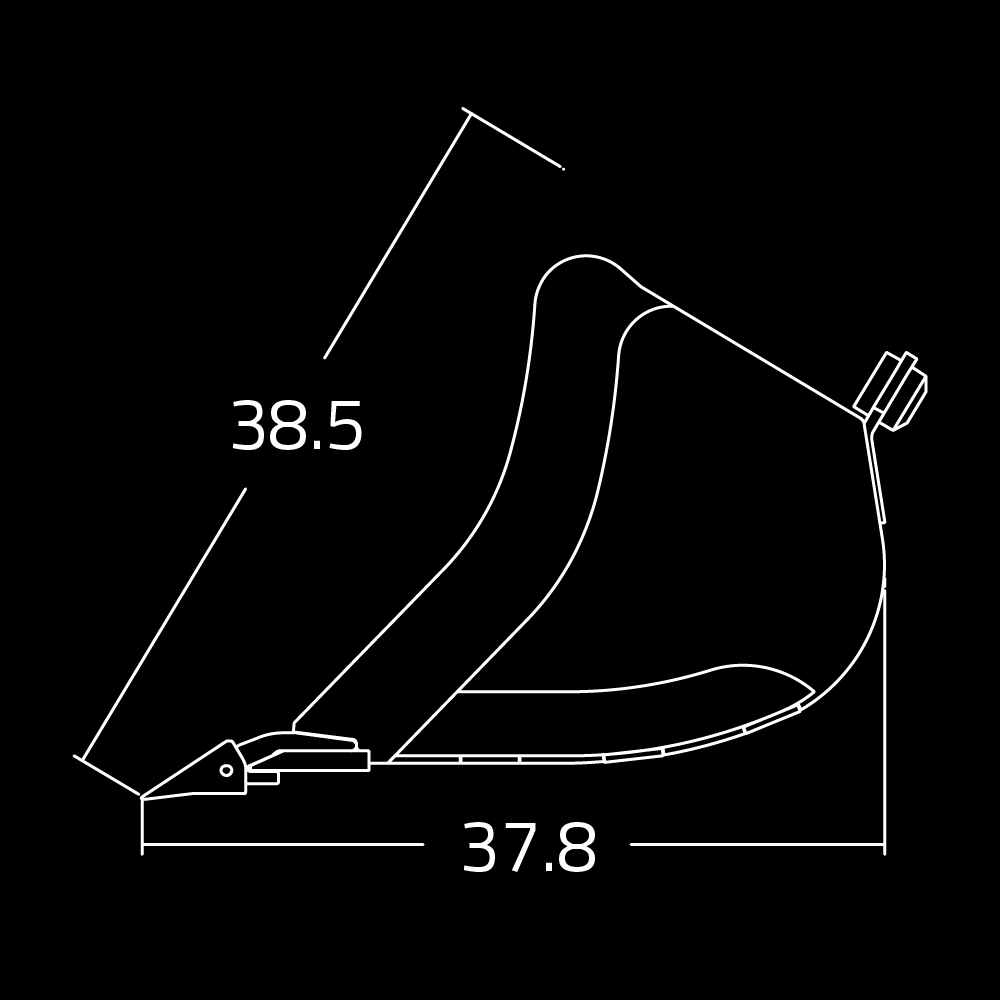

Severe Duty — Wain Roy XLS, Original, Gannon, Tag, CP
| Model | Capacity (cu. ft.) | Weight (lbs.) | No. Teeth | Mouth Opening | Length |
|---|---|---|---|---|---|
| SD1QC-12 | 3.3 | 281 | 3 | 38.5" | 37.8" |
| SD1QC-16 | 4.2 | 317 | 3 | 38.5" | 37.8" |
| SD1QC-18 | 5.0 | 335 | 4 | 38.5" | 37.8" |
| SD1QC-24 | 7.2 | 389 | 5 | 38.5" | 37.8" |
| SD1QC-30 | 9.5 | 443 | 5 | 38.5" | 37.8" |
| SD1QC-36 | 11.8 | 497 | 6 | 38.5" | 37.8" |
Severe Duty — Deere Style
| Model | Capacity (cu. ft.) | Weight (lbs.) | No. Teeth | Mouth Opening | Length |
|---|---|---|---|---|---|
| 81M-12 | 3.5 | 367 | 3 | 27.1" | 34.5" |
| 81M-16 | 4.5 | 415 | 4 | 27.1" | 34.5" |
| 81M-18 | 4.9 | 437 | 4 | 27.1" | 34.5" |
| 81M-24 | 7.4 | 488 | 5 | 27.1" | 34.5" |
| 81M-30 | 9.8 | 555 | 6 | 27.1" | 34.5" |
| 81M-36 | 12.3 | 605 | 7 | 27.1" | 34.5" |
Fits:
| Make | Up To 16,000 lbs. Models |
|---|---|
| CASE | 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM |
| CAT | 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT |
| JCB | 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER |
| JOHN DEERE | 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC |
| KOMATSU | W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98 |
| NEW HOLLAND | 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B |
| VOLVO | BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70 |
