Description
201 HP radial piston motor
100mm square shaft
5,000 PSI rated
Overview
The SD95HPS-ECV is a helical pile driver attachment — Digga's high powered Supa drive at 69,244 ft-lbs with the Energy Control Valve fitted from the factory. The ECV is what separates an anchoring drive from a drilling one: it bleeds off the energy a pile stores as it is driven, instead of letting it unwind back through the motor. It runs a 100mm square shaft on a 201 horsepower radial piston motor, and takes up to 100 GPM.
Key Features of the Digga SD95HPS-ECV
- Max torque 69,244 ft-lbs, as published by Digga for the SD95HPS-ECV
- Max speed 22 RPM
- 201 HP radial piston motor — a different class of motor from the orbital units on the smaller drives
- Max flow 100 GPM at 3,500 PSI; do not exceed 5,000 PSI at 70 GPM
- 100mm square output shaft, taking RC11 and DR11 bits
- Drills to 79 inches in earth and 60 inches in clay or shale, subject to ground conditions
- Pressure relief valve included
- Energy Control Valve included — fitted for screw anchoring and helical piling
- HALO optional
Digga SD95HPS-ECV Specifications
| Specification | Value |
|---|---|
| Model | SD95HPS-ECV |
| Drive type | Single speed |
| Max torque | 69,244 ft-lbs |
| Max speed | 22 RPM |
| Max flow | 100 GPM at 3,500 PSI |
| Max pressure — do not exceed | 5,000 PSI at 70 GPM |
| Max horsepower | 201 |
| Motor type | Radial piston |
| Pressure relief valve | Included |
| Energy Control Valve | Included |
| Standard output shaft | 100mm square |
| Recommended auger bits | RC11 / DR11 |
| Max drilling diameter — earth | 79 in |
| Max drilling diameter — clay / shale | 60 in |
| HALO alignment | Optional |
Figures as published by Digga for the SD95HPS-ECV. Maximum drilling diameter depends on ground conditions and is a guide rather than a rating.
What the Energy Control Valve Does

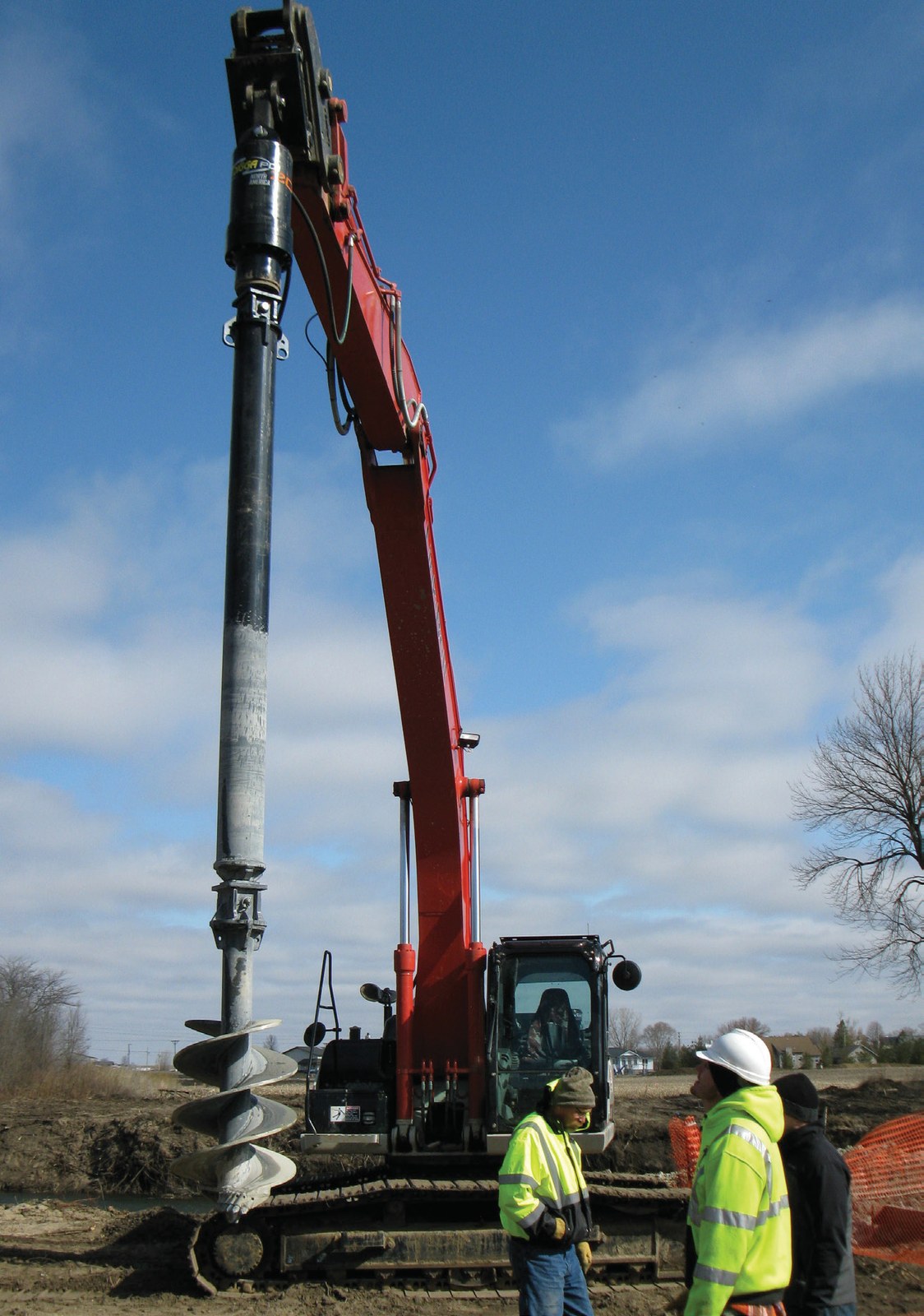

When a helical pile reaches torque and the operator stops the drive, the pile is still wound up — Digga's own comparison is a rubber band on a wind-up plane. That energy has to go somewhere before the drive is uncoupled. The ECV is a bypass valve that lets the anchor unwind in a controlled way instead of forcing the stored pressure back up the pile and into the motor and gearbox, which is what damages them.
On the SD95HPS-ECV the valve is fitted from the factory, which is what makes it an anchoring drive rather than a drilling one.
Where the SD95HPS-ECV Sits in the Supa Range
Against the SD80 below it, the SD95 adds 11 percent more torque and turns 25 RPM down to 22. Nothing larger is offered in the Supa range — above this Digga moves to the Mega and Ultra drives. Every drive in the range shares the same body, motor rating, shaft and bit list, so the choice is torque against rotation speed rather than one model being better built than another. The SD95HPS is the same drive without the valve, for drilling rather than anchoring, and the SD95HPT adds a second speed.
Which Machines Fit It?
Supa drives are built for excavators in the 15 to 30 tonne class and for dedicated piling rigs. The limits that matter are hydraulic: 100 GPM of flow, and pressure that must not exceed 5,000 PSI at 70 GPM. A machine that cannot feed it will not hurt the drive, but it will not reach the torque above either.
| Fitment factor | Requirement |
|---|---|
| Machine class | 15 - 30 tonne excavator or piling rig |
| Flow | Up to 100 GPM at 3,500 PSI |
| Pressure | Do not exceed 5,000 PSI at 70 GPM |
| Linkage | 130mm — HI-000046, the SD range size |
| Mount | Sold separately; the RYNO piling cradle hitch is the usual choice |
| Auger bits | RC11 and DR11 on the 100mm square hub |
| Alignment | DiggAlign, for piling work where plumb is the specification |
The linkage for this drive is the 130mm HI-000046, listed under Auger Drive Mount Linkages — the 100mm linkage used by the 9K to 30K drives does not fit. For carrying the drive on a piling rig, see the RYNO piling cradle hitch.
Digga SD95HPS-ECV Questions, Answered
Drilling or anchoring version — which do I need?
Anchoring, if you are installing helical piles or screw anchors. Digga requires the ECV for that work, and it is fitted here from the factory. If the job is drilling holes, the plain drilling version costs less and does the same drilling.
What bits does it take?
RC11 and DR11 on the 100mm square hub — see RC11 heavy duty combo bits and DR11 rock augers. Digga rates the drive to 79 inches in earth and 60 in clay or shale.
How is alignment held on a piling job?
With an inclinometer rather than by eye. The DiggAlign auger alignment system reads the lean fore and aft and side to side on an in-cab display, and can be calibrated for angles up to 20 degrees.
Is a mount included?
No. Supa drives are supplied as drives; the hitch or cradle is ordered separately, and the 130mm linkage with it.
How does it compare with the 30DDS?
Different class. The 30DDS excavator package tops out at 30,712 ft-lbs on an orbital motor for a 30 tonne excavator. The SD95HPS-ECV starts at 69,244 ft-lbs on a 201 HP radial piston motor and is built for piling.
How is shipping calculated?
Shipping is calculated at checkout from the weight of your order and your delivery address, and the charge is shown before you complete the order. Supa drives ship by LTL freight.
Specifying a drive for a piling job? Send us the machine, the pile and the torque specification and we will confirm the drive, linkage and hitch before you order — email support@eskidsteer.com.
