Type
In-cab inclinometer
Standard definition
2 degree increments
High definition
0.5 degree increments
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
Standard and high definition
12V and 24V supply cable
Overview

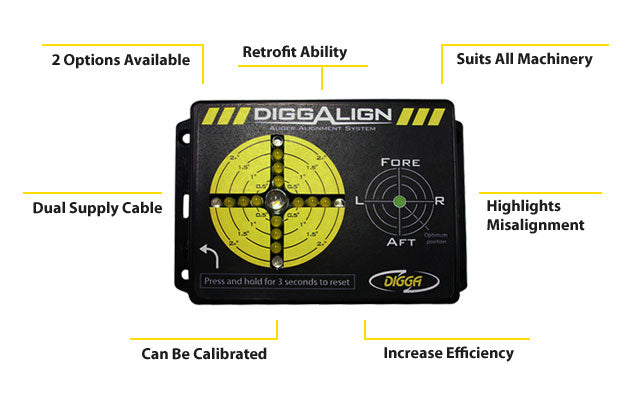

The DiggAlign auger alignment system is Digga's inclinometer for drilling, screw piling and core barrelling, built for contractors where accuracy is the job. It shows the operator on an in-cab display when the top of the auger, pile or pylon is off plumb, fore and aft and side to side, so alignment is held through the whole installation rather than checked once at the start. Choose standard definition for piles and augers under 13 feet or high definition for anything longer, then pick the harness length that reaches from the drive to your cab.
Key Features of the DiggAlign Auger Alignment System
- Two resolutions — standard definition reads in 2 degree increments; high definition reads in 0.5 degree increments
- Shows misalignment fore and aft and left to right on the in-cab display
- Can be calibrated for angles up to 20 degrees, for work that is deliberately off vertical
- Dual supply cable for 12V and 24V machines
- Four harness lengths — 3 m, 6 m, 12 m and 15 m, to suit the machine
- Suits drilling, screw piling and core barrelling
- Display unit 120 mm long, 93 mm wide and 35 mm high; 146 mm overall
- Can be retrofitted to existing drives, per Digga; ordered with a new drive, Digga fits it at the factory
Standard or High Definition?
| Definition | Reads in | Digga recommends it for |
|---|---|---|
| Standard Definition | 2 degree increments | Piles and augers under 13 ft long |
| High Definition | 0.5 degree increments | Piles and augers over 13 ft long |
The reason is geometry. The longer the pile, the further its tip wanders for every degree it leans, so a small angle that is harmless on a short fence-post auger becomes a real miss at the bottom of a long pile. High definition resolves that smaller angle.
Choosing the Harness Length
| Harness Length | Approx. in feet | Typical fit |
|---|---|---|
| 3M Harness | 10 ft | Short run from drive to cab |
| 6M Harness | 20 ft | Mid-size machines |
| 12M Harness | 40 ft | Large excavators |
| 15M Harness | 50 ft | The longest booms |
Measure the cable route from the drive along the boom to the cab, allowing slack for the boom to move through its full range, and choose the harness that covers it.
What Comes in the DiggAlign Kit
- DiggAlign display and sensor in the definition you select
- Extension harness in the length you select
- Dual 12V / 24V supply cable
Which Drives and Machines Does DiggAlign Suit?
Digga states that DiggAlign suits all machinery through its range of harness lengths and can be retrofitted to existing drives. It is built for excavator-mounted drilling and piling, where the auger or pile is long enough that small angles matter. Add the kit to your cart to see delivered pricing for your address; enter your machine and drive with the order and we confirm the setup before it ships.
On delivery: check the package before you sign for it. Note any damage on the delivery receipt or bill of lading at the time of delivery, photograph it, and email support@eskidsteer.com — a clean signature makes a carrier claim much harder to win.
DiggAlign Auger Alignment System Questions, Answered
How is DiggAlign different from HALO?
HALO is a ring of lights built into the drive hood that the operator reads by looking at the drive, and it reads plumb to ±0.25 degrees. DiggAlign is an inclinometer with an in-cab display that shows the lean fore and aft and side to side, can be calibrated for angles up to 20 degrees, and is aimed at piling and long augers. For HALO power parts, see the HALO battery and power kits.
Do I need standard or high definition?
Digga's rule is length: standard definition for piles and augers under 13 feet, high definition for anything over 13 feet. If you drill both, high definition covers both.
Can DiggAlign be added to a drive I already own?
Yes. Digga states it can be retrofitted to existing drives. If you are buying a new Digga drive at the same time, Digga fits it at the factory.
Does it work on 24V machines?
Yes. The supply cable is dual 12V and 24V.
Can it guide an angled pile?
Yes. DiggAlign can be calibrated for angles up to 20 degrees, so it can hold a deliberate lean rather than only vertical.
