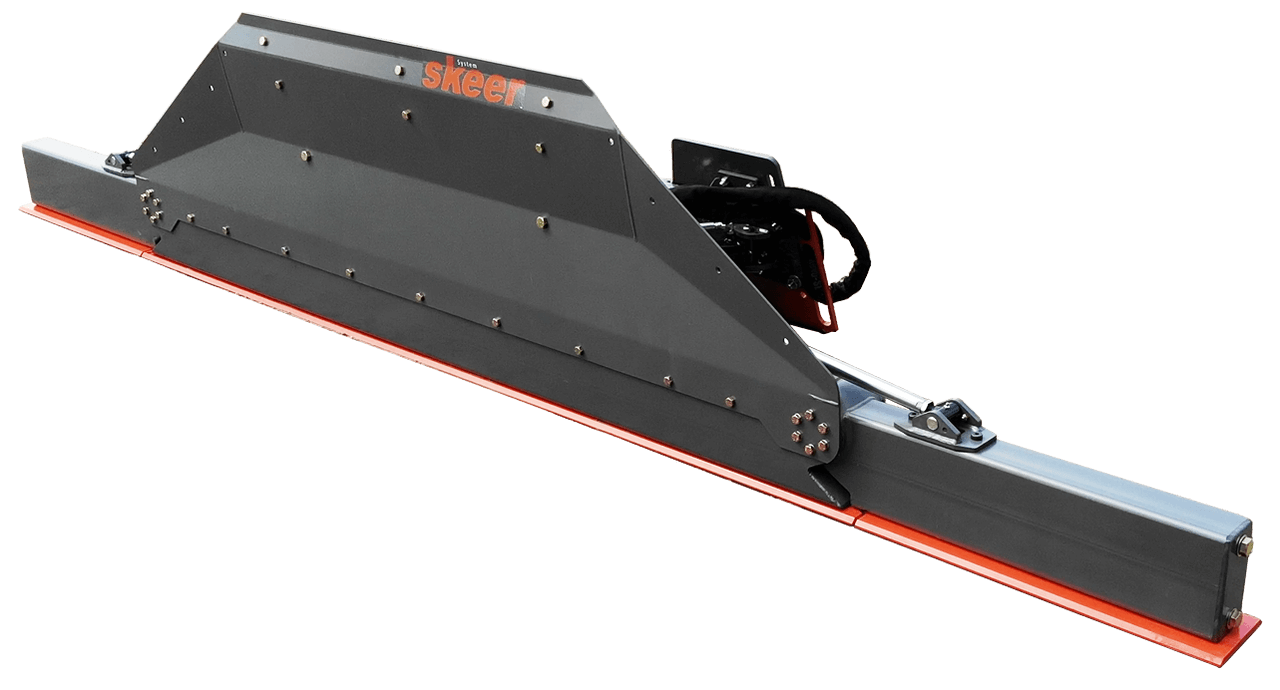

Pro Plus OS Skid Steer Grader Attachment - Skeer

📘 Overview

Skeer's widest skid steer motor grader attachment, the Pro Plus OS, extends an 8.4-foot centre beam that extends to 13.4 feet on hydraulic wings, on a machine of 90 HP or more. It is the oversized version of the Pro Plus, and the horsepower requirement is the thing to check first - this blade is matched to the largest compact track loaders rather than a mid-size machine. Like the Pro Plus it is a 4-way blade, pivoting horizontally and vertically up to 60 degrees with no side-to-side tilt plate; the 6-way version is a separate listing. Two fully adjustable independent wings can grade at an angle while the base stays level, so a crowned road or a shoulder and its pad are cut together, and both retract hydraulically so the blade still travels. The dynamic floating base adapts to the terrain continuously instead of asking the operator to correct blade height, and the flat sharp knife profile gives the surface finish while resisting digging and holding. The whole unit is built from Hardox 450. This is a single-configuration listing with no size or hand to select.

The Pro Plus OS is the widest skid steer road grader attachment Skeer builds, and at 13.4 feet it covers ground in one pass that a conventional skid steer grader attachment cannot reach at all. Contractors weighing it against a 6 way dozer blade are comparing different capabilities rather than different sizes: the OS trades side-to-side tilt for width. Working as a skid steer driveway grader on long approaches, or as a large-format skid steer leveler on lot and roadway work, no other Skeer skid steer grader moves as much material per pass.

⚙ Key Features of the Skeer Pro Plus OS Skid Steer Motor Grader Attachment

• 8.4 ft centre beam extending to 13.4 ft — The widest working width in the Skeer skid steer range, put down in a single pass on wide pads, roadways and lot work.
• Two independent hydraulic wings — Each wing adjusts on its own while the base stays level, so an angled shoulder and a flat centre are formed in one pass rather than two.
• 4-way control, 60 degree pivot — The blade pivots horizontally and vertically up to 60 degrees. Side-to-side tilt is the 6-way tilt plate model, not this one.
• Dynamic floating base — The base tracks the terrain continuously and provides traction to ground level, which removes the constant blade-height correction a rigid blade demands.
• Patented traction level adjustment — References the cutting edge to the bottom of the tracks with the loader arms down, so the blade returns to grade every time it is set on the ground.
• Flat sharp knife design — Produces the surface finish while resisting digging and holding, and cuts in reverse as well as forward.
• Hardox 450 construction — Built from abrasion- and impact-resistant Hardox 450 for the loads a 90 HP machine puts through a 13.4 ft blade.
• Electrical controls included — In-cab electrical controls and harness ship with the unit, so wing and blade functions are on the joystick.
• Laser assist ready — Provision for a laser receiver and mast is built in, so laser indication can be added without changing the attachment.

🔑 Why Contractors Choose the Skeer Pro Plus OS

• The widest single pass on a skid steer — 13.4 feet of working width means fewer passes and fewer overlap seams on a large pad, which is where the hours and the fuel go.
• Matched to a large CTL you already own — At 90 HP minimum the OS is specified for the biggest compact track loaders, so a contractor running a large machine is not under-blading it.
• Crown and shoulder formed together — Independently angled wings cut the fall at the edges while the centre stays level, removing the separate trim pass a fixed blade needs.
• Retracts for transport — Hydraulic wings pull in from the seat, so a 13.4 ft blade still travels on a standard trailer and moves through a site gate.
• Rough and finish from one attachment — 60 degrees of pivot in both planes covers bulk material moving and final trim, so the blade stays on the machine for the whole job.

📊 Skeer Pro Plus OS Specifications

📋 Options and Accessories for the Skeer Pro Plus OS

• Electrical harness and Bobcat adapter — On the OS the harness carries wing extension and retraction as well as blade pivot, so it is not an optional extra - it is included. A Bobcat machine needs the 7-to-14 pin adapter in addition, because its connector differs from the one the Skeer controls use.
• Side plate kit — Side plates keep material in front of the blade instead of spilling past the wing ends when carrying rather than cutting.
• Topcon LS-B200W 360 degree laser receiver — Reads the transmitter beam from any direction, so the machine does not have to stay oriented to the laser.
• Topcon RL-HV2S dual slope laser transmitter — Sets slope on two axes at once for crowned pads and compound falls.
• HD adjustable tripod with 16 ft aluminium rod — Heavy-duty adjustable tripod and grade rod for setting the transmitter and checking grade.
• Extended mast — Holds the laser receiver at the height the transmitter beam is set to.

🚜 Which Machines Fit the Skeer Pro Plus OS?

The Skeer Pro Plus OS mounts on a Universal Quick Attach (SSQA) plate, the standard mount fitted to skid steer loaders and compact track loaders, including:

Compatibility is decided by mount type rather than brand. Your machine needs a standard SSQA plate, 18-25 GPM standard-flow auxiliary hydraulics, and a minimum of 90 HP. The electrical side is brand-sensitive: the universal wiring harness covers John Deere, Caterpillar, Case, Gehl, Kubota, Takeuchi, ASV and New Holland among others, while Bobcat machines use a different connector and take the Bobcat harness. Everything needed to confirm fitment is on this page — add it to your cart to check delivered pricing for your address.

❓ Skeer Pro Plus OS Questions, Answered
