Hydraulic flow
18-25 GPM standard flow
Finish
Powder coated
2D accuracy
To 1/10 in
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🔒1-year warranty
🔩Hardox 450 edge
📘 Overview

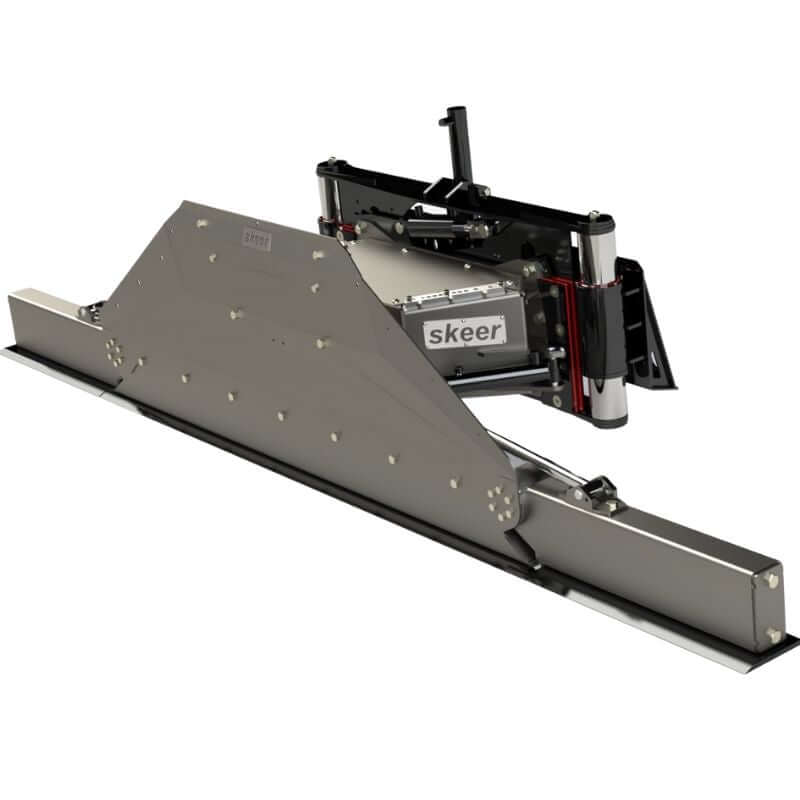

This is the Skeer laser grader for skid steer built machine-control ready, accurate to 1/10 of an inch in 2D, and the choice you make is the blade: 7 ft Pro, 8.4 ft Pro, Pro Plus or Pro Plus OS. Unlike the laser-indicator blades elsewhere in the range, an MCR unit does not just tell the operator they are off grade - it is built with a hydromechanical interface and a 10-inch vertical stroke so a guidance system can move the blade automatically, and it will run in manual, laser-assisted or fully laser-guided mode. Machine horsepower sets your options: the 7 ft Pro needs 60 HP, the 8.4 ft Pro 65 HP, the Pro Plus 75 HP and the Pro Plus OS 95 HP. Every unit ships with the complete levelling beam, the hydromechanical interface for vertical and angular movement, all hydraulic lines, fittings and components, and a triangular equipment holder - in other words everything needed to add guidance. The guidance device itself is not included: laser, RTS and GPS/GNSS are sourced separately or added here as options, and the unit cannot grade automatically without one.
A skid steer laser grader attachment and a machine-control unit are not the same purchase, and the difference is worth being clear about before you spend. A laser grader attachment for skid steer work indicates to the operator; a 2d machine control unit corrects the blade itself. If you have priced a laser grading system for skid steer use and found the achievable tolerance short of what the job specifies, this is the step up - full skid steer laser grading with automatic blade movement rather than an operator alarm. Skeer builds every laser grader in the range on the same beam, so the blade geometry is unchanged.
⚙ Key Features of the Skeer Laser Grader for Skid Steer
- Accurate to 1/10 of an inch in 2D — The 2D machine control ready blade holds a tenth of an inch, which is the tolerance that makes a spec-driven pad signable rather than a re-work.
- Three operating modes from one blade — Runs manual, laser-assisted or fully laser-guided, so the same attachment covers a rough site and a finish tolerance job.
- Hydromechanical interface for automated movement — The interface allows vertical and angular blade movement under control of a guidance system - this is the part a laser-indicator blade does not have.
- 10 inch vertical stroke — Ten inches of powered up and down travel gives the control system room to correct without the operator lifting the loader arms.
- Four blade sizes on one platform — The 7 ft Pro, 8.4 ft Pro, Pro Plus and Pro Plus OS beams are all available machine-control ready, so precision is not restricted to one width.
- Guidance-agnostic hydraulics — All the hydraulic components needed to add a guidance device are fitted, so the unit works with a laser, an RTS or a GPS/GNSS system rather than locking you to one.
- 13 degree tilt and 30 degree swivel — The same blade geometry as the manual range - slope and crown are cut by the blade, now under automatic control.
- Flat blade design — The flat profile significantly reduces the chance of digging and holding, and it does away with the wheeled grader-blade designs that trail the surface rather than referencing it.
- Triangular equipment holder included — The mounting structure for the guidance hardware ships with the unit rather than being a separate fabrication job.
🔑 Why Contractors Choose the Skeer Machine Control Ready Grader
- Automatic correction rather than an operator alarm — A laser-indicator blade tells the operator to fix it; an MCR blade is built to be corrected by the control system, which is what removes operator skill as the limit on finish tolerance.
- Buy the blade now, the guidance when the job pays for it — Because all the hydraulics and the equipment holder are fitted as standard, guidance can be added later - a real option given a 2D control solution costs more than some attachments.
- Works with the guidance brand you already own — Guidance-agnostic hydraulics mean an existing laser, RTS or GPS/GNSS system can be used instead of being replaced.
- Runs manual on the days it has to — Manual mode means a control fault or a job that does not warrant setup does not put the attachment out of action.
- Tenth-of-an-inch work without a motor grader — Holding 1/10 inch on a skid steer covers pad and lot work that would otherwise need a dedicated grader on site.
📊 Skeer Machine Control Ready Grader Specifications
| Specification | Value |
|---|---|
| Model range | Skeer Machine Control Ready (MCR) |
| Blade options | 7' Pro, 8.4' Pro, Pro Plus, Pro Plus OS |
| 2D accuracy | To 1/10 in |
| Operating modes | Manual, laser-assisted, laser-guided |
| Vertical travel | 10 in stroke |
| Tilt | 13 degrees each side |
| Swivel | 30 degrees |
| Interface | Hydromechanical, vertical and angular movement |
| Guidance device | Not included - laser, RTS or GPS/GNSS added separately |
| Mount | Universal skid steer quick attach (SSQA), adjustable |
| Hydraulic flow | 18-25 GPM standard flow |
| Finish | Powder coated |
| Warranty | 1 year parts and labour (Skeer System) |
| Included | Levelling beam, hydromechanical interface, all hydraulic lines, fittings and components, triangular equipment holder |
🔄 Skeer Machine Control Ready Grader Specifications by Model
| Specification | 7' Pro | 8.4' Pro | Pro Plus | Pro Plus OS |
|---|---|---|---|---|
| Centre beam width | 7 ft | 8.4 ft | 7 ft | 8.4 ft |
| Maximum working width | 7 ft | 8.4 ft | 12 ft | 13.4 ft |
| Hydraulic wings | None | None | 30 in each side | 30 in each side |
| Minimum machine horsepower | 60 HP | 65 HP | 75 HP | 95 HP |
| Vertical travel | 10 in stroke | 10 in stroke | 10 in stroke | 10 in stroke |
| Tilt / swivel | 13 deg / 30 deg | 13 deg / 30 deg | 13 deg / 30 deg | 13 deg / 30 deg |
📋 Options and Accessories for the Skeer Machine Control Ready Grader
- MCR electrical harness and Bobcat adapter — Machine control units take a dedicated MCR harness rather than the standard blade harness, and it is supplied with the attachment. Bobcat machines need the 7-to-14 pin adapter as well.
- Leica iCON iGD2 2D system with Skeer installation kit — The full 2D control package - control screen and computer, junction box and cables - supplied with the Skeer install kit so it mates to the blade's hydromechanical interface.
- Leica MLS820 laser receivers — Receivers for the Leica 2D system. Two receivers rather than one is what lets the system read both ends of the blade and hold slope, not just height.
- Leica 2D and 3D ready packages — Leica ready packages are offered in 2D, combined 2D/3D, and new-generation SJB50 form, including GNSS and total station 3D kits and a dual receiver connection.
- Trimble Earthworks ready kit with Skeer installation kit — For sites already standardised on Trimble Earthworks, a ready kit and matching Skeer installation kit are available so the blade drops into an existing Trimble workflow.
- Topcon 3D ready kit (3DMC2) — A Topcon 3D ready kit including installation, for crews running Topcon machine control.
- Topcon RL-HV2S dual slope laser transmitter — Sets slope on two axes at once, which is what a crowned pad or a compound fall needs the control system to follow.
- HD adjustable tripod with 16 ft aluminium rod — Heavy-duty adjustable tripod and grade rod for setting the transmitter and checking grade across the site.
- Extended mast and side plate kit — An extended mast carries a receiver at transmitter-beam height; the side plate kit keeps material in front of the blade when carrying across a pad.
🚜 Which Machines Fit the Skeer Machine Control Ready Grader?
The Skeer Machine Control Ready Grader mounts on a Universal Quick Attach (SSQA) plate, the standard mount fitted to skid steer loaders and compact track loaders, including:
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
Compatibility is decided by mount type rather than brand. Your machine needs a standard SSQA plate, 18-25 GPM standard-flow auxiliary hydraulics, and a minimum of 60 HP for the 7 ft Pro, 65 HP for the 8.4 ft Pro, 75 HP for the Pro Plus and 95 HP for the Pro Plus OS. The electrical side is brand-sensitive: the universal wiring harness covers John Deere, Caterpillar, Case, Gehl, Kubota, Takeuchi, ASV and New Holland among others, while Bobcat machines use a different connector and take the Bobcat harness. Everything needed to confirm fitment is on this page — add it to your cart to check delivered pricing for your address.
On delivery: inspect the crate before you sign the Bill of Lading and note any damage on it. A signed clean BOL makes a freight damage claim very hard to pursue, so photograph anything that looks wrong before the driver leaves.
❓ Skeer Machine Control Ready Grader Questions, Answered
Which machine control blade should I choose?
Machine horsepower narrows it first: the 7 ft Pro needs 60 HP, the 8.4 ft Pro 65 HP, the Pro Plus 75 HP and the Pro Plus OS 95 HP. Then decide on width - the two Pro beams are fixed at 7 ft and 8.4 ft, while the Pro Plus extends to 12 ft and the Pro Plus OS to 13.4 ft on hydraulic wings. Wings earn their keep on open pads and roadway work.
Is the laser or GPS system included?
No. The guidance device - laser, RTS or GPS/GNSS - is not included, and the blade cannot grade automatically without one. What is included is everything needed to add it: the hydromechanical interface, all hydraulic lines, fittings and components, and the triangular equipment holder. Guidance components can be added as options here, including a Leica iCON iGD2 2D solution and a Leica MLS820 two-receiver kit.
How accurate is the Skeer machine control grader?
The 2D machine control ready blade is accurate to 1/10 of an inch. That tolerance is what separates a pad you can pour on from one that needs a re-work pass.
What is the difference between this and a laser-ready Skeer blade?
A laser-indicator blade such as the Grading Blade with Tilt Plate tells the operator when the blade is off grade, and the operator makes the correction. The Machine Control Ready blade adds a hydromechanical interface and a 10-inch vertical stroke so the guidance system moves the blade itself. It is the difference between an alarm and an autopilot.
Can I use the machine control blade without a guidance system?
Yes. The Skeer MCR blade runs in manual mode as a conventional 6-way grading blade, with 13 degrees of tilt and 30 degrees of swivel. Laser-assisted and laser-guided modes become available once a guidance device is fitted.
Will it work with a guidance brand I already own?
The MCR unit is supplied with all the hydraulic components needed to add a guidance device and is not tied to one brand, so an existing laser, RTS or GPS/GNSS system can generally be used. The optional packages offered here are Leica, and the transmitter option is Topcon.
Do I need one laser receiver or two?
Two. The optional receiver kit supplies two receivers, because reading both ends of the blade is what lets the system hold slope rather than only height. Two extendable masts are also needed for the receivers to sit at the transmitter beam height.
What is a 3D setup and is it available here?
A 3D setup replaces the laser plane with a positioning system - typically RTS or GPS/GNSS - so the blade follows a digital model rather than a single grade. The MCR blade is built 3D ready, but a 3D installation needs components specified against your site and machine, so it is quoted rather than sold as a configured option on this page. Message us on chat or email support@eskidsteer.com and we can put the specification together.
Which wiring harness do I need?
The universal harness is standard and fits John Deere, Caterpillar, Case, Gehl, Kubota, Takeuchi, ASV and New Holland machines among others. Bobcat loaders use a different electrical connector and take the Bobcat harness. The harness is a required selection at checkout.
What is covered by the warranty?
Skeer System provides 1 year of parts and labour on all products sold. Cutting edges and polymer pivot components are wear items and are treated as consumables. Guidance hardware carries its own manufacturer warranty.
How does the machine control grader ship?
These units ship by LTL freight. Shipping is calculated at checkout - add your configuration to the cart and enter your delivery address, and the freight charge is shown before you complete the order. Lift gate service is available for residential deliveries and can be selected at checkout.
