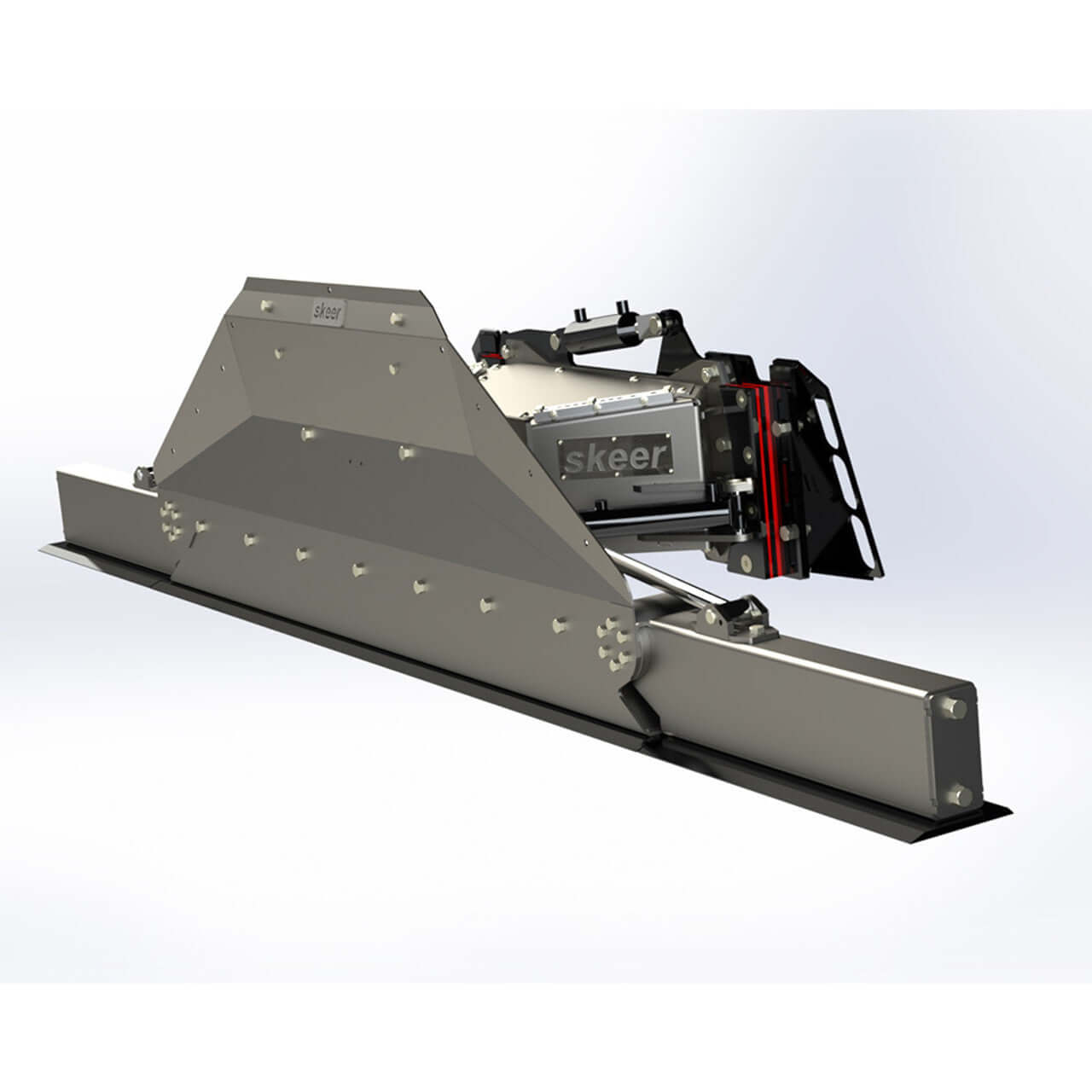

Skid Steer Grading Blade with Tilt Plate - Skeer

📘 Overview

This is the Skeer 6 way dozer blade for skid steer range, and the choice you make is which blade sits on the tilt plate: 7 ft Pro, 8.4 ft Pro, Pro Plus or Pro Plus OS. The tilt plate is exactly what separates a 6-way blade from the 4-way models sold elsewhere in the range - it adds 13 degrees of tilt to each side and 30 degrees of swivel on top of the 60-degree pivot, operated from a button on the joystick, with electrical controls included. That is the difference between pushing material flat and cutting a designed slope, a crown or a drainage fall. Your machine decides how far up the range you can go: the 7 ft Pro runs on 50 HP, the 8.4 ft Pro on 60 HP, the Pro Plus on 60 HP, and the Pro Plus OS on 90 HP, with the two Pro Plus blades adding 30-inch hydraulic wings that extend to 12 ft and 13.4 ft. Underneath the tilt plate every blade carries the same Skeer fundamentals: patented traction level adjustment, a patented floating base that grades without wheels, a Hardox 450 removable cutting edge, polymer pivots and a hydraulic safety feature. Every configuration is laser ready.

Crews shopping for a 6 way dozer blade, or specifically a skid steer 6 way blade, are usually looking for exactly this: a skid steer grading blade that tilts. A conventional skid steer dozer blade angles and lifts but cannot hold a cross-slope, and a fixed skid steer grader blade cannot cut fall at all. Add a receiver and a mast and the same unit becomes a laser grader for skid steer work without any change to the blade. Every Skeer configuration on this page shares the patented traction level adjustment and floating base underneath the plate.

⚙ Key Features of the Skeer 6 Way Dozer Blade for Skid Steer

• 6-way tilt plate, joystick operated — The plate tilts 13 degrees to each side and swivels 30 degrees, controlled from a button on the joystick inside the cab rather than by stopping to adjust turnbuckles.
• Four blade sizes on one plate — The same tilt plate carries the 7 ft Pro, the 8.4 ft Pro, the Pro Plus and the Pro Plus OS, so the blade is matched to your machine rather than the other way round.
• Patented traction level adjustment — The cutting edge is referenced to the bottom of the tracks with the arms at their lowest point, so the blade is at grade when it lands and does not need re-levelling between passes.
• Patented floating base — The floating base holds a level cut without gauge wheels and is what prevents the blade from grabbing and digging in.
• Hardox 450 removable cutting edge — Abrasion-resistant Hardox 450 that unbolts for replacement rather than requiring the blade to be sent out for a rebuild.
• Polymer pivots — Pivot movements run on high-grade polymer rather than steel on steel, which reduces wear and keeps the pivots tight for longer.
• Hydraulic safety feature — A hydraulic safety device is built into the blade circuit to protect the cylinders in an overload.
• Laser ready across every configuration — Every blade on this listing accepts a laser receiver and mast, so laser indication can be added at order time or years later without swapping the attachment.
• Electrical controls included — The in-cab electrical controls and harness are supplied with the unit for a wide range of machines.
• Powder coated finish — Powder coat resists chipping and corrosion from abrasive material and washdown.

🔑 Why Contractors Choose the Skeer Grading Blade with Tilt Plate

• Slope and crown without tipping the machine — Tilting 13 degrees each way at the plate lets the blade cut a fall or a crown while the loader drives level, which is the difference between a driveway that drains and one that ponds.
• One product page, four machine sizes — A 50 HP loader and a 90 HP loader both have a correct answer here, so the blade is chosen against the carrier instead of forcing a compromise.
• Laser can be a later decision — Because the laser provision is built into every configuration, the receiver, mast and transmitter can be added when a spec-driven job justifies them rather than being bought up front.
• Fewer stops per pad — Joystick-operated tilt means the slope is adjusted from the seat, so a change in fall does not cost a stop, a dismount and a manual adjustment.
• Wear parts unbolt — The Hardox 450 edge and polymer pivots are designed to be replaced in the yard, which keeps a worn blade out of a workshop queue.

📊 Skeer Grading Blade with Tilt Plate Specifications

🔄 Skeer Grading Blade with Tilt Plate Specifications by Model

📋 Options and Accessories for the Skeer Grading Blade with Tilt Plate

• Electrical harness and Bobcat adapter — Tilt, swivel and wing functions all run through the blade harness, which is supplied with the unit. Bobcat loaders use a seven-pin connector rather than the fourteen-pin one the controls expect, so a Bobcat machine needs the 7-to-14 pin adapter for any of those functions to reach the joystick.
• Side plate kit — Side plates keep material in front of the blade rather than spilling out the ends, which is what you want when you are moving material across a pad instead of only cutting.
• Topcon LS-B200W 360 degree laser receiver — A 360-degree receiver picks up the transmitter beam from any direction, so the operator does not have to keep the machine oriented to the laser.
• Topcon RL-HV2S dual slope laser transmitter — A dual slope transmitter sets slope on two axes at once, which is what a crowned pad or a compound fall needs.
• HD adjustable tripod with 16 ft aluminium rod — A heavy-duty adjustable tripod and grade rod to set the transmitter and check grade across the site.
• Extended mast — The mast carries the receiver above the blade at the height the transmitter beam is set to; the receiver cannot be mounted correctly without one.
• Futtura LT-850 single slope laser transmitter — A single-slope transmitter for jobs that need fall on one axis only - a lower-cost route into laser work than the dual slope unit.

🚜 Which Machines Fit the Skeer Grading Blade with Tilt Plate?

The Skeer Grading Blade with Tilt Plate mounts on a Universal Quick Attach (SSQA) plate, the standard mount fitted to skid steer loaders and compact track loaders, including:

Compatibility is decided by mount type rather than brand. Your machine needs a standard SSQA plate, 15-25 GPM standard-flow auxiliary hydraulics, and a minimum of 50 HP for the 7 ft Pro, 60 HP for the 8.4 ft Pro and the Pro Plus, and 90 HP for the Pro Plus OS. The electrical side is brand-sensitive: the universal wiring harness covers John Deere, Caterpillar, Case, Gehl, Kubota, Takeuchi, ASV and New Holland among others, while Bobcat machines use a different connector and take the Bobcat harness. Everything needed to confirm fitment is on this page — add it to your cart to check delivered pricing for your address.

❓ Skeer Grading Blade with Tilt Plate Questions, Answered
