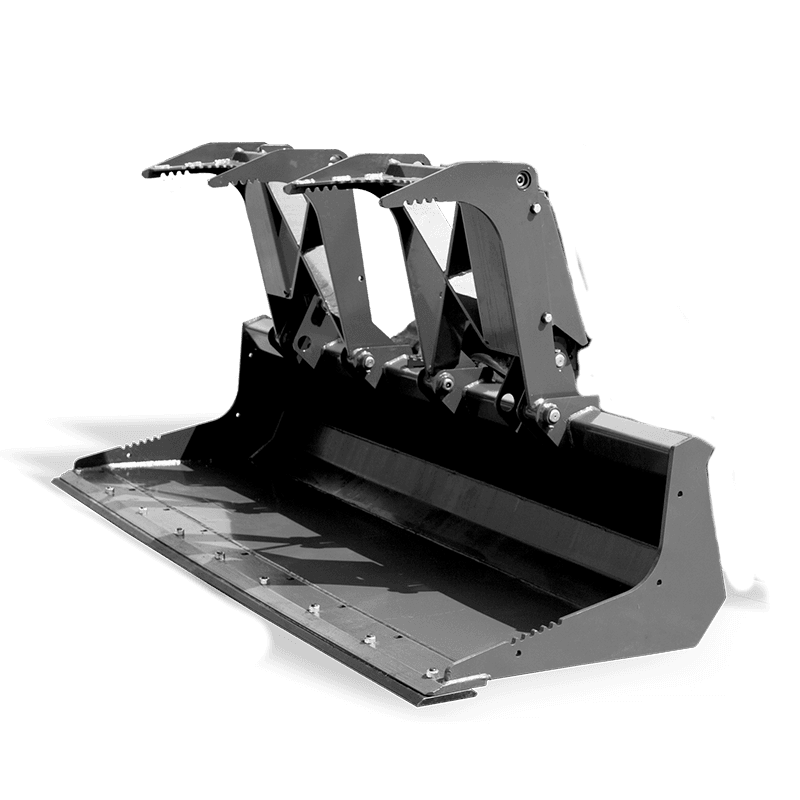

Shop the Heavy Duty Low Profile Scrap Grapples for Skid Steers - WAIN ROY
Description: HLSG-SERIES. HEAVY-DUTY, LOW-PROFILE QUICK ATTACH SCRAP GRAPPLE.
Features:
- Skid Steer (SAE J2513) Quick Attach System
- Made with grade 80 steel – 2x stronger than mild steel – reducing the weight but maintaining the strength required for any skid steer or tractor application
- Single, beveled cutting edge with back-up bar
- Twin hydraulic cylinders allow for independent clamping on uneven material, while cylinder placement improves visibility.
- Cylinder stroke control standard for long cylinder life
- Cylinder guards standard, protecting rods and hoses for longer life
- Optional bolt-on, double beveled edge, and end plate extensions enhance versatility
- Greasable Pivots
- Hydraulic hoses and QD couplers (per ISO 16028) included
- SAE Rated Operating Capacity: up to 4800 lbs.
- Length: 35”; Height: 27”
- Grapple Opening: 39”; Grapple Width: 19”
- Cylinder Bore: 2.76”; Cylinder Rod: 1.38”
- Pivot Pins: 1.25”
- Clamping Force per Grapple: 3,000 lbs. @ 3,000 psi
Specifications:
| Root Grapple |
Width |
Heaped Capacity (Cu. Ft.) |
LBS |
| HLSG66 |
66" |
15.1 |
773 |
| HLSG73 |
73" |
16.9 |
823 |
| HLSG78 |
78" |
18.1 |
873 |
| HLRG84 |
84" |
19.5 |
923 |
