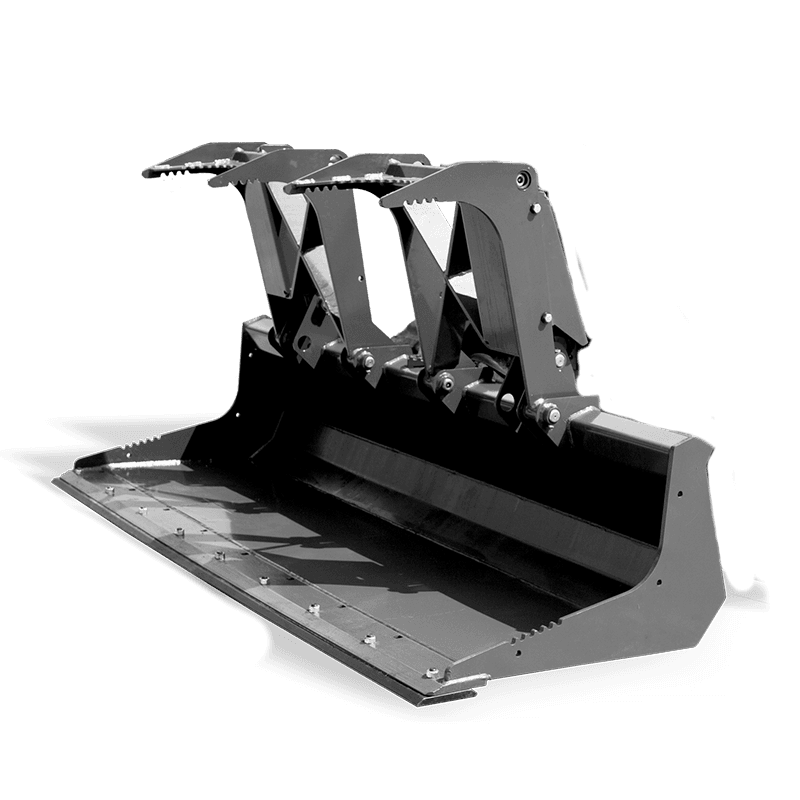

Shop the Heavy Duty Low Profile Root Grapples for Skid Steers - WAIN ROY
Description: HLRG-SERIES. HEAVY-DUTY, LOW-PROFILE QUICK ATTACH ROOT GRAPPLES.
Features:
- Skid Steer (SAE J2513) Quick Attach System
- Made with grade 80 steel – 2x stronger than mild steel – reducing the weight but maintaining the strength required for any skid steer or tractor application
- Woods® proprietary serrated cutting edge holds fast to trees and debris
- Unique design allows smooth grading of surfaces after removing debris
- Twin hydraulic cylinders allow for independent clamping on uneven material, while cylinder placement improves visibility
- Cylinder stroke control standard for long cylinder life
- Cylinder guards standard, protecting rods and hoses for longer life
- Optional slat kit adds versatility by reducing tine spacing when the application requires
- Greasable Pivots
- Hydraulic hoses and QD couplers (per ISO 16028) included
- SAE Rated Operating Capacity: up to 4800 lbs.
- Length: 34”; Height: 27”
- Grapple Opening: 37”; Grapple Width: 19”
- Cylinder Bore: 2.76”; Cylinder Rod: 1.38”
- Pivot Pins: 1.25”
- Clamping Force per Grapple: 3,000 lbs. @ 3,000 psi
Specifications:
| Root Grapple |
Width |
Tines x Spacing |
LBS |
| HLRG65 |
65" |
10 x 6.75" |
660 |
| HLRG72 |
72" |
11 x 6.75" |
680 |
| HLRG79 |
79" |
12 x 6.75" |
700 |
| HLRG86 |
86" |
13 x 6.75" |
720 |
