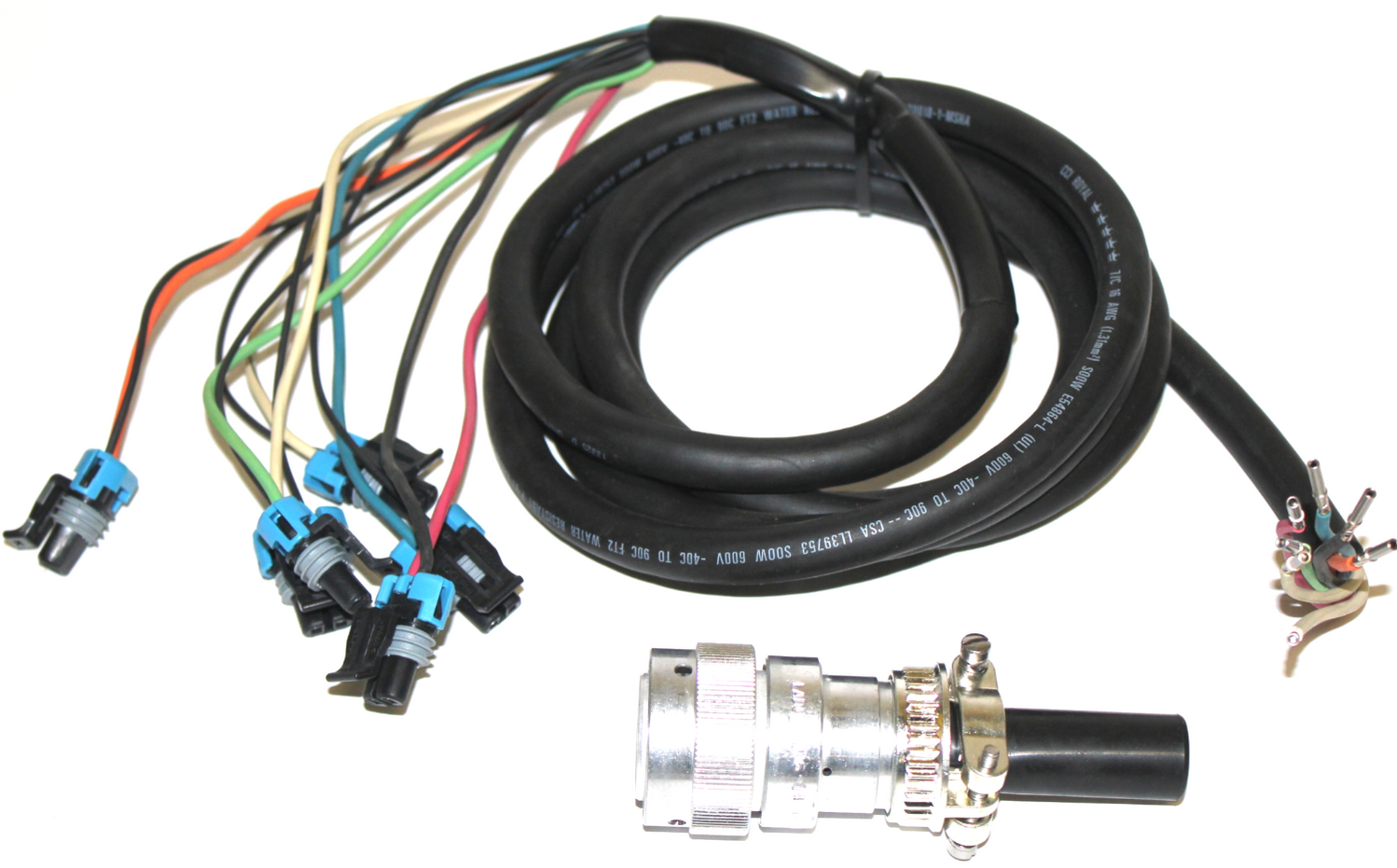

Deutsch HD 14 Pin Female to Bobcat Grader - Skid Steer Genius
Deutsch HD 14 Pin Female to Bobcat Grader - Skid Steer Genius
Deutsch HD 14 Pin Female to Bobcat Grader - Skid Steer Genius
Deutsch HD 14 Pin Female to Bobcat Grader - Skid Steer Genius

Deutsch HD 14 Pin Female to Bobcat Grader - Skid Steer Genius

SKU: SG-BPH-14-10-9DP
truck In stock

-$58.00 $387.99

List Price: $445.99

Connectors: Delphi
Subtotal: $387.99

Guaranteed Fit

Fast Shipping

Hassle-Free Returns

Deutsch HD 14 Pin Female to Bobcat Grader - Skid Steer Genius

Deutsch HD 14 Pin Female to Bobcat Grader - Skid Steer Genius

$445.99 $387.99

Deutsch HD 14 Pin Female to Bobcat Grader - Skid Steer Genius

$445.99 $387.99
Connectors: Delphi

Compatibility

It is intended to connect machines such as Case, Gehl, Kubota, JCB/Volvo, Mustang, Takeuchi, New Holland, John Deere, Yanmar, and Caterpillar (after 2014) to compatible Bobcat-branded attachments.

The harness is pinned to work with the Super Controller by default. Re-pinning may be required for certain custom applications.

Functions

What is this 10-output bypass harness designed for?

This harness is built to operate Bobcat® 96" and 108" graders and other high-function attachments that require more than six controlled outputs.

No. This harness is designed specifically to be used alongside the Super Controller and is not intended to function properly without it.

Most machines do not have enough control buttons or electrical outputs to operate all grader functions such as hydraulic side shift or laser receivers without an auxiliary controller.

How many outputs does this harness provide?

Does controlling 10 solenoids mean 10 functions?

Not necessarily. Many attachments use two solenoids to operate a single function, so the number of usable functions depends on the attachment’s internal design.

What attachments commonly require this many outputs?

High-function attachments such as Bobcat graders, certain planers, and laser-equipped attachments often require more than six controlled circuits.

Will this harness work if my machine has limited electrical outputs?

The harness can only deliver the outputs your machine is capable of supplying. Machines with limited auxiliary controls may not be able to operate all attachment functions.

Installation

Why can’t most machines run the Bobcat 96" or 108" grader without this setup?

Selecting the wrong connector style can prevent installation and operation, so confirming the connector type before ordering is critical.

Does installing this harness affect machine operation?

Limitations

Cold planers often require seven solenoids. Only machines with sufficient control capability can fully operate them using this harness.

No. This is an aftermarket product and is not manufactured, endorsed, or affiliated with Bobcat®.

No. The harness does not interact with the machine’s internal systems and is designed to operate independently of onboard electronics.

General

Which machines can this harness connect from?

Is this harness a standalone solution?

This harness provides control for up to 10 solenoids.

Why does this harness bypass the attachment electronics?

Some Bobcat-branded attachments use onboard electronic gateway controllers that restrict compatibility. This harness removes that layer and routes control directly to the solenoids.

What connector styles are available on this harness?

Attachments may use different solenoid connector styles. You must identify whether your attachment uses Delphi or Deutsch connectors and select the correct option.

Why is checking the solenoid connector style important?

Is this harness pre-configured for all machines?

Can this harness be used on cold planer attachments?

Is this an official Bobcat® product?

What should I verify before ordering?

Confirm your machine has sufficient controls, verify the attachment’s solenoid count, and identify the correct solenoid connector style to ensure compatibility.

Description caret-down

Description

10-Output Bypass Harness for Bobcat® 96" & 108" Graders (and other attachments that need more than 6 controls)

Use this to run a Bobcat-branded grader/planer (and similar high-function attachments) from many common 14-pin machine platforms such as Case, Gehl, Kubota*, JCB/Volvo, Mustang, Takeuchi, New Holland, John Deere, Yanmar, and Cat (after 2014).


Important: This harness is offered to pair with our Super Controller setup. Many machines listed above simply don’t have enough factory buttons/switches to manage every grader function (including hydraulic side shift and/or laser receiver circuits). Your loader must have sufficient controls before ordering.

Connector note: Bobcat attachments commonly come with two different solenoid connector styles. Please compare your solenoids to the product photos and select the correct version (Delphi or Deutsch) before checkout.

This is the harness many customers have requested specifically to unlock the Bobcat grader for use on other brands. The grader typically routes controls through an onboard gateway/controller so it won’t behave like a standard plug-and-play attachment on non-Bobcat machines. This bypass harness is designed to route the machine’s 14-pin signals directly to the grader/attachment solenoids so you can run the attachment without the original gateway in the middle.

We originally built these for Super Controller users who wanted a clean, dependable way to operate attachments that were otherwise locked to a single brand. The goal is simple: reduce extra electronics, simplify the wiring path, and make the attachment operate like most of the industry expects it to.

This harness ships pinned for our Super Controller configuration. A pin tool and wiring reference are included so advanced users can re-pin for special applications if needed.


What does it do?
Many Bobcat® attachments that use the 7-pin ecosystem rely on a controller/gateway on the attachment side. In many cases, that extra layer isn’t required for basic operation and can become an obstacle when switching machine brands. This harness bypasses that controller and connects the machine’s 14-pin outputs straight to the solenoids so the attachment responds to your controls more directly.

One limitation to understand is the loader’s available outputs. Some machines only provide a small number of electrical circuits from the factory (for example, certain Kubota SVL models have limited outputs unless equipped with enhanced controls). If your machine can’t supply enough circuits, the attachment can’t perform every function no matter which harness you use. As of mid-2014, Kubota added an add-on button control option on some platforms; the Genius Super Controllers can also be used to add more controls in an easier, lower-cost way.

Bobcat® Cold Planers: These typically use 7 solenoids (6 for function control plus one to divert flow from the drum to the control manifold). Most loaders only have enough switches for six controlled outputs, so full planer operation may require an enhanced control setup. We continue to work on additional solutions and brand-specific plug-in options.

This harness is built to manage 10 solenoids. On some Bobcat® attachments, solenoids may be paired, so 10 solenoids does not always equal 10 independent functions. Please verify your attachment’s valve/solenoid layout prior to ordering.


Trademark & affiliation notice: The "Bobcat®" name, logo, and related marks are registered trademarks of Bobcat® Company.

This is not a Bobcat® product and is not endorsed by Bobcat. We are not affiliated with Bobcat, and nothing here is intended to imply otherwise. This harness is designed as an independent solution to bypass the attachment-side controller and connect directly to the control solenoids. It does not communicate with the machine computer; it simply provides a more straightforward wiring path with fewer components, which often means less downtime.
