Description
🔧Bypasses Gateway controller
🛣84 and 96 inch graders
🚜Any 14 pin loader
📘 Overview

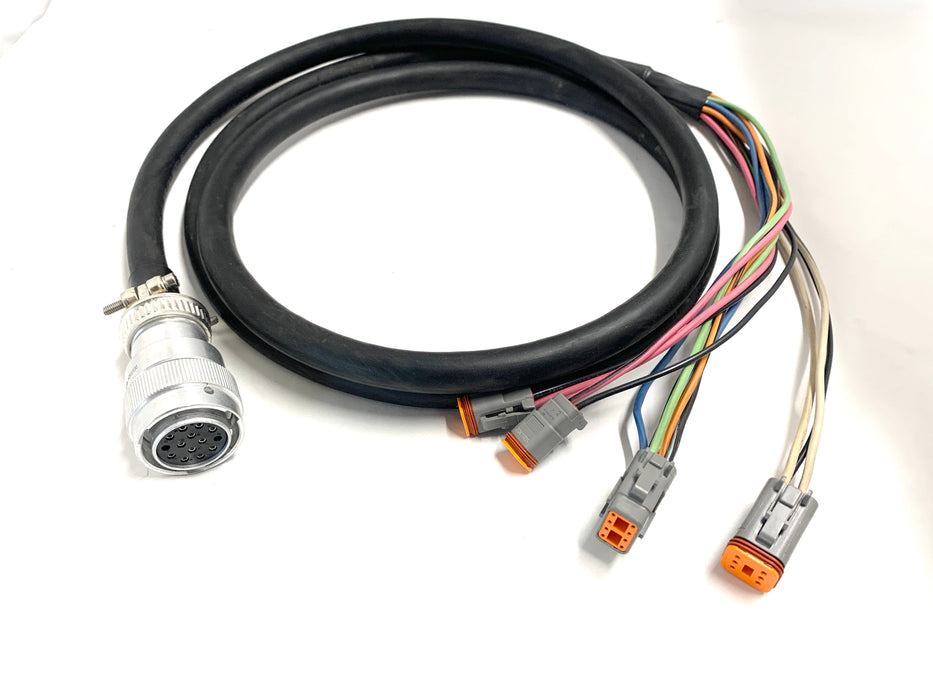

The SG-BPH-GW-100 runs a Bobcat 84-inch or 96-inch grader on a machine that is not a Bobcat. It is a pre-wired bypass harness that goes around the Bobcat Gateway Controller and wires directly to the grader's solenoids, so the attachment operates from the machine's standard 14-pin port.
This harness covers manual grader control. It does not add controls to a machine that does not have enough of them, and it is not the route for laser grade control.
⚙ Key Features of the Grader Adaptor Harness
- Bypasses the Bobcat Gateway Controller on the grader
- Deutsch HD 14-pin female machine-side connector
- Wires directly to the grader solenoids — no dependence on Bobcat's control system
- Pre-wired — supplied ready to connect
🔑 Why a Grader Bypass Harness
- Puts an idle grader back to work — a Bobcat grader becomes usable across the fleet
- No attachment modification — the Gateway controller stays in place, so the grader still works on a Bobcat
- Fits the 14-pin standard — one harness covers most current loader brands
📊 SG-BPH-GW-100 Specifications
| Specification | Value |
|---|---|
| Part number | SG-BPH-GW-100 |
| Machine-side connector | Deutsch HD 14-pin female |
| Attachment side | Direct solenoid leads |
| Function | Bypasses the Bobcat Gateway Controller |
| Grader sizes | 84 inch and 96 inch |
| Manufacturer | Skid Steer Genius |
🔗 What Attachments Does the SG-BPH-GW-100 Suit?
- Bobcat 84-inch graders
- Bobcat 96-inch graders
- Manual grader control only — laser grade control needs a controller instead
🚜 Which Machines Fit the SG-BPH-GW-100?
Any loader with a 14-pin machine port and enough control functions to operate a grader. A grader needs more controls than most attachments, and that is the usual limiting factor rather than the connector.
| Brand | Models |
|---|---|
| Caterpillar D-Series / D3 | 236D, 242D, 246D, 257D, 259D, 262D, 289D, 299D, 259D3, 262D3, 289D3, 299D3 |
| Caterpillar Next Gen | 255, 257, 262, 265, 270, 275, 289, 299 |
| John Deere | 317G, 323E, 325G, 331G, 331P, 333G |
| Kubota SVL | SVL65, SVL75, SVL90, SVL95, SVL97 |
| Takeuchi | TL10, TL12, TL130, TL140, TL150, TL240 |
| Case / New Holland | SR117, SR121, SR200, SR210, SR270, TV370, TV380 |
If your machine does not have enough controls, this harness will not fix that. A Caterpillar 275 running a 108-inch blade, for example, needs controls added to the machine or a CAN PRO controller rather than a bypass harness.
❓ Grader Harness Questions, Answered
Will this let my machine run a Bobcat grader?
It bypasses the grader's Gateway controller so the solenoids can be driven directly from a 14-pin port. Whether your machine can then operate it depends on how many control functions the machine provides — a grader needs more than most attachments.
My machine does not have enough controls — will this harness add some?
No. The harness routes the connection; it does not create control channels. Machines short of controls need them added, or a CAN PRO controller fitted instead.
Can I use it for laser grade control?
No. Laser control changes the requirement entirely and needs a controller rather than a bypass harness. Email us at support@eskidsteer.com or click the chat icon on any page with a photo of the control box on your grader and we will confirm what is needed.
Which grader sizes does it cover?
The 84-inch and 96-inch Bobcat graders.
Does it modify the grader permanently?
No. The Gateway controller stays in place and is bypassed rather than removed, so the grader can still be used on a Bobcat machine.
Will it work on a 108 inch blade?
The harness covers the 84 and 96 inch graders. A 108-inch blade generally needs more control functions than a bypass harness can deliver on its own — a controller is the usual answer.
How do I tell which connector I actually have?
Count the positions, including the empty ones — not the terminals that happen to be fitted. A connector showing seven sockets is very often a 14-position housing with seven installed, which is a different part entirely.
Ordering, Shipping & Returns
Ordering. Add the item to your cart and check out online. Have your machine make, model and serial number to hand so fitment can be confirmed before you order.
Shipping. Calculated at checkout — enter your delivery address and the charge is shown before you complete the order.
Returns. Within 7 days of receipt, item new and unused. A 25% restocking fee applies and return shipping is the customer's responsibility unless the error was ours.
Not sure it fits? Email us at support@eskidsteer.com or click the chat icon on any page before ordering — confirming your connector type is the simplest way to avoid a return.
📥 SG-BPH-GW-100 Documentation
🎥 Grader Harness Video
Watch Product Video on YouTube
