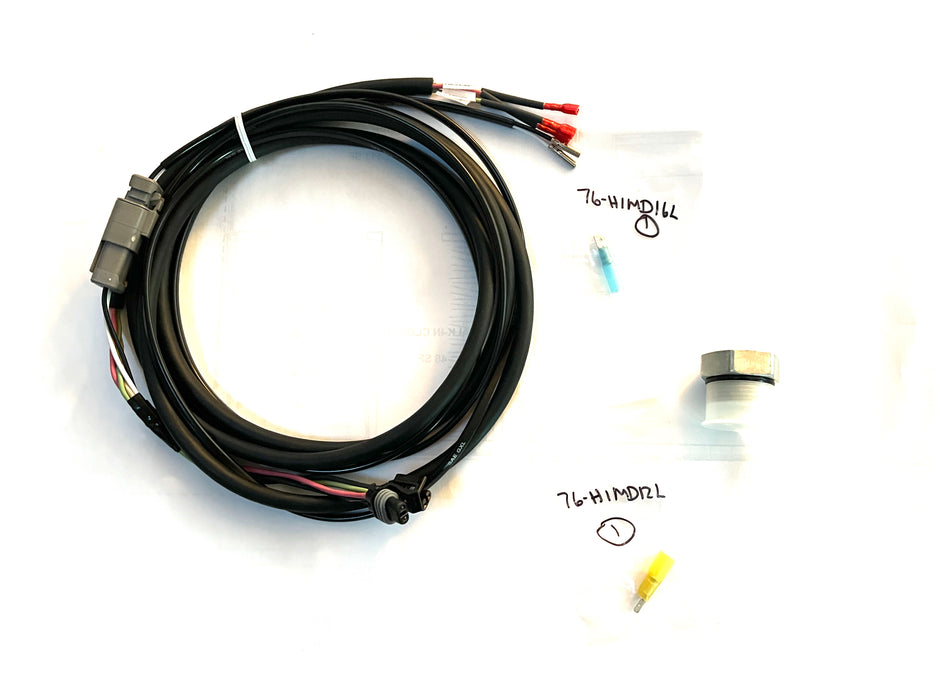

For Bobcat Chippers that have a RACS installed. This kit allows the operator to bypass the RACS but still use the stop start lever to turn the drum rotation on and off in the forward and reverse direction.
This harness requires a Plug And Play harness as well to connect to your machine. The plug and play connector will be pinned out to provide a keyed power on source so the push/pull button can be used to provide power to the hydraulic control solenoid. It is the customers responsibility to move one of the momentary pins to the K pin for keyed constant power. This only works on 14 pin equipped machines and will not work with John Deere prior to 2020 where pin K is not installed.
Does not work with 8 pin machines like ASV,Terex and Cat A,B,C Series.
Instructions:
There are two things that need to happen to make this work.
1: Replace the solenoid brake with the supplied plug
2: Remove the CAN controller and harness so you can replace it with our bypass harness.
PLEASE CLICK THIS LINK TO WATCH THE INSTALLATION VIDEO
This kit allows you to bypass the RACS system on compatible Bobcat chippers while still retaining forward and reverse drum control using the stop/start lever.
No. This kit only bypasses the RACS system and restores basic drum control. It does not add or replace attachment control functions.
This kit is designed for Bobcat chippers equipped with a 14-pin electrical system.
No. This kit does not work on 8-pin machines such as ASV, Terex, or Cat A, B, and C series machines.
This kit will not work on John Deere machines manufactured prior to 2020 because Pin K is not present.
Yes. A plug-and-play harness is required to connect the kit to the machine.
Yes. One momentary pin must be moved to the K pin location to provide keyed constant power.
No. The electrical system on these machines is digital and cannot be rewired to provide attachment control without a dedicated controller.
