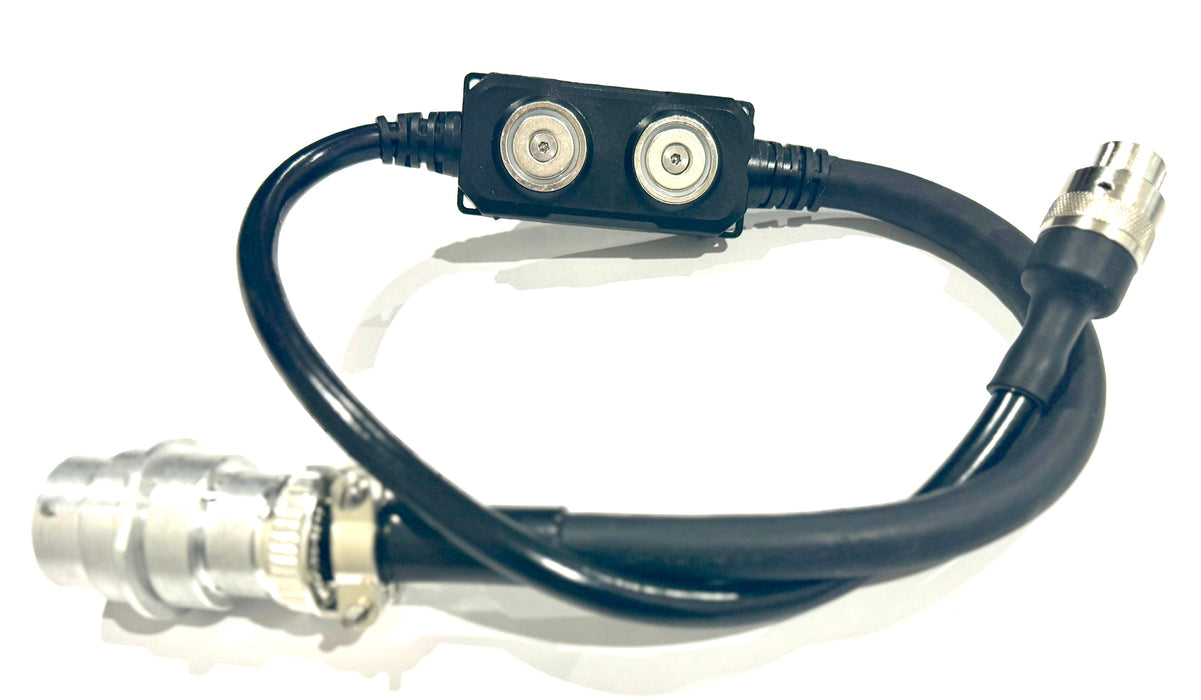

Bobcat 7 Pin CAN to CAT ABC Series 8 Pin Adapter – 4 Output Controller: This adapter is designed for operators who need to run older 8-pin, 12-volt solenoid-controlled attachments from a Bobcat machine equipped with a 7-pin CAN connection.
Built for Specific Older Attachment Systems: This controller is intended for pre-2015 CAT ABC Series attachments and can also be used with ASV and Terex attachments by moving one pin from H to G. Because these attachment types are less common, verifying your connector style before ordering is important.
Four Solenoid Outputs with Flexible Control: The adapter provides four outputs for operating attachment functions directly from your machine controls. One or both A outputs can be configured for latching, while the remaining circuits are set up for momentary control where required.

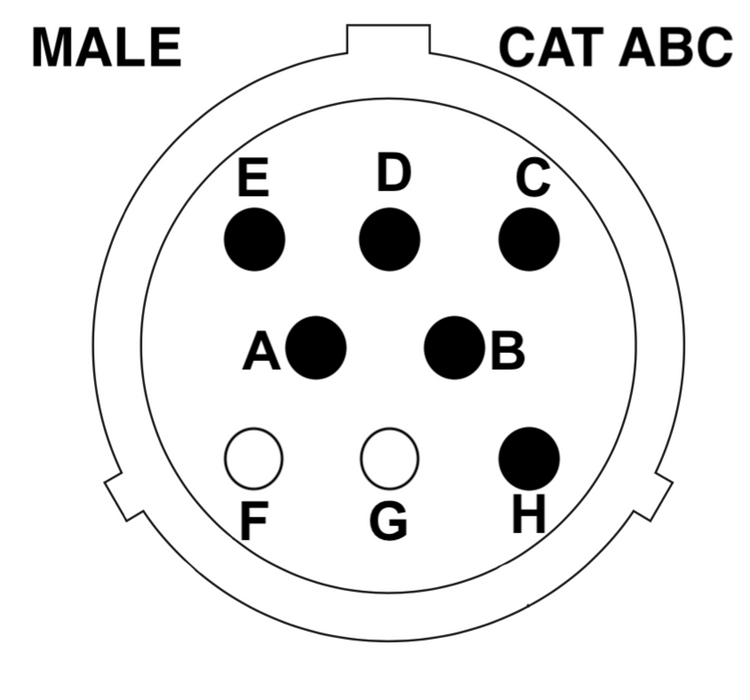

Output Configuration:
- A1/A2 (Pins C/D): One or both outputs can be configured for latching while the others remain momentary
- C1/C2 (Pins B/H): Momentary operation only
- Ground (Pins A & E): Constant output

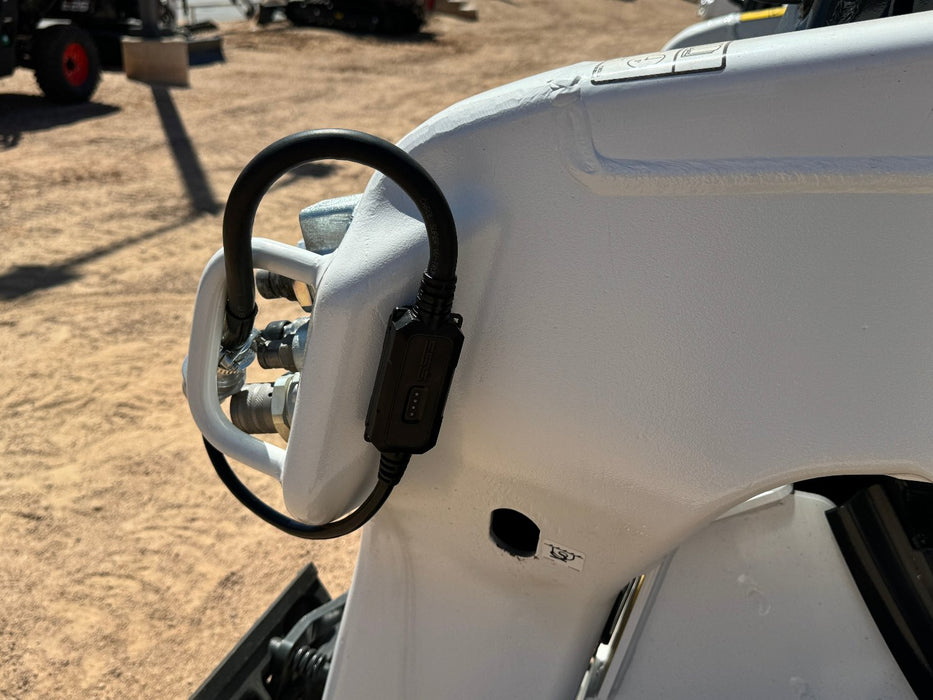

Designed for Easy Machine Integration: This controller plugs directly into a Bobcat 7-pin CAN machine connection and is engineered to work with Bobcat skid steer loaders, Toolcat machines, and Versahandler models that support this control format.

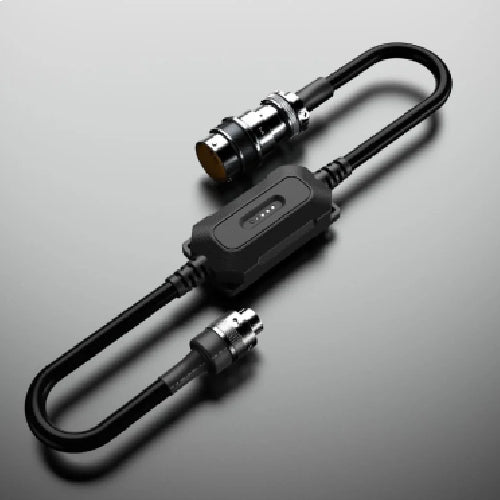

Built for Tough Working Conditions: The CAN60-08 uses a molded housing with improved cable retention, embedded magnets for convenient mounting, and built-in protection features to support reliable performance in demanding environments.
Real-Time Status Visibility: An onboard LED system provides clear feedback so you can quickly confirm power, communication, and output activity during operation and troubleshooting.
Important Use Note: This controller is designed for solenoid-operated attachments only. Because of fuse and circuit limitations, any combination of two outputs can operate at the same time. It ships configured for momentary output operation by default.

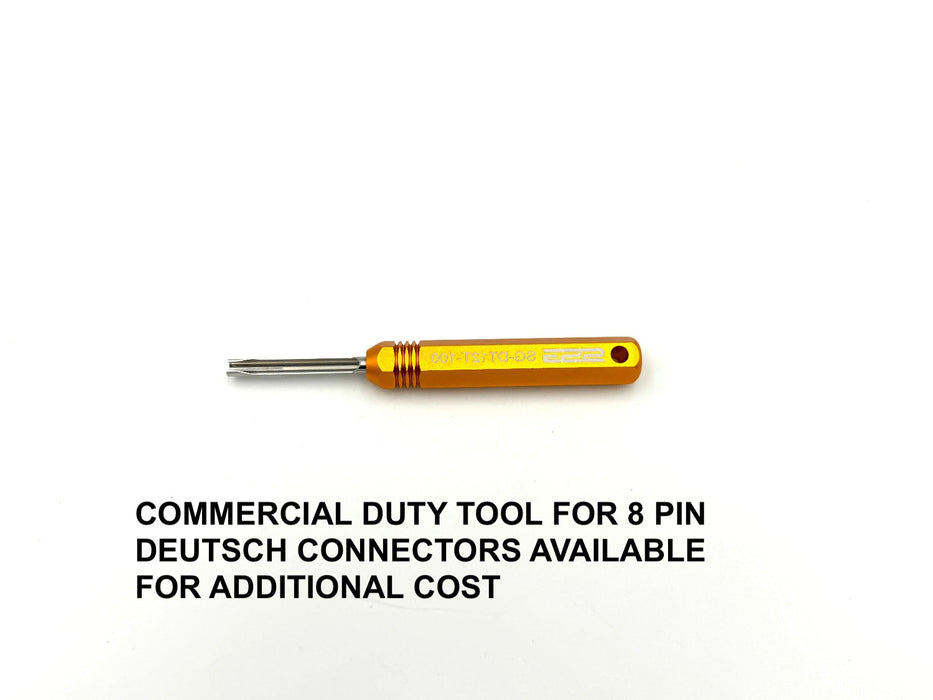

Additional Tool Recommendation: If you expect to move pins frequently on your attachment wiring, a dedicated commercial-duty pin tool is recommended over the included single-use tools.
Technical Data
CAN60-08 Features:
- Software designed to operate across Bobcat pilot control, hand and foot control, Toolcat, Versahandler, and imported Bobcat machines
- Molded plastic housing with improved cable retention
- Repair-friendly design where connectors release before major damage occurs in an accident
- Embedded dual magnets for mounting to the machine frame in multiple positions
- Improved high- and low-temperature tolerance
- 9 amp output per channel, regulated to 15 amps maximum for fuse protection
- Easy-to-read LED output indication
- Added output protection for dirty or unstable solenoids
- Designed specifically for solenoid controls only
Additional Notes: The CAN60 is a 4-output controller using the older CAT 8-pin layout for CAT A, B, and C Series attachments. It is fully plug-and-play on compatible Bobcat machines and mounts on the boom for reuse across multiple attachments. Bobcat Versahandler 923 models from 2020 and newer are not compatible because they do not use an ACD controller.
