Recommended flow
12-36 GPM
Torque @ 3,000 PSI
4,909 ft-lbs
Model
6DDS
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
Made in USA
5-yr warranty
Overview
This high flow auger drive, the Digga 6DDS, sits between the 5DDS and 7DDS in the range, and the three share a shaft, a bit family and a mount pattern — what separates them is torque and the minimum flow each needs to reach it. The 6DDS asks for slightly more flow than the 5DDS and returns more torque for it, which is the trade to weigh if your machine sits near the boundary. All three take Digga A6, RC6 and DR6 bits on the 2.5" hex shaft, and all three include the pressure relief valve.
Key Features of the 6DDS High Flow Auger Drive
- 4,909 ft-lbs of torque — the figure Digga publishes for the 6DDS
- 12-36 GPM recommended flow — match this against your carrier’s auxiliary circuit
- 2.5" Hex output shaft — sets which Digga auger bits fit
- Compact high torque Digga manufactured gearbox
- Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- 5 year gear box and 3 year motor warranty / lifetime shaft pull-out warranty
- Over 40 years design and manufacturing experience
- Easily converted to a Screw Anchor Drive with the addition of our patented ‘Anti Kickback Valve’
- TRU-CUT – a 12†auger cuts a 12†hole, no more oversized holes!
Why This Drive Suits Its Machine Class
- Pick by the flow your machine actually delivers, not by the torque headline — a drive that never reaches its rated flow never reaches its rated torque, so the 6DDS only outperforms the 5DDS on a machine that can feed it.
- Same mounts and bits across 5DDS, 6DDS and 7DDS — stepping up or down within the range does not strand your frames or your auger bits.
- Integrated PRV means no external valve block — four to six fewer hydraulic connections, each of which is a potential leak.
- The gearbox follows the bit down the hole — more usable depth from the same overall drive length, without buying extensions.
6DDS High Flow Auger Drive Specifications
| Specification | Value |
|---|---|
| Model | 6DDS |
| Torque @ 3,000 PSI | 4,909 ft-lbs |
| Max torque @ 3,500 PSI | 5,717 ft-lbs |
| Recommended flow | 12-36 GPM |
| Motor type | Orbital Geroler |
| Max horsepower | 55 HP |
| Pressure relief valve | Included |
| Standard output shaft | 2.5" Hex |
| Recommended auger bits | A6 / RC6 |
| Max drilling diameter — earth | 40" |
| Weight | 290 lbs |
| Overall length | 33.7" |
| Diameter | 11.4" |
| HALO auger alignment | Optional |
| Max drilling diameter clay | 30" |
| Carrier weight range | 4.5-8T (9,900-17,600 lbs) |
Every figure above is taken from Digga’s published data sheet for the 6DDS. Add your machine make and model at checkout and we confirm the fit before the order ships.
Which Machines Fit the 6DDS?

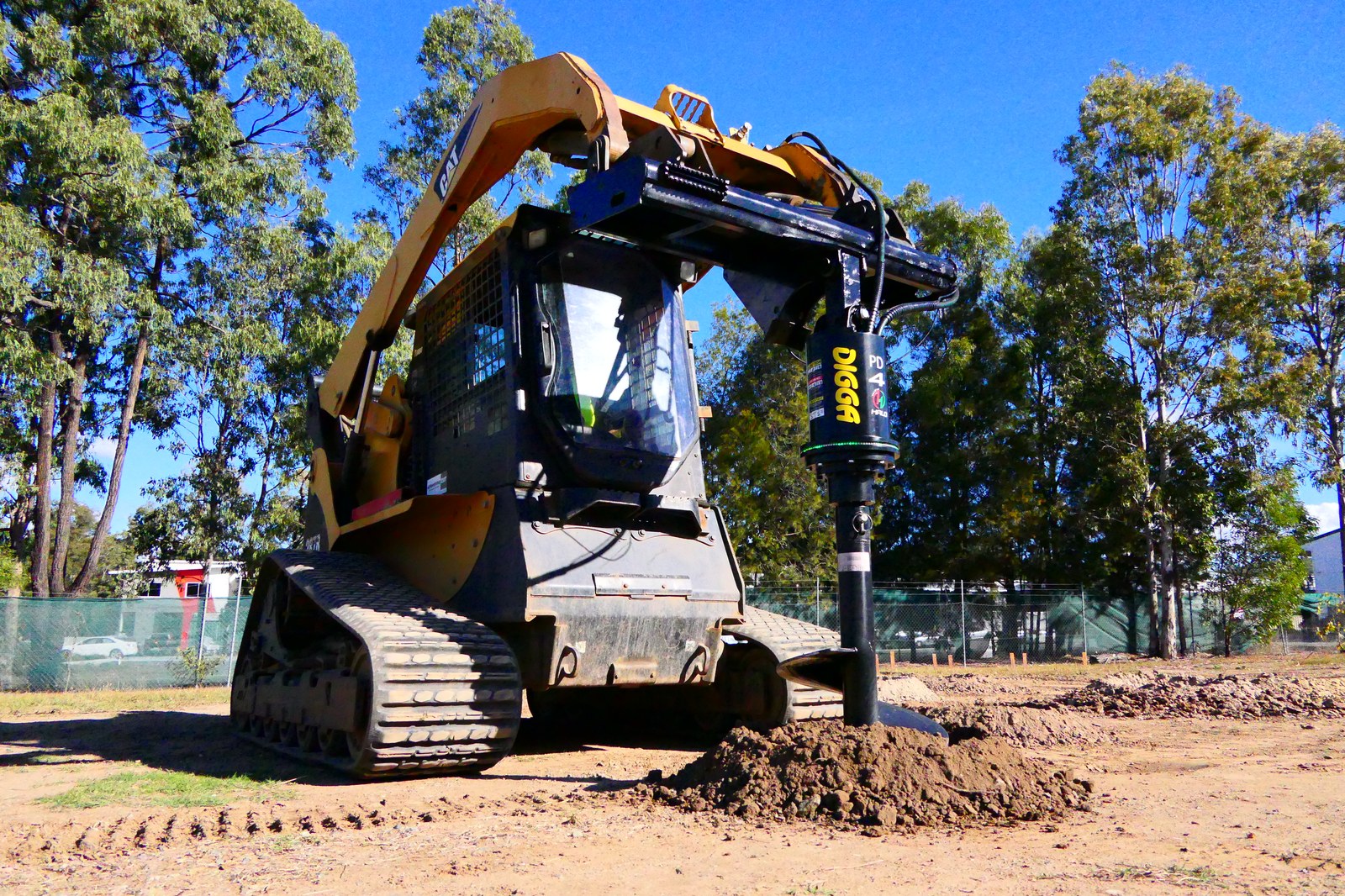

Built for high-flow skid steer loaders and compact track loaders, with fitment set by auxiliary flow and mount interface:
| Fitment factor | Requirement |
|---|---|
| Auxiliary hydraulic flow | See the recommended flow in the table above |
| Mount | Skid steer frame or mount, sold separately |
| Hoses | Sold separately |
| Auger bits | Sold separately |
Bobcat
Caterpillar
John Deere
Case
New Holland
Takeuchi
Kubota
Gehl
Order online — enter your machine make and model with the order and we confirm the mount fits before it ships, coming back to you only if something needs changing. Questions first are welcome at support@eskidsteer.com or on the chat button on your screen.
6DDS High Flow Auger Drive Questions, Answered
Should I choose the 5DDS, 6DDS or 7DDS?
Start with the flow your machine actually delivers, then take the drive whose recommended range your machine sits inside — not the biggest one. All three use the same 2.5" hex shaft and the same bit family, so the decision is purely about matching hydraulics.
Does the 6DDS come with hoses?
No. On the high-flow DDS range the auger-only listings do not include hoses. Order hoses and flush-face quick disconnects alongside the drive.
Does the 6DDS require a case drain?
No. The 6DDS is single speed and runs on a standard two-line auxiliary circuit. Digga’s two-speed DDT drives are the models that need one.
What warranty applies to the 6DDS?
Five years on the gearbox, three years on the motor, and a lifetime shaft pull-out warranty for drilling use, subject to maintenance per the operator’s manual. Digga’s terms treat anchoring separately — drives used for anchoring above 12,000 ft-lbs without an Energy Control Valve carry no warranty.
Can the 6DDS install screw anchors?
Digga distinguishes drilling from anchoring. Anchoring above 12,000 ft-lbs without an Energy Control Valve voids cover entirely, so an ECV-equipped anchor drive is the right tool for that work rather than a drilling drive.
What hydraulic flow does it need?
This one is rated for 12-36 GPM. Check that figure against your machine’s auxiliary hydraulic output before choosing — a machine that cannot supply the rated flow will never reach the rated performance, and one that exceeds the limit will run the attachment hot.
Will this fit my machine?
Check three things: it is built for 4.5-8T (9,900-17,600 lbs); the interface is Skid steer frame or mount, sold separately; and it needs 12-36 GPM. Add your machine make and model at checkout and we confirm the fit before the order ships.
How is shipping calculated?
Shipping is calculated at checkout — add the item to your cart, enter your delivery address, and the shipping charge is shown before you complete your order. Lift gate service is available for residential deliveries and can be selected at checkout.
How do I order?
Add the item to your cart and check out online — the order page asks for your machine make and model, so there is no need to call ahead. We check the mount against your machine after the order and come back to you if anything needs changing. If you would rather ask first, email support@eskidsteer.com or use the chat button on your screen.
What to Order Alongside the 6DDS
- Auger bits — The 6DDS takes a 2.5" Hex output shaft, and Digga pairs it with the A6 / RC6 range.
- Mount and linkage — the 6DDS ships without one, so the interface is chosen to match your carrier rather than a generic plate.
- Hydraulic hoses and flush-face quick disconnects — sized to the 6DDS’s 12-36 GPM flow rather than to whatever is on the shelf.
- XO25 and XT25 auger extensions — cheaper than buying a longer bit for the occasional deep hole on the 6DDS, and they stack.
Contractors reach this page searching for a skid steer auger attachment, for a auger drive, or specifically for a 6dds auger drive. The 6DDS also comes up when people are comparing an skid steer auger against a excavator auger, since Digga builds both on shared mounts and shared auger families. Whichever term brought you here, the 6DDS and every other digga auger drive in the range is made in Dyersville, Iowa.
