THIS IS THE 8 PIN OUTPUT BUNDLE

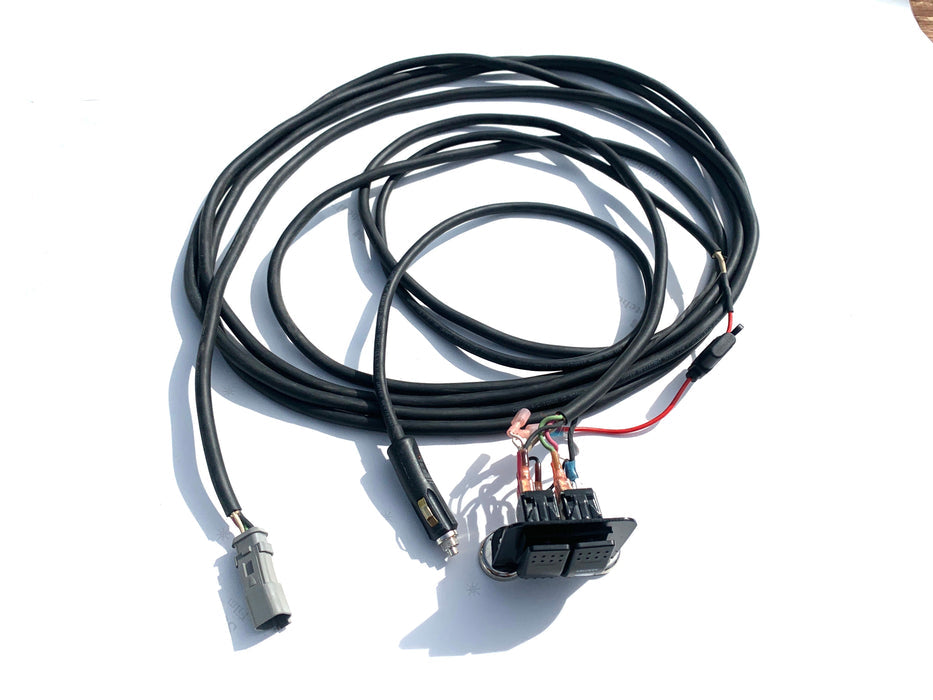

Ordering from this page includes the switch pack, harness, and an 8-pin output adapter only.
This kit adds 2 momentary controls plus 2 locking controls to your machine—often expanding you to as many as 8 usable outputs (depending on your loader’s existing wiring).
Built for operators who need more attachment functions than their machine came with, this injector system gives you extra switches without complicated modifications. It’s a great solution when you’re short on controls for a specific attachment—or you simply want more capability in the cab.
Common reasons customers use this kit:
1) Older CAT A-Series machines often came with very limited switching. This bundle can expand your usable functions significantly (some pin moves may be required depending on your machine and primary functions).
2) Many 8-pin machines (older CAT 8-pin A/B/C, ASV, Terex) need both more controls and a way to interface with attachments designed around 14-pin output. This kit adds additional switching and converts your machine to a 14-pin style output using the included adapter
How it works:
Plug the switch pack into your cigarette lighter for power, mount the switch bracket in the cab using the included magnets, then route the output cable along the boom by following your hydraulic hose path for clean protection. At the end of the boom, connect the included adapter and you’re ready to run those added functions.
What’s included:
Why we made it:
Because customers needed a practical way to add more attachment switching without paying a fortune for factory upgrades. This injector was designed specifically for 8-pin and 14-pin machines where the loader doesn’t have enough built-in controls to use the attachment the way it should be used.
Install/use tips:
You can mount it temporarily with magnets or make it permanent with screws. Route the cable with zip ties along your hose bundle for protection. If you have a 14-pin machine (ex: Kubota), you may be able to open the machine connector and insert pins directly into open positions (commonly E/F or G/H), but always confirm which slots are empty for your loader before inserting.
This bundle includes the switch pack, harness, and an 8-pin output adapter. It does not include any additional adapters beyond the 8-pin configuration.
The kit adds two momentary controls and two locking controls. In most applications, this results in up to eight total outputs when combined with existing machine controls.
This kit is designed for machines with 8-pin or limited-control setups, including older Caterpillar Series A, B, and C machines, ASV, and Terex loaders.
Yes. When installed correctly, the kit converts an 8-pin machine output into a 14-pin style output to support attachments requiring additional controls.
Yes. On certain machines, such as Caterpillar ABC series, one input socket must be moved to a different position for proper operation.
The switch pack is powered through a standard cigarette lighter-style 12-volt power source inside the cab.
The switch pack is mounted using magnets for quick installation, with the option to permanently mount it using self-tapping screws.
The output wires are approximately 20 feet long and are designed to be routed through the cab and along the hydraulic lines out to the boom and attachment couplers.
Yes. It can also be used on some 14-pin machines that have limited factory-installed control switches, such as certain Kubota, Takeuchi, and older loaders.
The kit can be used either temporarily or permanently, depending on how it is mounted and wired inside the cab.
