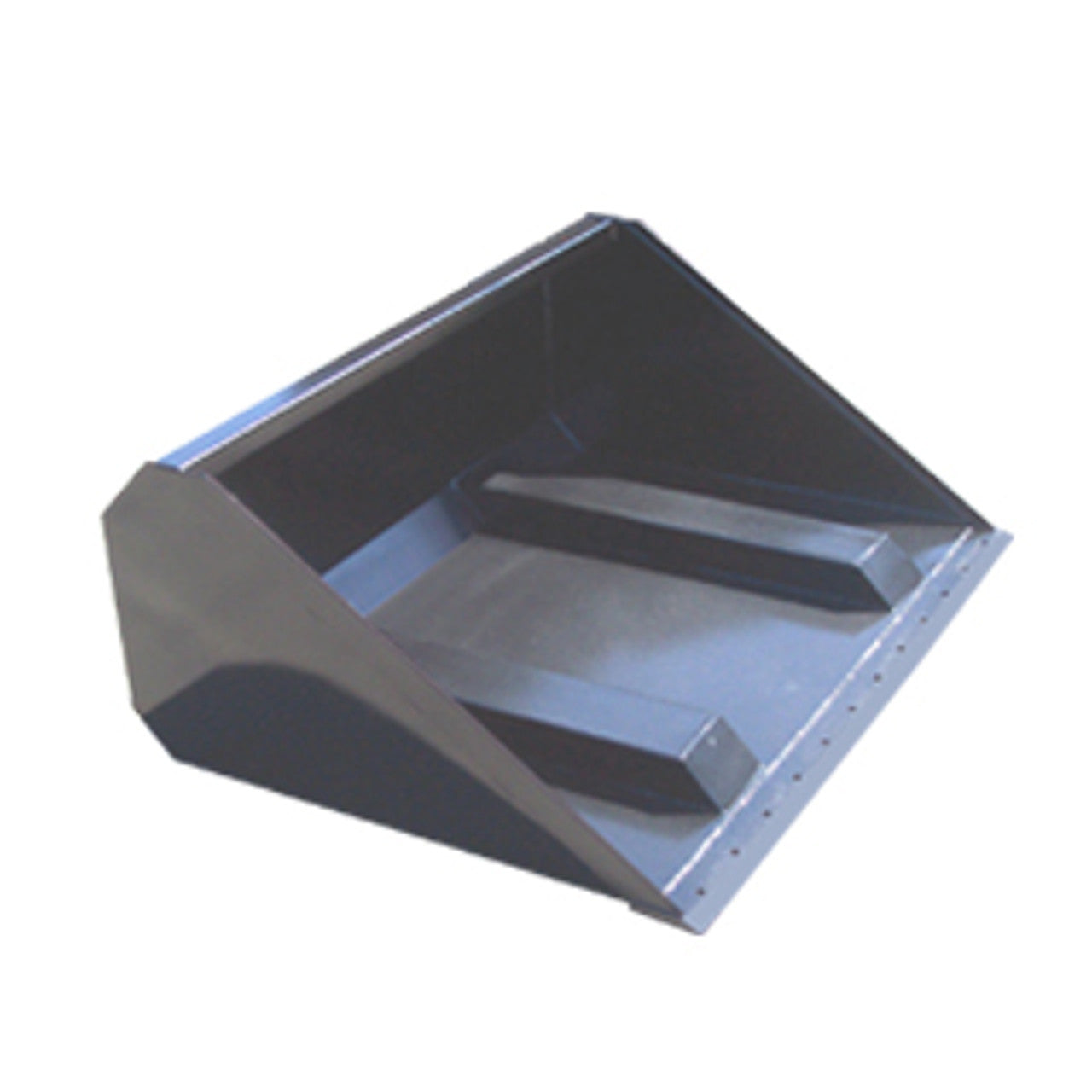

Telehandler Fork Slot Bucket - Haugen Attachments

📘 Overview

The Haugen MFSB is a telehandler bucket attachment that slips over existing fork tines to convert any telehandler or forklift into a general-purpose bucket machine — no quick attach system required. Available in three styles: Standard (28" bucket height, fits 48" tines), High Capacity (larger volume), and Extended (60" fork tines required, deepest volume). Widths from 60" to 96". Standard models: MFSB 60 (1.00 cu yd, 630 lbs), MFSB 72 (1.20 cu yd, 675 lbs), MFSB 96 (1.60 cu yd, ~960 lbs). 3/4" x 6" high-carbon cutting edge with optional bolt-on edge. Heavy-duty 1" diameter retaining pins. Shurlock chain holds the bucket tight to the fork heel. Made in USA with a 1-year warranty.

⚙️ Key Features

• Three styles: Standard (48" fork tines), High Capacity, Extended (60" fork tines)
• Widths: 60", 72", 96" — Standard; Extended available in 72" and 96"
• No quick attach required — slips over fork tines; Shurlock chain secures to fork heel
• 1" diameter heavy-duty retaining pins — chained to bucket; pin through tines for security
• 3/4" x 6" high-carbon cutting edge with optional bolt-on edge upgrade
• 1/2" x 3" wear strips on extended models
• Fits fork tines up to 48" (Standard/High Capacity) or up to 60" (Extended)
• Made in USA | 1-year warranty | Powder coated

🔑 Benefits

• No quick attach required means any forklift or telehandler with forks can use a bucket without additional adapters — ideal for rental fleets, job sites with multiple machine types, or operators who need bucket capability without changing the fork mount system.
• Three style options let the same fork setup serve different job types — Standard for general cleanup, High Capacity for larger-volume light materials (snow, mulch, debris), Extended for operators with 60" fork tines who need maximum reach depth on the fill stroke.
• Optional bolt-on edge doubles cutting edge life on abrasive materials — the drilled standard cutting edge accepts a bolt-on edge overlay that can be replaced without welding when worn, reducing downtime vs. field edge replacement.
• 1" pins and Shurlock chain are a belt-and-suspenders retention system — the 1" pins secure through the tines for positive retention, and the Shurlock chain clamps to the fork heel to prevent any forward migration under impact loads.

📊 Specifications

🔗 Attachment Compatibility

The MFSB fork slot buckets slip over existing fork tines — no quick attach system needed. Standard and High Capacity models accept fork tines up to 48" long. Extended models (MFSB 60D) accept tines up to 60" long and have the standard 3-1/2" x 7-1/2" internal pocket dimensions. The Shurlock chain must be installed around the fork heel to secure the bucket against forward sliding. Verify your fork tine length before ordering.

🚜 Machine Compatibility

Designed for telehandlers, rough terrain forklifts, and standard forklifts with fork carriage. Fits fork tines up to 48" long via standard 3-1/2" x 7-1/2" fork pockets. Compatible with:

Compatibility is determined by fork tine dimensions — verify your tine length does not exceed the bucket's fork pocket depth before purchasing.
