SMART Laser Controller for Skid Steer Grader Systems: This advanced controller is designed to integrate seamlessly into your grader setup, allowing you to activate laser auto-control functions using your machine’s existing hydraulic controls.
Flexible Input and Output Configuration: The unit features dual 2-pin Deutsch receptacles for momentary input signals, along with a dedicated power input and a single 2-pin Deutsch output for controlling laser auto/manual functions.

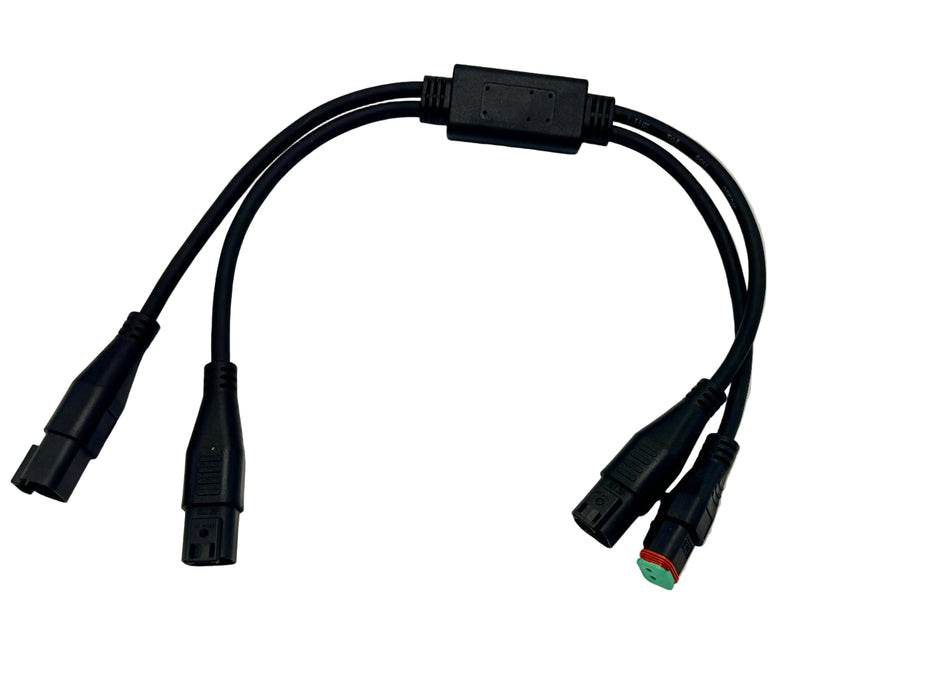

Simple Inline Installation: By using two Y-adapters, the controller can be installed inline with your existing side-shift or blade angle solenoids. Once connected and powered, the system works directly with your machine’s current controls—no complicated rewiring required.
Smart Activation Using Existing Controls: The controller is activated by pressing two selected controls simultaneously—typically side shift or blade angle—for a few seconds. This action triggers the system to latch the output, enabling laser automatic control.
Reliable Latching Function: After activation, the output remains engaged until you repeat the same control input. Holding the controls again for several seconds will disengage the system, giving you full control without needing additional switches.
Designed for Efficiency and Ease of Use: This SMART controller eliminates the need for extra switches or complicated wiring setups, allowing operators to control advanced grading functions directly from familiar machine controls.
This controller allows you to add laser automation control to your grader by using your machine’s existing hydraulic control inputs.
It installs inline using Y-adapters connected to your existing solenoid circuits such as blade angle or side shift controls.
No, the system is designed to be plug-and-play using Deutsch connectors and Y-adapters without altering your machine wiring.
You activate it by pressing two selected controls at the same time for about five seconds, which triggers the controller to latch the output.
To deactivate, press the same two controls again simultaneously for a few seconds and the system will unlatch.
No, once activated the controller latches the output, allowing continuous operation without holding the controls.
The controller uses 2-pin Deutsch connectors for inputs and outputs, along with a separate power connection.
Most users use blade angle or side shift controls, but any compatible momentary inputs can be used.
Yes, the controller requires a power source connected through a Deutsch receptacle to operate properly.
This product is ideal for operators who want to add laser grading automation without complex installation or rewiring.
