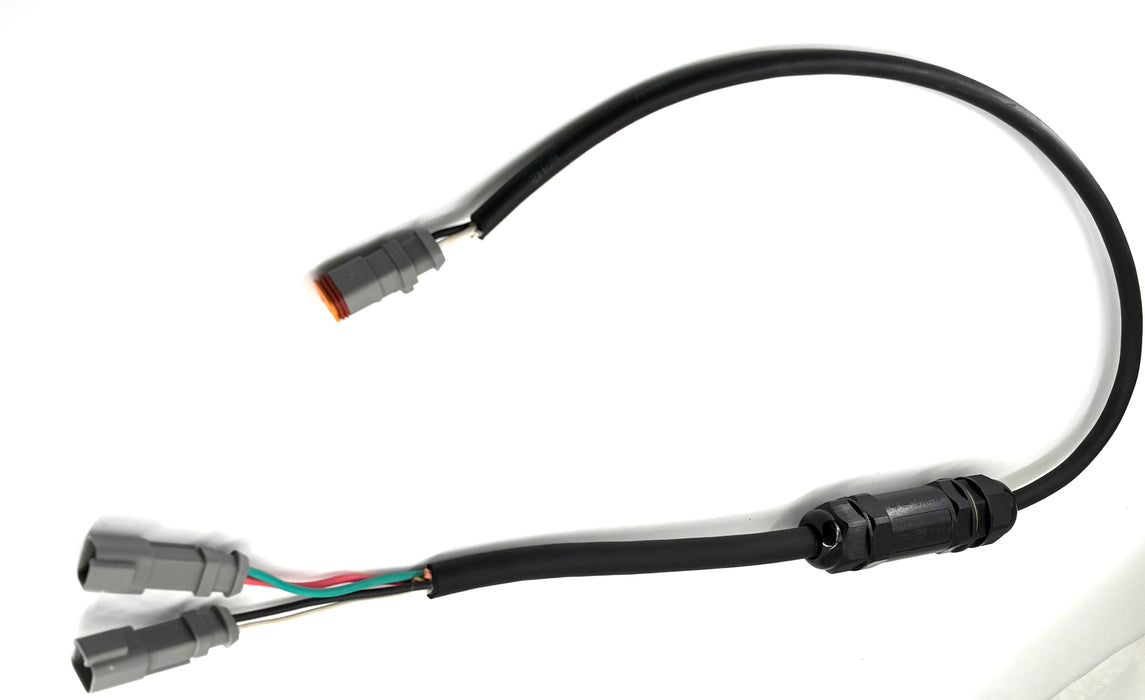

Genius Single Circuit Latching Controller – 9 Amp Total Capacity: This controller is designed for applications where you need to convert a momentary control into a latching output. It is a practical solution for attachments and systems that require on/off toggle-style operation from an existing momentary signal.
Built for Simple Latching Control: The unit requires two input signals to operate correctly—one constant power source and one momentary power input. Once connected, pressing the momentary trigger allows the output to latch on and off, making it ideal for selected electric attachment functions.
Well Suited for Specialized Applications: This controller is especially useful for low-demand electric control systems such as mower functions or grader laser auto controls where a latching circuit is needed for easier operation.
Important Power Rating: This product is intended only for low-torque electric motors or solenoids with a momentary peak draw of up to 13 amps and a continuous draw of up to 9 amps. It must not be used with a winch or any high-draw device.
What’s Included:
How It Is Commonly Used: These controllers are currently used in applications such as skid steer grader laser controls and mower controls on excavators, where a reliable latching function improves usability and control.
Basic Operating Concept: On a skid steer, one circuit is typically assigned to the common power pin and the other is used as the trigger input. The controller output then connects directly to the solenoid, allowing the selected machine buttons to toggle the controlled function on and off.
Designed for Real Equipment Needs: This product was developed in response to customer demand for a compact, dependable latching controller that works easily with existing equipment control systems.
This controller is used to convert a momentary signal into a latching on/off function, making it useful for controlling attachments like mowers or laser grading systems.
It allows a momentary button press to toggle a function on and off, instead of requiring the button to be held down continuously.
This device requires two inputs: one constant power source and one momentary trigger input.
It provides a single output through a 2-pin Deutsch connector, which can often plug directly into a solenoid.
The controller supports up to 9 amps continuous current and a momentary peak of 13 amps.
No. This controller is not designed for high-load devices like winches and should only be used with low torque motors or solenoids.
It is commonly used for skid steer grader laser controls and mower controls on excavators.
The input uses two Deutsch 2P receptacles, and the output uses a single 2-pin Deutsch connector.
No. Installation involves connecting the power and trigger inputs, then plugging the output into the solenoid and integrating it with your machine controls.
Yes. This controller can be installed inline with your existing setup to add latching functionality to a compatible circuit.
