Working widths
72" and 90"
Recommended flow
17-30 GPM
Slew
25° left and right
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
72" and 90" working width
17-30 GPM
25° slew both ways
Tungsten carbide teeth
Overview

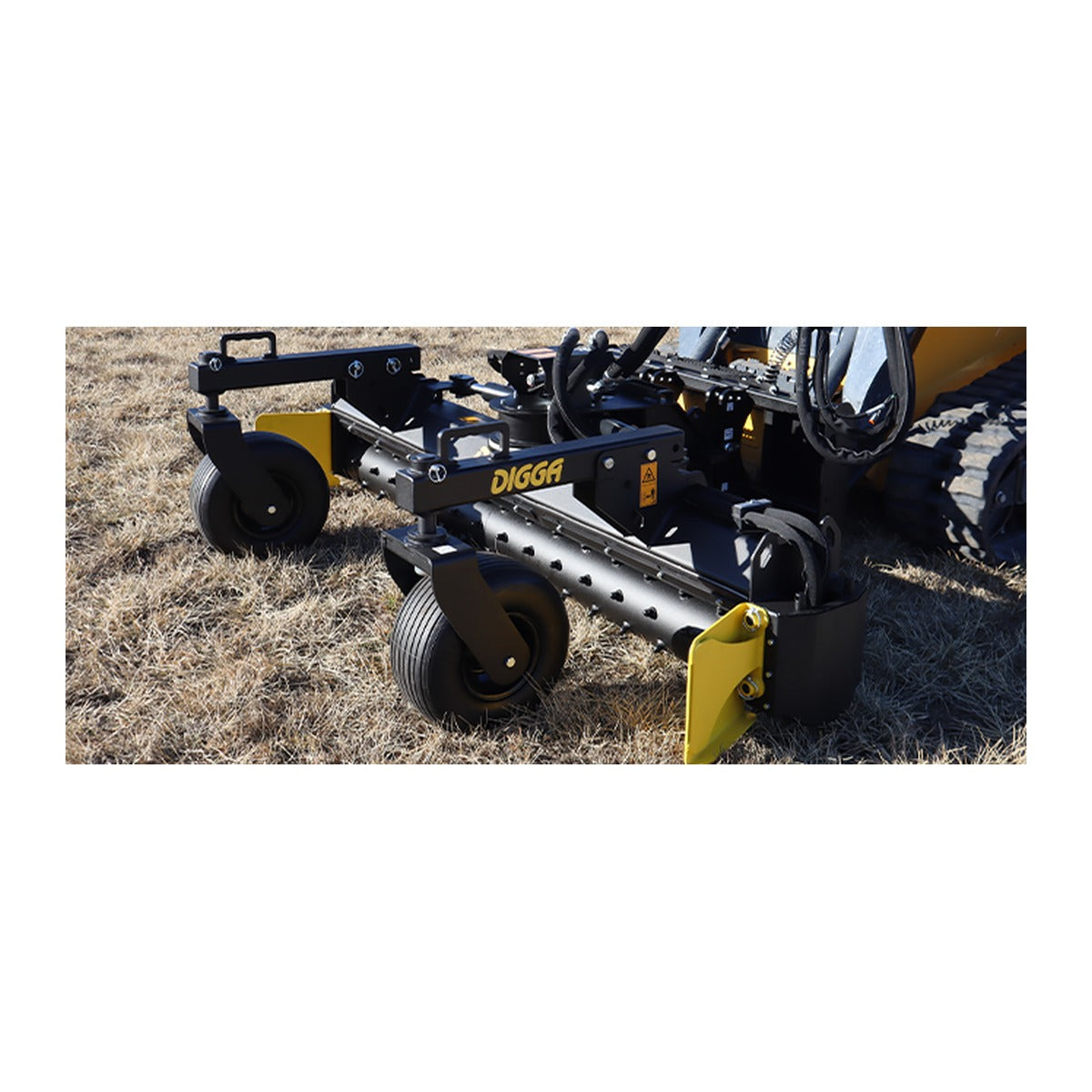

The Digga Power Rake is the full-size soil conditioner for skid steers and small wheel loaders: a hydraulically driven, bi-directional drum that cuts, levels and windrows in a single pass, turning rough or compacted ground into a seedbed. Choose the Working Width — 72" or 90" — and the Slew Type: Manual Slew, Hydraulic Slew or Hydraulic Slew Pro.

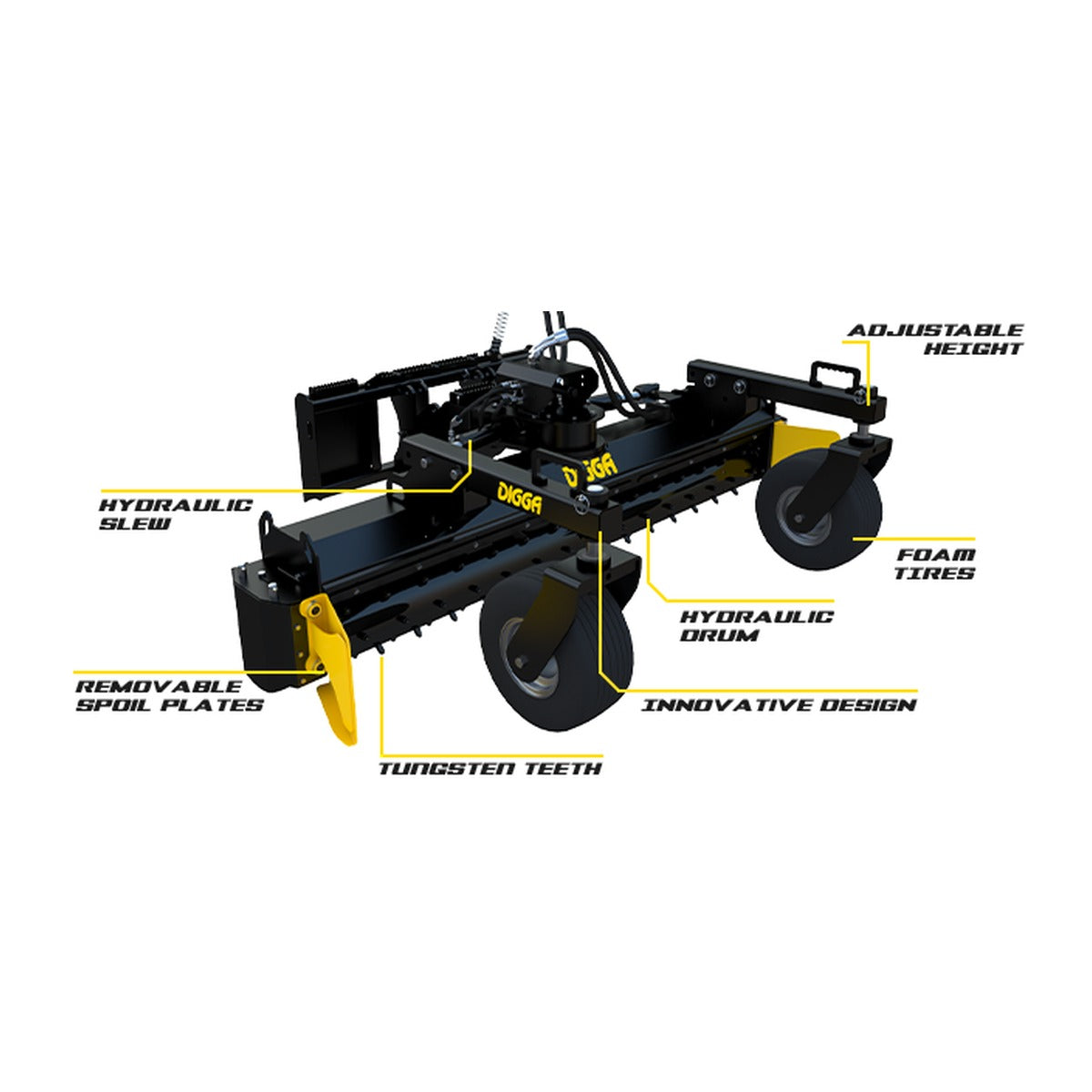

Key Features
- Two working widths — 72" drum (84" overall) or 90" drum (102" overall)
- Bi-directional drum works the soil in both travel directions
- 25° hydraulic angling left and right, so the windrow goes where you want it

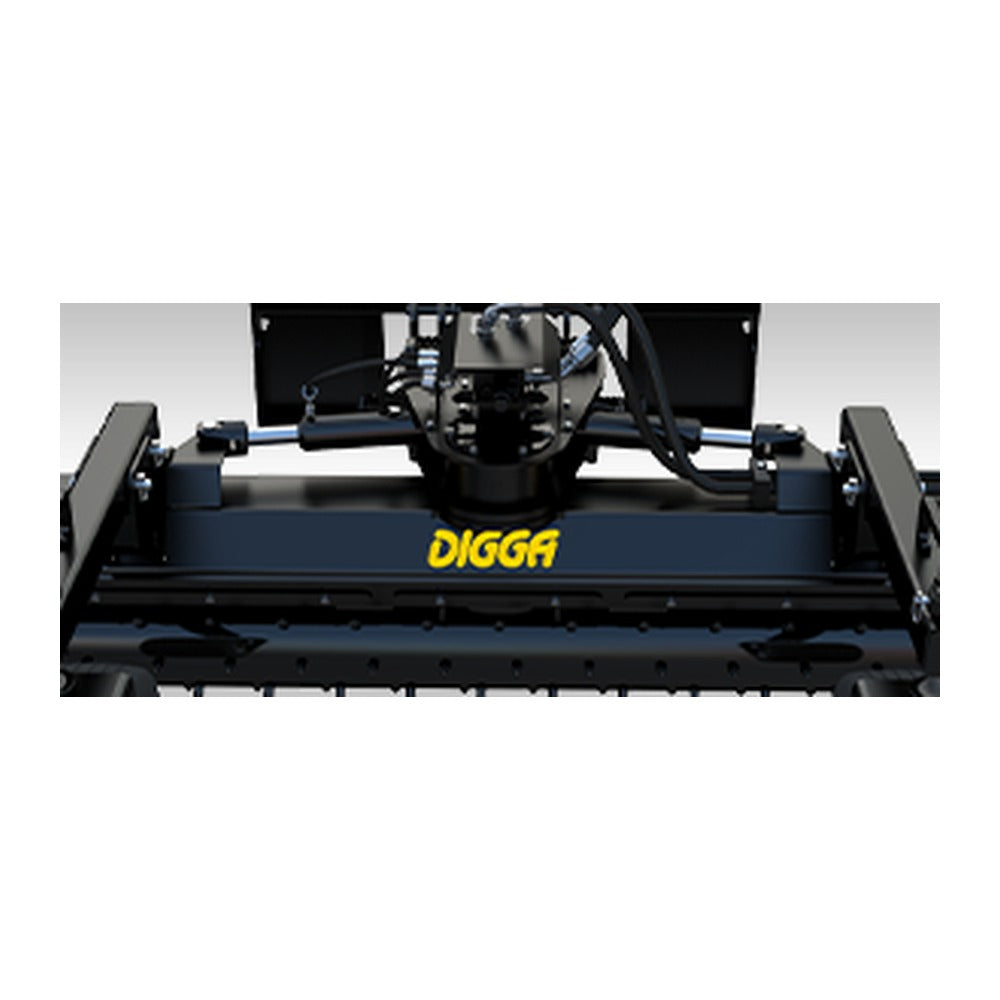

- Center pivot from above the drum keeps the drum centred to the machine through the whole slew range

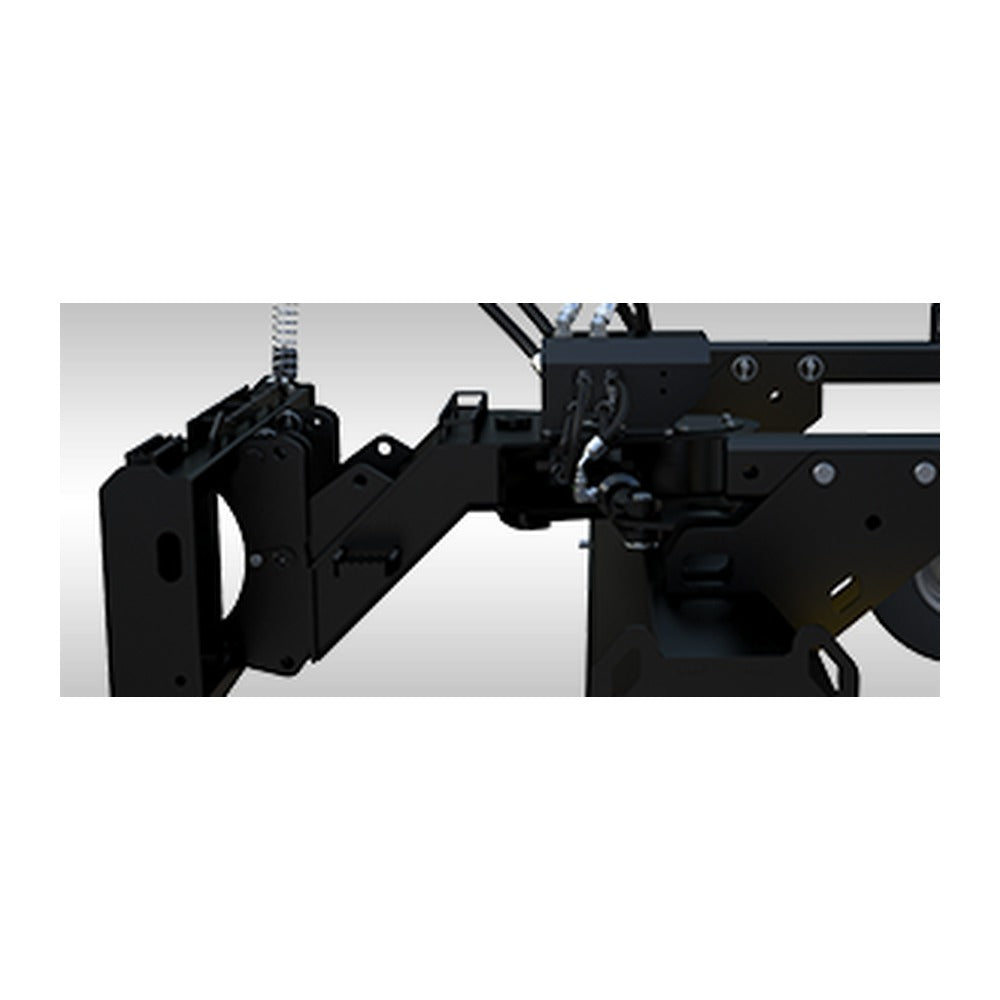

- Floating mount that locks in a fixed position or floats for a better finish on undulating ground

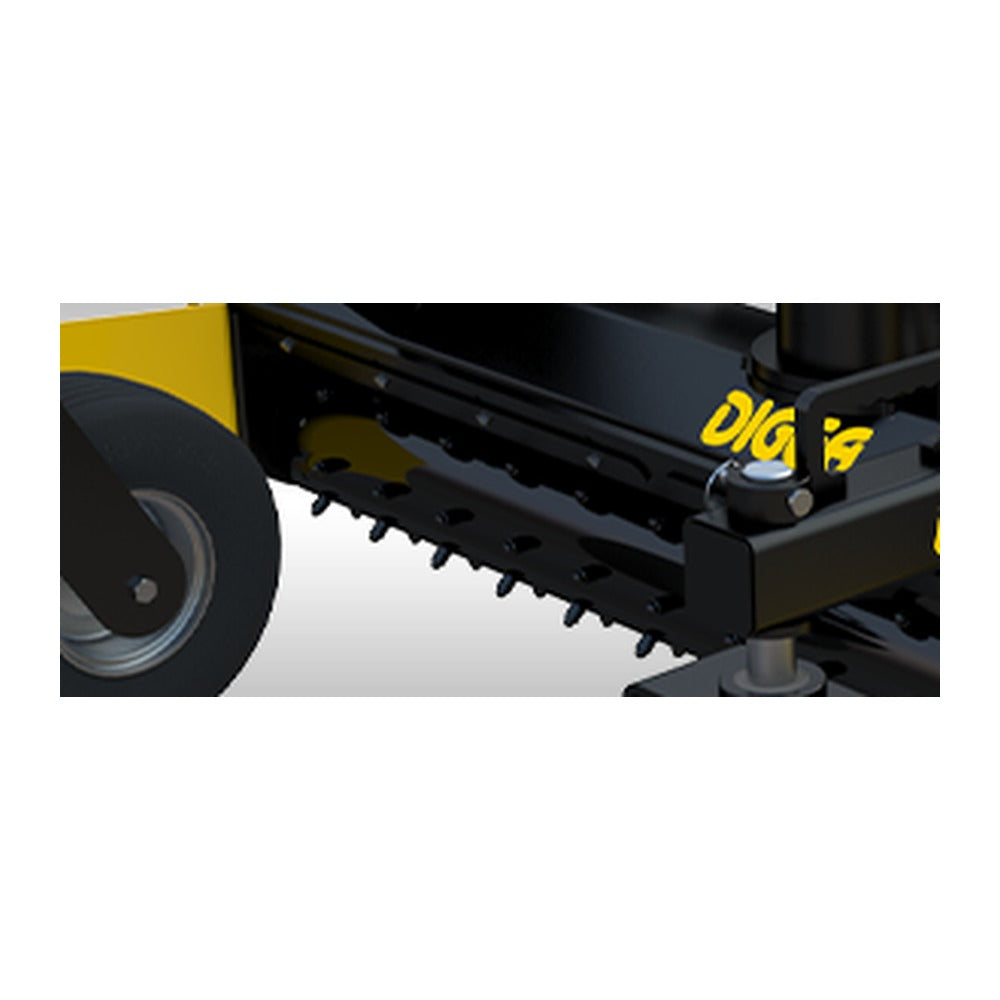

- Tungsten carbide teeth for drum life in abrasive ground
- Foam-filled tires and three-position adjustable wheel height — no flats, no compromise on cut depth

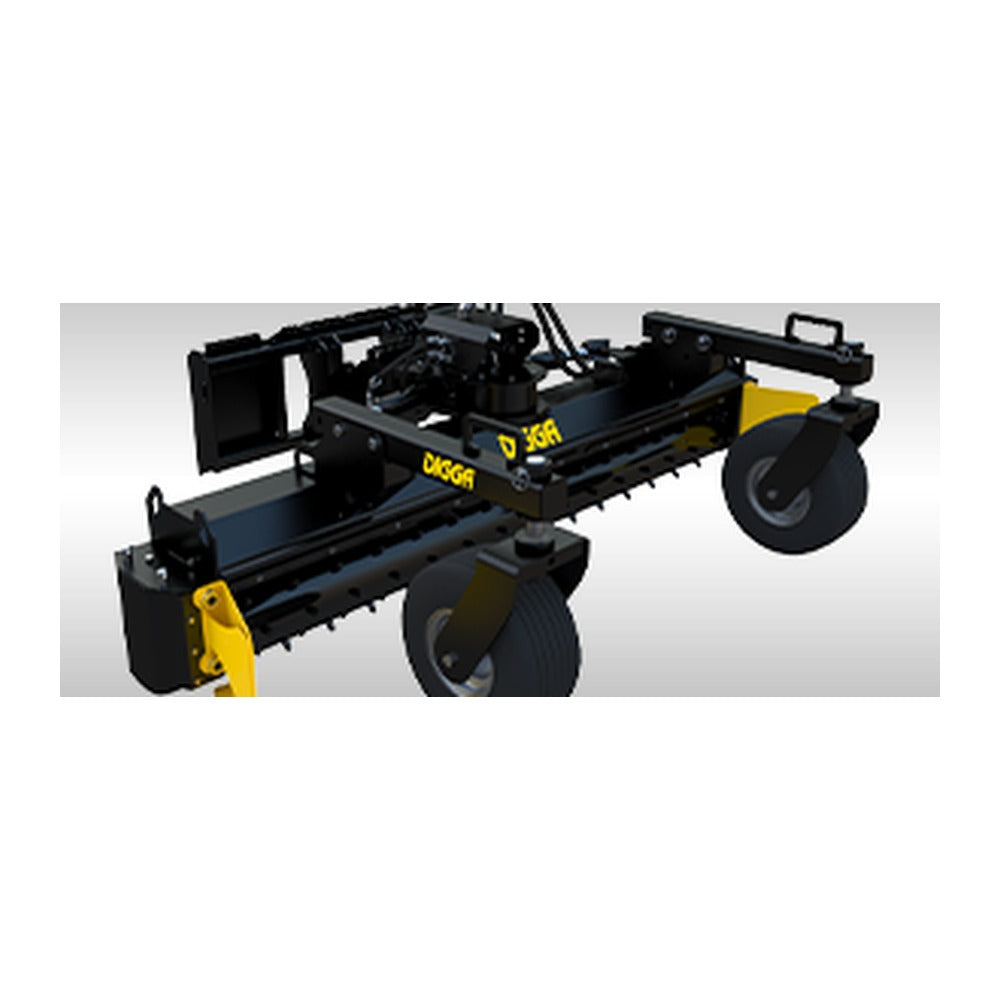

- Folding jockey legs and removable wheels for transport, storage and working tight to a structure
- Removable spoil plates — front for forward work, rear for reverse, on top for storage and windrowing
- Five grease points and direct drive — very little to maintain
- Runs on standard or high flow machines, 17-30 GPM depending on model
Which Slew Type?
| Slew type | How it works | Choose it when |
|---|---|---|
| Manual Slew | Angle is set by hand with the machine stopped. Recommended flow 17-30 GPM. | The windrow always goes the same way, or budget matters more than in-cab adjustment. This is the lowest-priced model. |
| Hydraulic Slew | Angled from the cab, but the drum must be stopped to slew — you cannot slew and rotate at the same time. Recommended flow 17-24 GPM. | You want in-cab angling and your machine is a standard-flow skid steer. |
| Hydraulic Slew Pro | Angled from the cab while the drum is turning. The drum must be rotating for the slew to work. Recommended flow 17-30 GPM, 3500 PSI relief included. | You change angle constantly while working, or you are on a high-flow machine and want the fastest cycle. |
All three carry the same drum, frame and teeth. The difference is only in how the 25° angle is changed. For mini loaders and compact utility loaders, see the 48 and 60 inch mini power rake instead.
Specifications
| Specification | 72" model | 90" model |
|---|---|---|
| Drum width | 72" | 90" |
| Overall width | 84" | 102" |
| Length — wheels up | 49" | 49" |
| Length — wheels down | 69.5" | 69.5" |
| Slew angle | 25° left and right | 25° left and right |
| Motor | Eaton 6000 series | Eaton 6000 series |
| Max pressure — do not exceed | 3500 PSI | 3500 PSI |
| Max flow — do not exceed | 40 GPM @ 2900 PSI (Manual and Pro), 24 GPM @ 3500 PSI (Hydraulic Slew) | 40 GPM @ 2900 PSI (Manual and Pro), 24 GPM @ 3500 PSI (Hydraulic Slew) |
| Max horsepower — do not exceed | 67 hp | 67 hp |
| Weight | Digga has not published a figure for this model yet | 1,270 lb manual slew / 1,350 lb hydraulic slew |
Electric Harness — Ordered Separately
The two hydraulic slew models are angled electrically from the cab and need a harness matched to your machine. Digga supplies four: an 8-pin for Cat and ASV, a 7-pin for Bobcat, a 14-pin, and a Plug 'N' Play cab controller for machines with no spare auxiliary switch. The part numbers differ between Slew Pro and Slew Standard, so order from the Power Rake electric harness page against the model you bought. Manual Slew needs no harness.
Questions, Answered
What is the difference between a power rake and a landscape rake?
A landscape rake is a passive tool dragged behind the machine. A power rake has a hydraulically driven drum that actively cuts into the ground, which is what lets it break up compaction and pulverise clods rather than just combing the surface.
Will it take out an old lawn?
Yes. Running the drum in the cutting direction lifts and shreds existing turf and roots, and the spoil plate windrows the debris to one side for pickup. It is one of the jobs the tool is built for.
72" or 90"?
Match it to the machine, not to the job. A 90" drum is 102" overall and wants a machine with the flow and the weight to push it; on a lighter skid steer the 72" keeps more margin and is easier to transport. If the machine is under 70 hp at the auxiliary circuit, take the 72".
Can I slew and rotate the drum at the same time?
Only on Hydraulic Slew Pro. On Hydraulic Slew you stop the drum to change angle; on Slew Pro the drum must be turning for the slew to work at all. Manual Slew is set by hand with the machine stopped.
Does it need high flow?
No. All three models run from 17 GPM. High flow is an advantage on the 90 inch drum in heavy ground, but standard-flow machines are within the recommended range.
What is included?
The frame, hoses and quick disconnects. The electric harness for the hydraulic slew models is a separate part number, and no harness is needed on Manual Slew.
How is shipping calculated?
Shipping is calculated at checkout from the weight of your order and your delivery address, and the charge is shown before you complete the order. These attachments ship by LTL freight on a pallet.
On delivery: inspect before you sign. Note any damage on the bill of lading at the time of delivery, photograph it, and email support@eskidsteer.com — a clean signature makes a carrier claim much harder to win.
