Description
📘 Overview

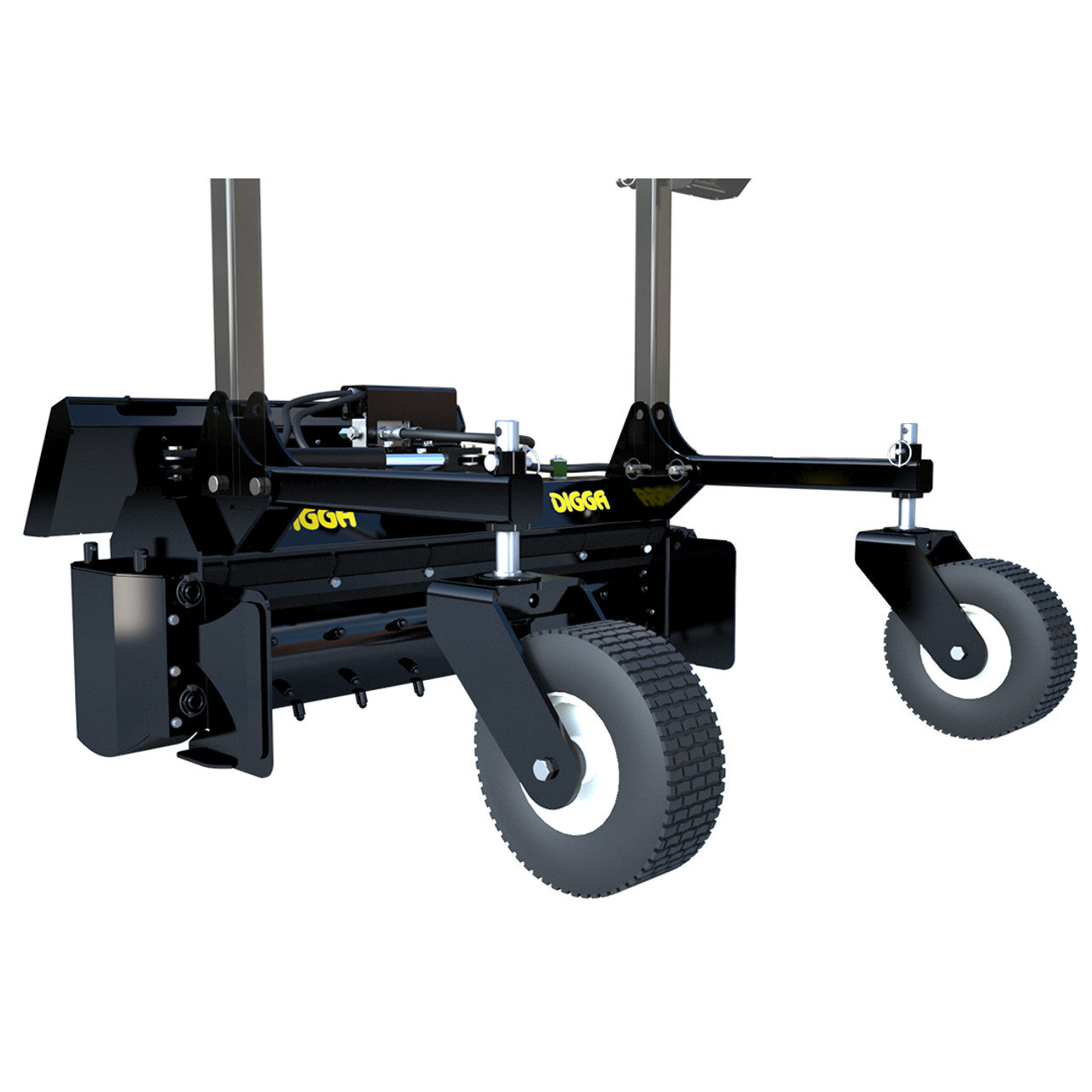

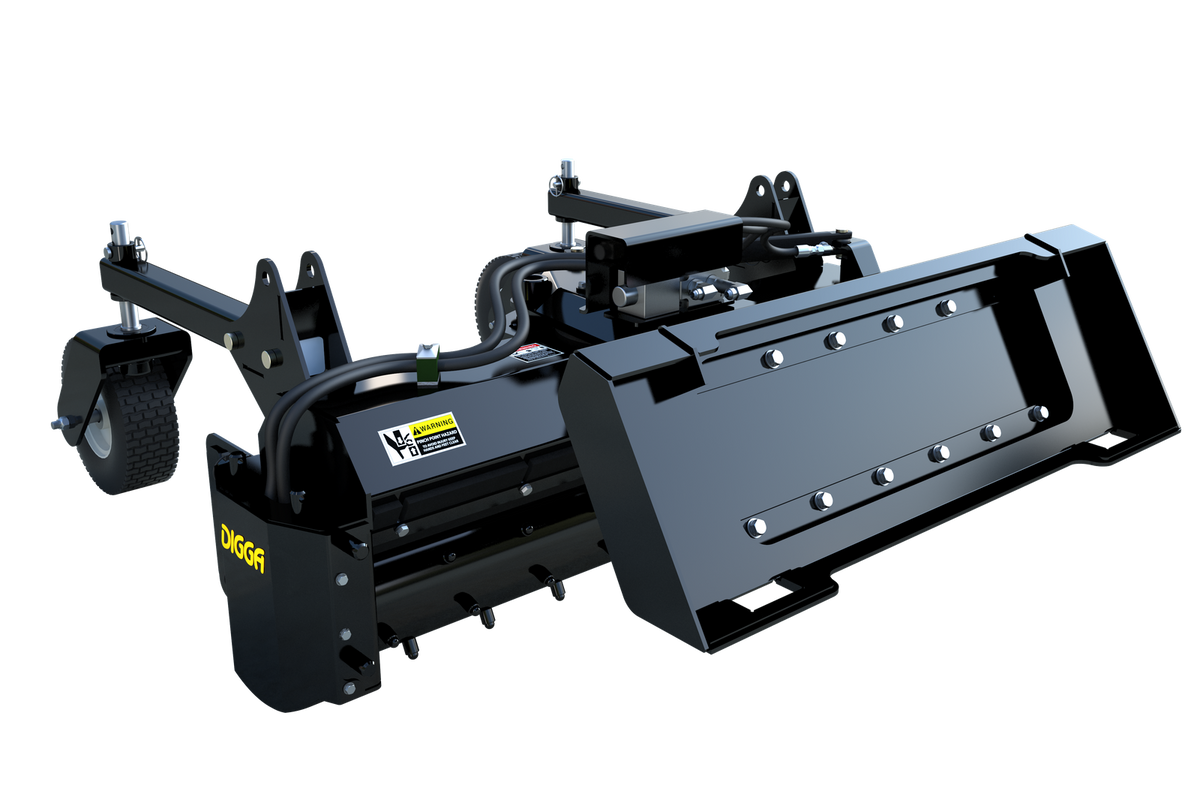

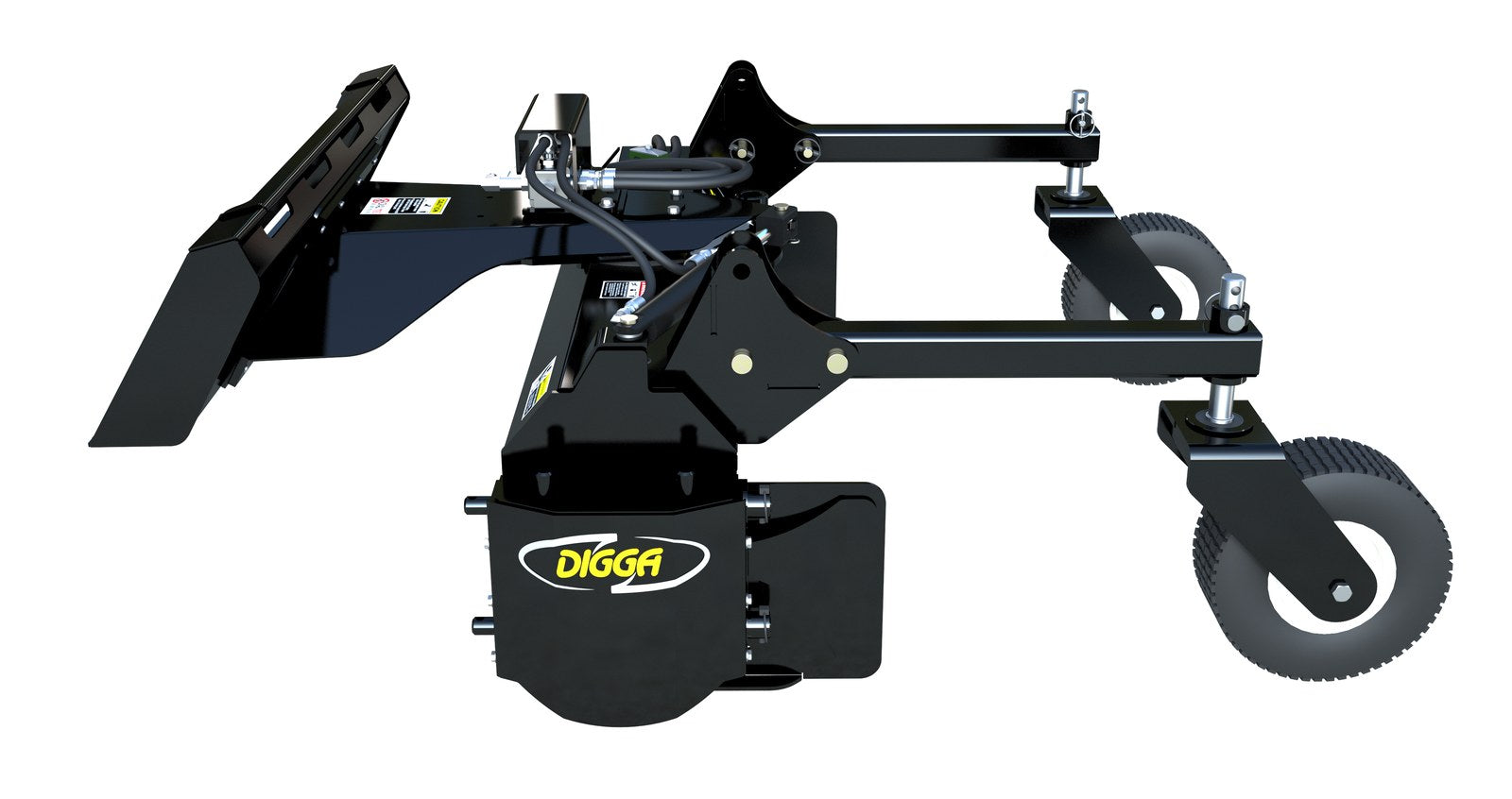

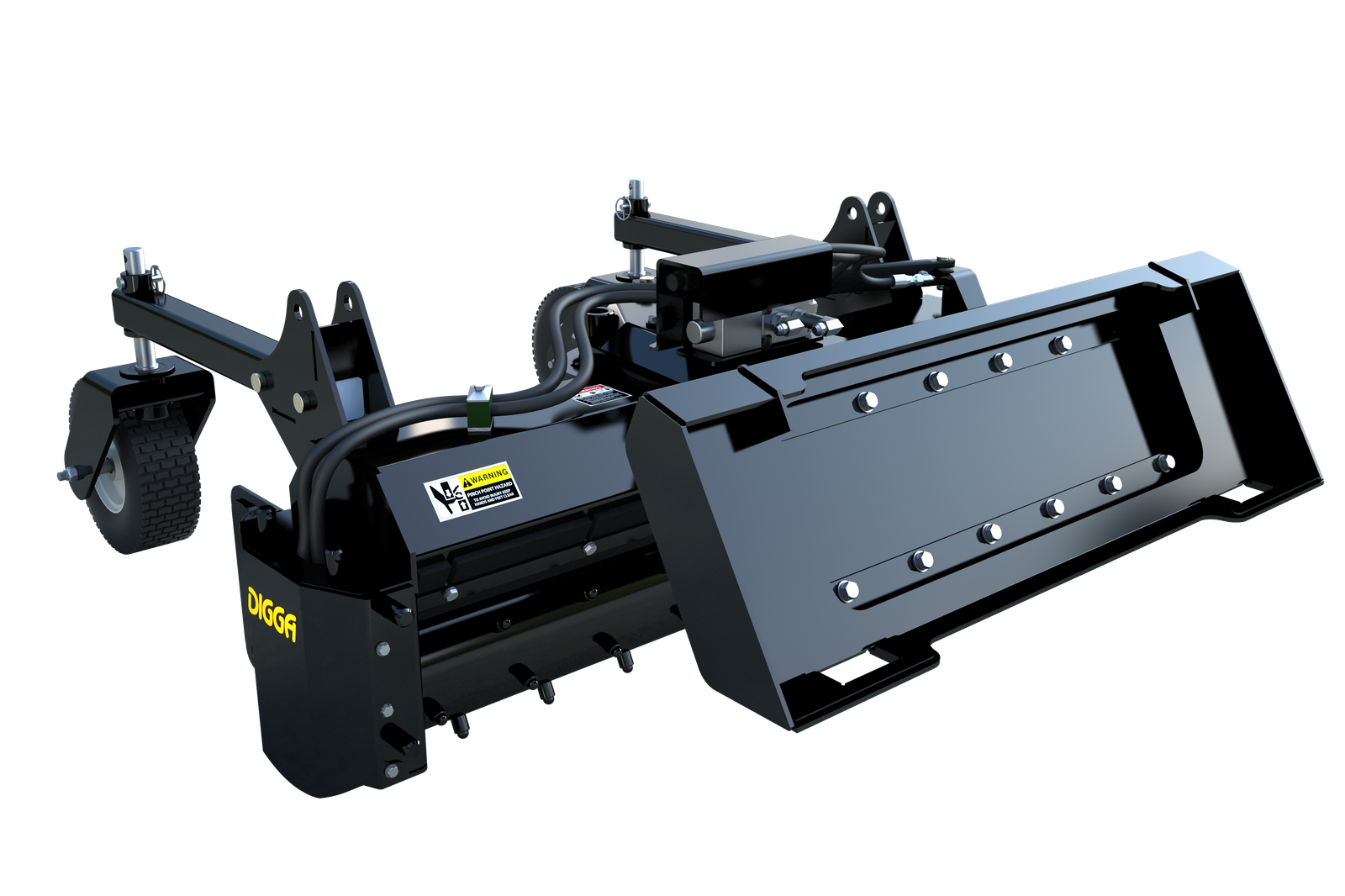

The Digga PR-480019 Mini Skid Steer Soil Conditioner grades, levels, rakes, removes debris, pulverizes soil, and dethatches — all with one attachment. The 48"" fully hydraulic bi-directional drum works soil in both directions for maximum efficiency. Manual angle adjustment to 20-25° in either direction. Removable spoil plates for windrowing. Foldable legs and removable jockey wheels for easy transport and storage. For 9-20 GPM mini skid steer loaders. Also available in 60"" width and with hydraulic angle option. Made in USA by Digga.
⚙️ Key Features
- PR-480019 | 48"" wide bi-directional hydraulic drum
- Manual angle adjustment to 20-25° in either direction
- Removable spoil plates — for windrowing operation
- Foldable legs and removable jockey wheels — easy transport and storage
- 9-20 GPM | 3,500 PSI @ 16 GPM | 25 kW (34 HP)
- Mini Universal (Dingo/Vermeer/Ditch Witch) and Bobcat MT mounts available
- Also available 60"" width with hydraulic angle option
- Made in USA by Digga
🔑 Benefits
- Bi-directional drum provides twice the working passes per area vs one-directional units
- One attachment grades, levels, rakes, and dethatches — eliminates multiple implement passes
- Removable spoil plates enable windrowing for debris collection along machine path
- Foldable legs and jockey wheels provide standalone stability for storage without a machine
📊 Specifications
| Specification | Value |
|---|---|
| SKU | PR-480019 |
| Width | 48"" (1,220mm) |
| Also Available | 60"" width |
| Drum | Bi-directional hydraulic |
| Angle | Manual to 20-25° either direction (hydraulic option available) |
| Flow | 9-20 GPM |
| Pressure | 3,500 PSI @ 16 GPM |
| Power | 25 kW (34 HP) |
| Spoil Plates | Removable (for windrowing) |
| Transport | Foldable legs + removable jockey wheels |
| Mounts | Mini Universal | Bobcat MT (sold as variants) |
| Origin | Made in USA by Digga |
🔗 Attachment Compatibility
Select mount variant for your machine: Mini Universal (Toro Dingo, Ditch Witch, Vermeer, Boxer, Ramrod) or Bobcat MT. Requires 9-20 GPM auxiliary hydraulic circuit. Also available in 60"" width with hydraulic angle option — see variant selector.
🚜 Machine Compatibility
Compatible with mini skid steer loaders:
| Toro Dingo | Ditch Witch | Vermeer |
| Boxer | Bobcat MT | ASV / Terex |
Select Mini Universal (Dingo/Vermeer/Ditch Witch/Boxer/Ramrod) or Bobcat MT variant. Requires 9-20 GPM aux hydraulic.
❓ FAQs
|
Q: What is the difference between manual and hydraulic angle?
Manual angle: the operator manually adjusts the drum angle to 20-25° before or after each pass — no additional hydraulic circuit required. Hydraulic angle: angle adjustment is hydraulic, controllable from the operator seat during operation — requires a second aux hydraulic circuit but allows on-the-fly angle changes. Select hydraulic angle for contoured or sloped terrain work. |
|
Q: Does the PR-480019 work on all mini skid steers?
Available in Mini Universal mount (for Toro Dingo, Ditch Witch, Vermeer, Boxer, Ramrod) and Bobcat MT mount. Confirm your machine uses one of these interfaces before ordering. |
|
Q: What is windrowing and when should I use it?
Windrowing means collecting processed material along the sides of the work area rather than leaving it spread flat. Install the spoil plates to direct debris and processed soil into a windrow as you work. Use for debris cleanup or when you need to collect displaced material for later removal. |
|
Q: Can this prepare soil for sod installation?
Yes — the bi-directional drum pulverizes and levels the top 2-4"" of soil, creating an ideal seedbed or sod bed. One to two passes typically achieve the fine, level grade required for professional sod or seed installation. |
|
Q: What is the working depth?
Contact eSkidSteer at 866-757-8337 for specific working depth data. The soil conditioner typically penetrates 2-4"" depending on soil conditions and machine down-pressure. |
|
Q: Is a 60"" model available?
Yes — see the 60"" variant in the selector above, available in both manual and hydraulic angle versions with Mini Universal or Bobcat MT mount. |
📥 Downloads
Download Spec Sheet / Product Brochure (PDF)
🎥 Videos
