14-Pin Power Add-On Wire Kit for Attachment Applications: This cable is designed to add a dedicated power wire to your machine’s 14-pin connector so you can operate attachments that require a powered source.
Ideal for Select John Deere and CAT Machines: This kit is especially useful for John Deere machines built before 2020 and CAT D Series machines built before 2020 where a powered circuit may not already be available through the 14-pin connector.
Add Switched or Battery Power to Your Connector: The wire can be connected either to your battery or to a switched power source inside the cab so that the circuit activates only when the machine is powered on.
Machine-Specific Pin Locations:

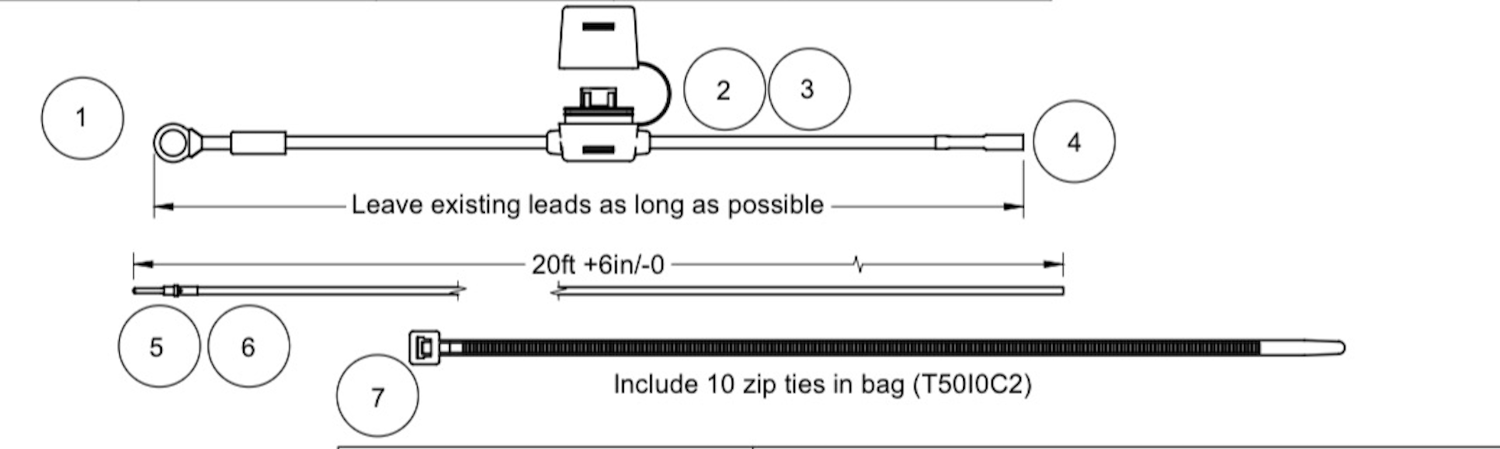

20-Foot Wire for Flexible Routing: The included 20-foot wire provides enough length to run cleanly through the cab and out to the boom without difficulty.
Useful for Powered Adapter Systems: This kit is an ideal solution when using powered adapters or attachments that need a dedicated electrical feed through the 14-pin connector.
This cable is used to add a powered circuit to your machine’s 14-pin connector so you can run attachments that require an electrical power source.
This kit is commonly needed on John Deere machines built before 2020 and CAT D Series machines built before 2020 that do not already have a powered 14-pin setup.
The wire should be connected either to the battery or to a switched power source inside the cab so it only becomes active when the machine is powered on.
The cable is routed from the cab along the hydraulic lines and down the boom until it reaches the back side of the 14-pin connector.
On John Deere machines, the pinned end is inserted into the K position of the 14-pin connector after removing the white water seal plug.
On CAT D Series machines, the pinned end is inserted into the P position of the 14-pin connector.
The wire is 20 feet long, which provides enough length to run it through the cab and out to the boom with room to spare.
Yes. You need to remove the strain relief at the back of the 14-pin connector by loosening the screws and twisting it off to access the pin locations.
CAN Pro adapters require a powered circuit to function properly, so this kit provides the needed power connection on machines that were not originally equipped for it.
Yes. Once installed, it becomes part of your machine’s 14-pin connector setup so you can power compatible attachments whenever needed.
