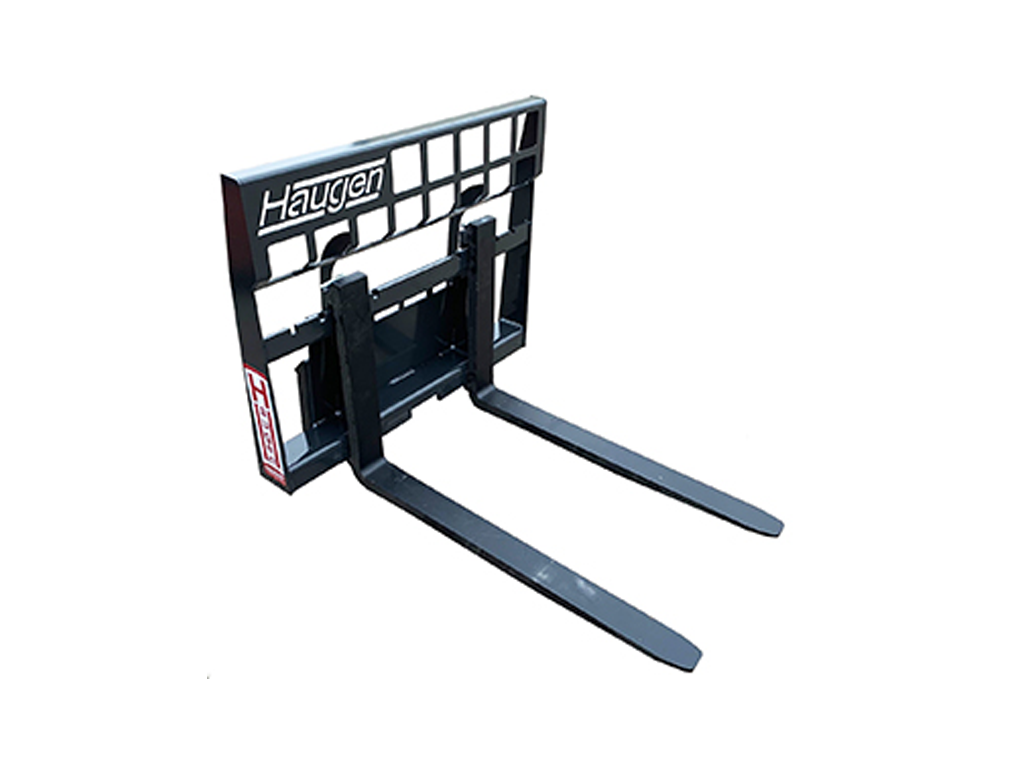

Mini Skid Steer Pallet Forks - Haugen Attachments

📘 Overview

Haugen's mini skid steer pallet forks cover three carriage mount types for the 42" fork configuration: MPF-T42 (Toro/Dingo plate mount, 1.18"×3"×42" tines, 182 lbs, 2,200 lb capacity), MPF-MT42 (Bobcat MT 55/85 plate mount, 1.18"×3"×42" tines, 182 lbs, 2,200 lb capacity), and HPF-C42 (Compact Skid-Steer mount, 1.8"×3"×42" tines, 220 lbs, 2,200 lb capacity). All feature a 36" rail-style frame, reinforced gussets, and 2,200 lb lift capacity. Made in USA.

⚙️ Key Features

• MPF-T42: Toro/Dingo plate mount | 1.18"×3"×42" tines | 182 lbs | 2,200 lbs capacity
• MPF-MT42: Bobcat MT 55/85 mount | 1.18"×3"×42" tines | 182 lbs | 2,200 lbs capacity
• HPF-C42: Compact Skid-Steer mount | 1.8"×3"×42" tines | 220 lbs | 2,200 lbs capacity
• 36" rail-style frame width
• Reinforced gussets
• Made in USA

🔑 Benefits

• Machine-specific mounting plates ensure a direct, structurally matched connection to your mini skid steer — mini skid steers use proprietary carriage mounting systems (Toro/Dingo style, Bobcat MT style, compact SSQA) that differ from full-size Universal Quick Attach. Using the correct plate for your machine ensures secure engagement geometry and full structural transfer of the 2,200 lb rated load through the mounting interface.
• 2,200 lb capacity matches or exceeds the rated operating capacity of most mini skid steers — mini skid steers typically have ROC in the 700-2,000 lb range. At 2,200 lb rated capacity, the pallet fork structure is not the limiting factor — the machine's own ROC limits the usable load, which is the correct engineering approach.
• Rail-style frame provides better visibility of the fork tines during placement — the rail-style frame uses horizontal rails rather than a solid plate back, which provides the operator with a sightline between the rails to see the fork tip position relative to the pallet. This is critical for accurate pallet entry in tight spaces with a small cab and limited sightlines.
• 42" fork length handles standard pallets (48"×40" GMA standard) on a machine sized for tight spaces — 42" tines provide adequate penetration depth on a standard pallet while keeping the overall attachment length manageable for the small footprint and tight turning radius of mini skid steers.

📊 Specifications

🔗 Attachment Compatibility

Select the correct mount for your machine: MPF-T42 for Toro/Dingo-style mini skid steers; MPF-MT42 for Bobcat MT 55 or MT 85; HPF-C42 for compact skid steers with standard SSQA. If your machine is not listed, contact Haugen at 877-580-6218 for alternative mounts.

🚜 Machine Compatibility

Designed for mini skid steers and compact machines:

Select the plate mount matching your machine. Verify machine rated operating capacity against fork + load weight before use. 2,200 lb rated fork capacity; actual usable load limited by machine ROC.
