Machine class
Skid Steer
Models available
10 variants
Beveled Heavy Rail
1/2"
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🪝Universal quick attach
📏Multiple sizes available
📘 Overview

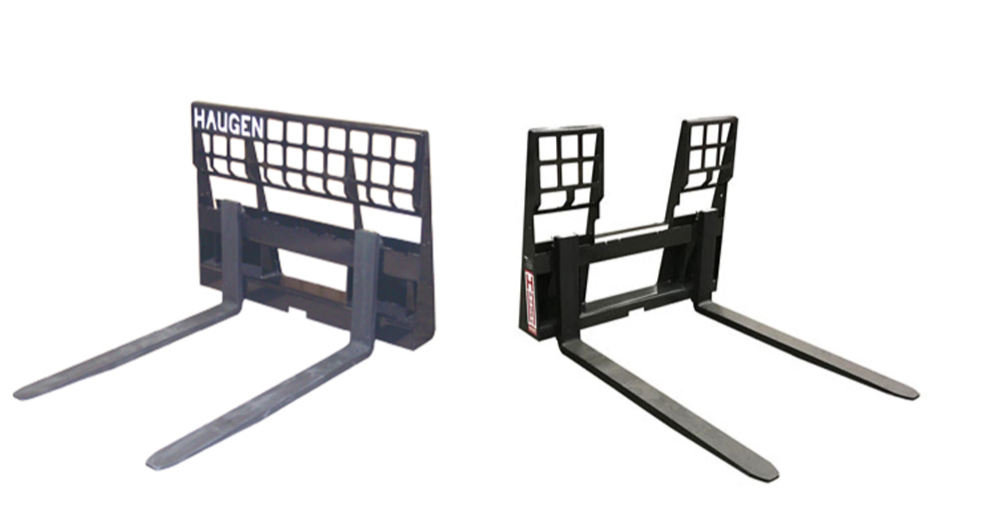

The Haugen skid steer pallet forks (MPF and MHPF) are rail-style forks — a frame with a 1/2" beveled heavy rail that lets the tines slide and lock anywhere along it, rather than sitting in fixed positions. Two capacity classes: MPF with 1.5" x 4" tines rated 5,000 lbs, and MHPF with 1.75" x 4" tines rated 6,000 lbs. Two frame styles, full brick guard or walk through.
Class 2 American-made tines fit any MHPF frame, in 42", 48", 60" and 72" lengths.
📊 Skid Steer Pallet Forks At a Glance
| Specification | Value |
|---|---|
| Mount | Universal Skid Steer Quick Attach |
| Machine class | Skid Steer |
| Models available | 10 variants |
| Weight | 265 lbs |
| Manufacturer | Marv Haugen Enterprises Inc., Casselton ND |
⚙ Key Features of the Haugen MPF and MHPF
- Rail style — tines adjust anywhere along the rail
- 1/2" beveled heavy rail
- Two capacity classes — 5,000 lbs (MPF) and 6,000 lbs (MHPF)
- Full brick guard or walk through frame
- Class 2 American-made fork tines
- Tine lengths 42" 48", 60" and 72" — pallet forks for skid steer work of any pallet width
- Universal skid steer quick attach — fits any machine that takes standard skid steer forks
📊 Pallet Fork Frames and Tines
| Model | Tine length | Tine size | Frame style | Capacity class |
|---|---|---|---|---|
| MPF 42-10 | 42" | 1.50" x 4" | Full brick guard | 5,000 lbs |
| MPF 42-WT | 42" | 1.50" x 4" | Walk through | 5,000 lbs |
| MPF 48-10 | 48" | 1.50" x 4" | Full brick guard | 5,000 lbs |
| MPF 48-WT | 48" | 1.50" x 4" | Walk through | 5,000 lbs |
| MHPF 48-10 | 48" | 1.75" x 4" | Full brick guard | 6,000 lbs |
| MHPF 48-WT | 48" | 1.75" x 4" | Walk through | 6,000 lbs |
| MHPF 60-10 | 60" | 1.75" x 4" | Full brick guard | 6,000 lbs |
| MHPF 60-WT | 60" | 1.75" x 4" | Walk through | 6,000 lbs |
| MHPF 72-10 | 72" | 1.75" x 4" | Full brick guard | 6,000 lbs |
| MHPF 72-WT | 72" | 1.75" x 4" | Walk through | 6,000 lbs |
🧱 Brick Guard or Walk Through?
- Full brick guard. A mesh back panel across the frame stops loose material — brick, block, bagged goods — sliding back toward the machine when the load shifts or the forks tilt. The choice for masonry, landscape supply and anything stacked loose.
- Walk through. An open frame with nothing across the back. You can see through it, which improves visibility on the load, and you can reach through it. Better for palletised goods that are strapped or wrapped and not going anywhere.
The two weigh within 5 lbs of each other, so it is purely about what you carry.
📏 Rail Style Pallet Forks and Tine Length
A rail frame lets tines slide anywhere along the rail and lock, instead of dropping into fixed slots. That matters when pallet widths vary — you set the spread to the load rather than picking the nearest preset.
Tines are Class 2 American made and fit any MHPF frame, in four lengths:
- 42" and 48" — standard pallet work. 48" covers most GMA pallets with the tips just clear.
- 60" — double-deep pallets or long material where 48" leaves the load overhanging the tips.
- 72" — long material such as trusses, pipe and bundled timber. Bear in mind that a long tine puts load further forward, which reduces what the machine can safely lift.
🚜 Skid Steer Compatibility
Universal skid steer quick attach on all frames, so any skid steer or compact track loader with the standard SSQA interface takes them.
Frame weights are 230 to 265 lbs, plus tines. The rated capacity is the fork assembly's limit — your machine's rated operating capacity is a separate limit and usually the lower one, particularly with long tines that carry the load further out.
BobcatCaterpillarJohn DeereCaseNew HollandTakeuchiKubotaGehl
❓ Skid Steer Pallet Forks FAQs
MPF or MHPF — which capacity?
MPF uses 1.5" x 4" tines rated 5,000 lbs; MHPF uses 1.75" x 4" tines rated 6,000 lbs. If you are regularly near the limit, the heavier section is worth having. Most skid steers reach their own capacity before either fork does.
Brick guard or walk through?
Brick guard if you carry loose material that could slide back toward the machine. Walk through if loads are strapped or wrapped and you would rather see through the frame. Weight is effectively the same.
What does rail style mean on pallet forks for skid steer use?
The tines slide along a rail and lock wherever you set them, rather than dropping into fixed positions. You can match the spread to each pallet instead of settling for the nearest slot.
Which tine length?
48" handles standard pallets. 60" suits double-deep or longer loads. 72" is for trusses, pipe and bundled material — but the longer the tine, the further forward the load sits and the less your machine can lift.
Can I change tines later?
Yes. Class 2 American-made tines fit any MHPF frame, so you can add a longer or shorter pair without replacing the frame.
How much can I actually lift?
Whichever is lower — the fork rating or your machine's rated operating capacity. On most skid steers the machine is the limit, and it drops further with long tines because the load sits further from the coupler.
