Capacity per pair
3,740 lb
Length
36 – 42 in
Models available
2 variants
Guaranteed Fit
Fast Shipping
Hassle-Free Returns
Description
🏭Made in USA since 1981
🔒1-year warranty on replacement forks
🔨Forged carbon steel
📘 Overview

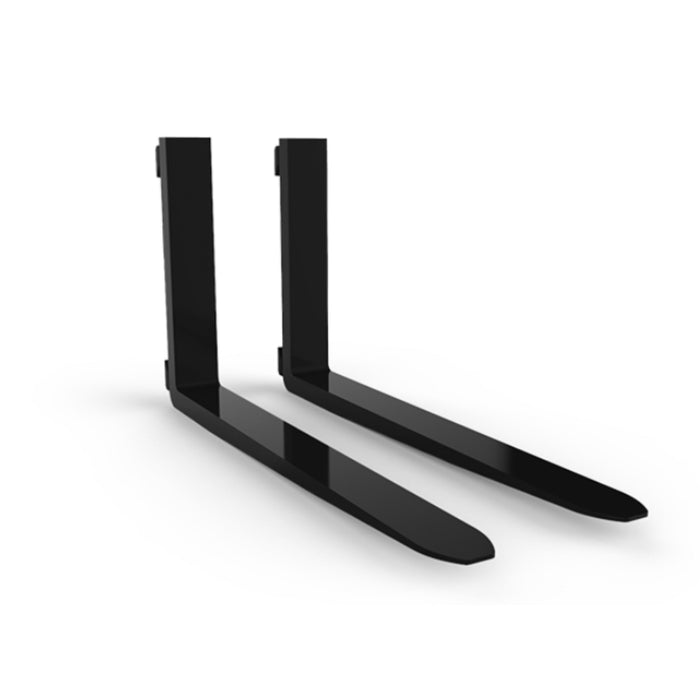

These are the tines on their own — ITA Class 1 mini skid steer pallet forks for a fork frame you already own. Two lengths are offered: F136X4X36CL1 at 36 inches and F136X4X42CL1 at 42 inches, both 1.36 inches thick by 4 inches wide and rated 3,740 lb per pair at a 24 inch load center. Class 1 is the smallest ITA carriage class and is what mini skid steer fork frames use, so these fit the Star 110-MINI-ITA and 110-MINIBC-ITA frames and any other Class 1 frame. Buy them to replace a worn or bent pair, or to add a second length to a frame already on the machine.
⚙ Key Features of the Star Industries Class 1 Mini Fork Tines
- Two lengths: 36 in (F136X4X36CL1) and 42 in (F136X4X42CL1)
- Section 1.36 in thick x 4 in wide
- Rated 3,740 lb per pair at a 24 in load center
- ITA Class 1 — the mini skid steer carriage standard
- Fits Star 110-MINI-ITA and 110-MINIBC-ITA frames, and any other Class 1 frame
- Sold as a pair
- Forged from heat-treated premium carbon steel
- ITA style tines lock into position and cannot swing out when loads are dumped
- Class 1 forks and mini pallet fork tines sold without a frame
- ITA class 1 forks that work as a mini skid steer fork attachment on any Class 1 frame
- Replacement mini forks and mini loader forks for a frame already on the machine
- 1-year warranty on replacement forks, made in the USA since 1981
🔑 Why Buyers Choose the Star Industries Class 1 Mini Fork Tines
- Tines are a wear part and the frame is not — a bent tine does not mean a new fork frame. Class 1 is a standard, so replacement tines fit the frame already on the machine.
- Rated above the frame they hang on — 3,740 lb per pair against a 2,800 lb rating on the Star mini frames, so the frame remains the governing limit and the tines are not the weak point.
- The 24 inch load center is where the rating applies — a load whose centre sits further out than 24 inches from the heel reduces the safe capacity, which matters on a mini machine where operators routinely carry oversized items.
- 36 inches turns, 42 inches supports — a shorter tine manoeuvres in nursery rows and greenhouse aisles; a longer one carries a full-depth pallet without the load overhanging the tip.
- Forged from one piece, not fabricated — heat-treated carbon steel forged as a single piece resists bending in a way a welded tine does not, which is what keeps a mini fork straight after a mis-picked load.
📊 Star Industries Class 1 Mini Fork Tines Specifications
| Fork Model | Section | Length | Class | Capacity per pair | Load Center |
|---|---|---|---|---|---|
| F136X4X36CL1 | 1.36 in x 4 in | 36 in | ITA Class 1 | 3,740 lb | 24 in |
| F136X4X42CL1 | 1.36 in x 4 in | 42 in | ITA Class 1 | 3,740 lb | 24 in |
📋 Mini Fork Tine Options at Checkout
| Option as shown at checkout | What you get |
|---|---|
| 36" Class 1 Forks | F136X4X36CL1 — 1.36 in x 4 in x 36 in ITA Class 1, 3,740 lb per pair |
| 42" Class 1 Forks | F136X4X42CL1 — 1.36 in x 4 in x 42 in ITA Class 1, 3,740 lb per pair |
🔗 Which Frames These Tines Fit
These are ITA Class 1 tines and fit any Class 1 fork frame, including the Star mini fork frames 110-MINI-ITA for the Dingo-style quick-tach and 110-MINIBC-ITA for the Mini Bobcat quick-tach, both rated 2,800 lb. If you need the frame as well, complete assemblies are available with tines already fitted. Locking pin assemblies are stocked by class — F001-CL2 for Class 2, F001-CL3 for Class 3 and F001-CL4 for Class 4 — so a Class 1 frame using a different retention method should be checked against the frame documentation.
🚜 Which Machines Use These Mini Skid Steer Pallet Forks?
These tines fit a fork frame rather than a machine directly, so what matters is the frame carriage class. ITA Class 1 is the standard used by mini skid steer fork frames, which in turn mount to the Dingo-style quick-tach used by Dingo, Ditch Witch, Vermeer, Boxer and Ramrod machines, or to the Mini Bobcat quick-tach. Full-size skid steer fork frames use the larger Class 2 carriage, so Class 1 tines will not fit them. The 2,800 lb frame rating and your machine rated operating capacity are both lower than the 3,740 lb tine rating, and the lowest of the three governs the lift.
| Requirement | Detail |
|---|---|
| Fork class | ITA Class 1 |
| Fits frames | Star 110-MINI-ITA and 110-MINIBC-ITA, and other Class 1 frames |
| Machine types | Mini skid steer loaders via a Class 1 fork frame |
| Not compatible | Full-size skid steer fork frames, which use ITA Class 2 |
| Governing limit | The lowest of tine rating, frame rating and machine capacity |
❓ Star Industries Class 1 Mini Fork Tines Questions, Answered
Will these tines fit my mini fork frame?
These mini skid steer forks fit any ITA Class 1 fork frame, including the Star 110-MINI-ITA for Dingo-style machines and the 110-MINIBC-ITA for Mini Bobcat. Class 1 is a standard, so tines are interchangeable between Class 1 frames from different suppliers.
Should I choose 36 inch or 42 inch tines?
A 36 inch tine manoeuvres better in nursery rows, greenhouse aisles and other tight access. A 42 inch tine supports a full-depth pallet without the load overhanging the tip. Both are rated 3,740 lb per pair at a 24 inch load center.
What does 3,740 lb at a 24 inch load center mean?
It is the rated capacity of the pair when the load centre of gravity sits 24 inches from the heel of the tines. If the load centre sits further out, the safe capacity is lower, which matters when carrying oversized or unevenly packed items.
Are these tines stronger than the frame?
Yes. The tines are rated 3,740 lb per pair while the Star mini fork frames are rated 2,800 lb, so the frame is the governing limit. Your mini loader rated operating capacity is usually lower again, and that is what actually limits the lift.
Can I use Class 1 tines on a full-size skid steer fork frame?
No. Full-size skid steer fork frames use the larger ITA Class 2 carriage. Class 1 is the smaller standard used by mini fork frames, and the two do not interchange.
Do the tines come as a pair?
Yes, both the F136X4X36CL1 and F136X4X42CL1 are supplied as a pair, and the 3,740 lb rating applies to the pair.
Why buy tines without a frame?
Because tines are the wear part. A bent or worn tine does not require a new frame, and adding a second length to an existing frame is cheaper than a second complete assembly.
What are the tines made from?
Each tine is forged from heat-treated premium carbon steel as a single piece, which resists bending better than a fabricated tine. The ITA hook design locks the tine into position so it cannot swing out when a load is dumped.
What warranty applies to replacement fork tines?
Star publishes a 1-year warranty on replacement forks. The tines are made in the USA.
How do I order and how is shipping calculated?
Add the tines to your cart on eskidsteer.com and complete checkout online. Shipping is calculated at checkout once you enter your delivery address.
