Description
🏭Made in USA since 1981
🔒5-year factory guarantee
🔨All-welded steel construction
📘 Overview

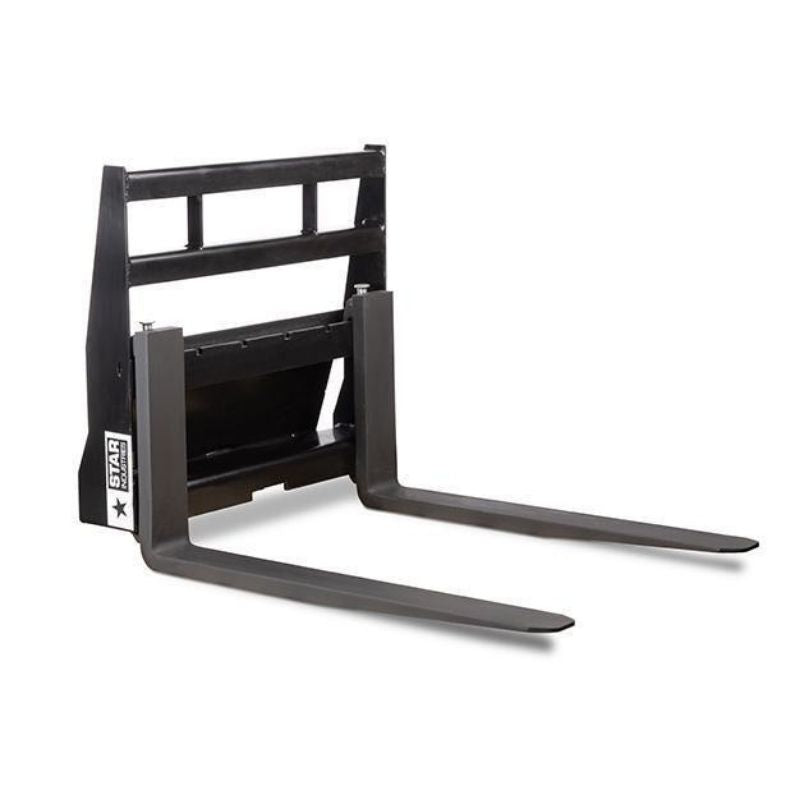

Star Industries mini skid steer pallet forks turn a mini skid steer into a forklift, using an ITA Class 1 fork frame rated at 2,800 lb. Two mounts are offered and they are not interchangeable: the 110-MINI-ITA fits the Dingo-style quick-tach used by Dingo, Ditch Witch, Vermeer, Boxer and Ramrod machines, and the 110-MINIBC-ITA fits the Mini Bobcat quick-tach. You can order the frame on its own, or as a complete assembly with 36 inch or 42 inch Class 1 tines already fitted. The ITA hook style locks the tines in position so they cannot swing out when a load is dumped.
⚙ Key Features of the Star Industries Mini Fork Frame
- Two mounts: Dingo-style quick-tach and Mini Bobcat quick-tach — not interchangeable
- Frame rated 2,800 lb, ITA Class 1
- Frame width 30.5 in, height 27.5 in
- Available as frame only or as a complete assembly with tines
- Tine options 36 in (F136X4X36CL1) and 42 in (F136X4X42CL1), 1.36 in thick x 4 in wide
- Tines rated 3,740 lb per pair at 24 inch load center
- ITA style tines lock into position and cannot swing out when loads are dumped
- All-welded steel construction
- A mini skid steer fork attachment that ships ready to run, frame and tines together
- 5-year factory guarantee, made in the USA since 1981
🔑 Why Buyers Choose the Star Industries Mini Fork Frame
- The two mounts are genuinely different frames — a Dingo-style quick-tach frame does not fit a Mini Bobcat machine and the reverse is also true, so the mount is the first decision and getting it wrong means a return.
- ITA hook-style tines cannot swing out on a dump — the tines lock into the frame rather than hanging loose, which is what stops a tine swinging free when a load slides off at height.
- Tines are rated well above the frame — 3,740 lb per pair at a 24 inch load center against a 2,800 lb frame rating, so the frame is the governing limit and the tines are not the weak point.
- Frame-only lets you keep existing tines — if you already run Class 1 forks, the 110-MINI-ITA or 110-MINIBC-ITA frame alone is the cheaper route; the complete assemblies exist for machines starting from nothing.
- 36 inch tines clear tighter spaces, 42 inch reach deeper pallets — a 36 inch tine turns inside a nursery row or a narrow greenhouse aisle, while a 42 inch tine supports a full-depth pallet without the load overhanging the tip.
📊 Star Industries Mini Fork Frame Specifications
| Model | Fits | Capacity | Class | Width | Height |
|---|---|---|---|---|---|
| 110-MINI-ITA | Dingo, Ditch Witch, Vermeer, Boxer, Ramrod | 2,800 lb | ITA Class 1 | 30.5 in | 27.5 in |
| 110-MINIBC-ITA | Mini Bobcat | 2,800 lb | ITA Class 1 | 30.5 in | 27.5 in |
📋 Mini Fork Frame Options at Checkout
| Option as shown at checkout | What you get |
|---|---|
| Mini Forkframe To Fit Dingo Style QT | Model 110-MINI-ITA, frame only, Dingo-style quick-tach, ITA Class 1, 2,800 lb |
| Mini Dingo Style QT Forkframe Assembly w/ 36" Forks | Model 110-MINI-36-ASSY, Dingo-style frame with a pair of 36 in Class 1 tines |
| Mini Dingo Style QT Forkframe Assembly w/ 42" Forks | Model 110-MINI-42-ASSY, Dingo-style frame with a pair of 42 in Class 1 tines |
| Mini Forkframe To Fit Mini Bobcat QT | Model 110-MINIBC-ITA, frame only, Mini Bobcat quick-tach, ITA Class 1, 2,800 lb |
| Mini Bobcat QT Forkframe Assembly w/ 36" Forks | Model 110-MINIBC-36-ASSY, Mini Bobcat frame with a pair of 36 in Class 1 tines |
| Mini Bobcat QT Forkframe Assembly w/ 42" Forks | Model 110-MINIBC-42-ASSY, Mini Bobcat frame with a pair of 42 in Class 1 tines |
🔗 Tines and Assemblies for Mini Skid Steer Pallet Forks
Tines are ordered as a pair and are ITA Class 1 in both lengths: F136X4X36CL1 at 1.36 in thick x 4 in wide x 36 in long, and F136X4X42CL1 at the same section in 42 in. Both are rated 3,740 lb per pair at a 24 inch load center. Complete assemblies pair a frame with tines already fitted — 110-MINI-36-ASSY and 110-MINI-42-ASSY on the Dingo-style mount, 110-MINIBC-36-ASSY and 110-MINIBC-42-ASSY on the Mini Bobcat mount. Order frame plus tines separately if you already have Class 1 forks on hand.
🚜 Which Mini Skid Steers Fit These Fork Frames?
Mounting is by mini skid steer quick-tach, and the two standards are separate. The Dingo-style quick-tach frame fits Dingo, Ditch Witch, Vermeer, Boxer and Ramrod mini skid steers. The Mini Bobcat quick-tach frame fits Mini Bobcat machines. Mini quick-tach plates are not interchangeable with full-size skid steer universal quick attach, so a standard skid steer fork frame will not mount to a mini machine. Identify which of the two mini standards your machine uses before ordering, and note that the 2,800 lb frame rating is the attachment limit — your machine rated operating capacity may be lower.
| Mount standard | Machines | Frame model |
|---|---|---|
| Dingo-style quick-tach | Dingo, Ditch Witch, Vermeer, Boxer, Ramrod | 110-MINI-ITA |
| Mini Bobcat quick-tach | Mini Bobcat mini skid steers | 110-MINIBC-ITA |
| Full-size skid steer SSQA | Not compatible — use a full-size fork frame | Not applicable |
❓ Star Industries Mini Fork Frame Questions, Answered
Which mini skid steer fork frame fits my machine?
There are two mounts. Choose the 110-MINI-ITA for Dingo, Ditch Witch, Vermeer, Boxer and Ramrod machines, which share the Dingo-style quick-tach. Choose the 110-MINIBC-ITA for Mini Bobcat machines. The two are not interchangeable, so identify your quick-tach standard before ordering.
Should I order the frame only or a complete assembly?
Order frame only (110-MINI-ITA or 110-MINIBC-ITA) if you already own ITA Class 1 tines. Order a complete assembly if you are starting from nothing: 110-MINI-36-ASSY or 110-MINI-42-ASSY on the Dingo-style mount, and 110-MINIBC-36-ASSY or 110-MINIBC-42-ASSY on the Mini Bobcat mount.
Should mini pallet forks be 36 inch or 42 inch?
For dingo pallet forks and every other mini mount, a 36 inch tine manoeuvres better in nursery rows, greenhouse aisles and other tight spaces. A 42 inch tine supports a full-depth pallet so the load does not overhang the tip. Both are ITA Class 1, 1.36 inches thick by 4 inches wide, and both are rated 3,740 lb per pair at a 24 inch load center.
How much can the mini skid steer pallet forks lift?
The Star Industries mini fork frame is rated 2,800 lb and the Class 1 tines are rated 3,740 lb per pair at a 24 inch load center, so the frame is the governing limit at 2,800 lb. Your mini skid steer rated operating capacity is usually lower than that and is what actually limits the lift.
Will a full-size frame fit, or do I need a mini skid steer attachment?
No. Ditch witch pallet forks and every other mini mount use quick-tach plates that are a different and smaller standard than full-size skid steer universal quick attach, and the two do not interchange. A mini machine needs a mini fork frame — either the Dingo-style 110-MINI-ITA or the Mini Bobcat 110-MINIBC-ITA.
What does ITA Class 1 mean on a mini fork frame?
ITA is the fork carriage standard, and Class 1 is the smallest carriage class, which is what mini skid steer frames use. The tines hook over the frame bar rather than hanging loose, and lock into position so they cannot swing out when a load is dumped. Class 1 tines from other suppliers will fit the same frame.
What are the mini fork frame dimensions?
Both the 110-MINI-ITA and the 110-MINIBC-ITA frames measure 30.5 inches wide by 27.5 inches high. Tines are 1.36 inches thick by 4 inches wide in either 36 or 42 inch lengths.
Are the mini fork frames covered by a warranty?
The Star Industries mini fork frame carries a 5-year factory guarantee and is made in the USA. Construction is all-welded steel.
Do the tines come as a pair?
Yes. Both the F136X4X36CL1 and F136X4X42CL1 are supplied as a pair and are rated 3,740 lb per pair at a 24 inch load center. The complete assemblies already include a pair fitted to the frame.
How do I order mini skid steer pallet forks?
Add the frame or complete assembly to your cart on eskidsteer.com and complete checkout online. Enter your mini skid steer make and model on the order page so eskidsteer can confirm the quick-tach standard. Shipping is calculated at checkout once you enter your delivery address.
