Don’t park your FFC attachments just because they’re on a different electrical standard. This FFC attachment to Cat/ASV/Terex 8-pin adapter lets you run popular FFC hydraulic attachments on your Cat, ASV or Terex skid steer loader without cutting wires or hacking the factory harness.

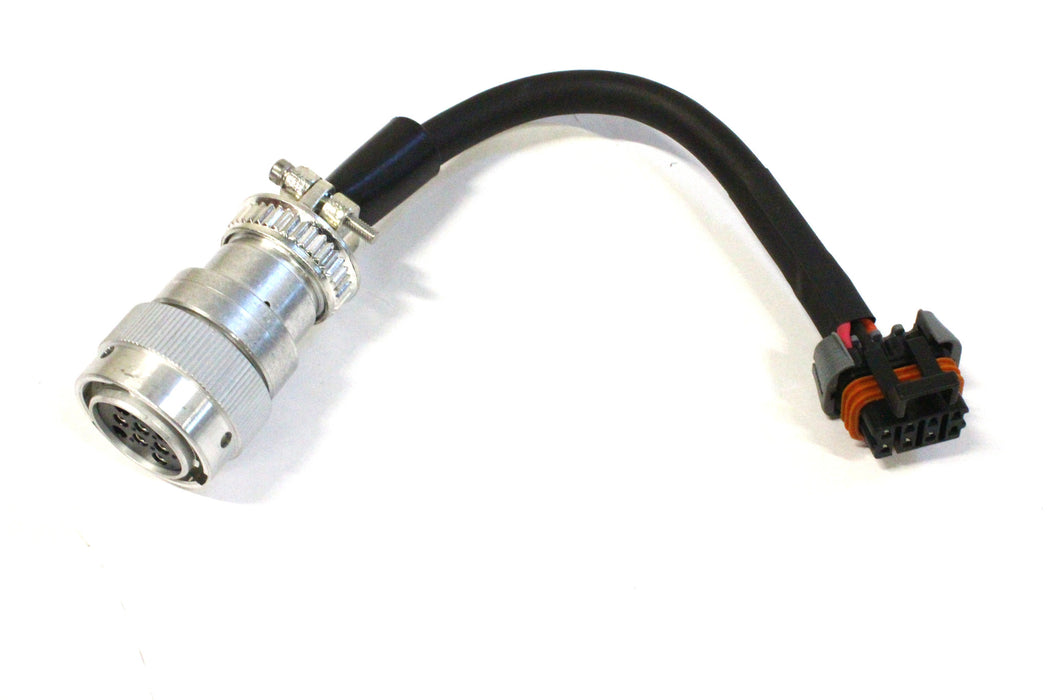

Installation is simple: plug one end of the harness into your Cat/ASV/Terex loader 8-pin connector, and connect the other end to your FFC attachment with 8-pin Delphi Metripak plug. Power up the machine, use your existing joystick switches, and you’re ready to blow snow, rake, grade or push without rewiring in the field.
Control Functions & Output: Cat, ASV and Terex 8-pin systems provide 4 switched electrical ports. This adapter is built with 5 pins installed, giving you the key control directions you actually use in the cab: Up/Down and Left/Right, plus ground. It’s purpose-built for attachments such as snowblowers, Harley rakes, dozer blades, V-plows, tilt-tach controls and similar tools that don’t require extra auxiliary functions.
ASV Users – Important: The 8-pin side of this adapter is wired to match Caterpillar ABC-series machines using pins A, B, C, D, E and H. On many ASV skid steers, you’ll need to relocate Pin H to Pin G to achieve full functionality. We include the necessary pin tools in the kit, and step-by-step instructions are available in the video section on our website so you can make the change cleanly and correctly.
If you expect to move pins frequently across multiple attachments, our free single-use tools will work, but shops, dealers and high-volume users will benefit from upgrading to our commercial-duty pin tools below for faster, long-term service.
Both ends of this product are built to factory pin specifications with original factory parts. We cannot guarantee that your machine was ordered with all of the factory controls, nor can we guarantee that your attachment is pinned accordingly as well. This is especially evident with auction attachments or second hand items bought on the internet. We include tools and instructions on moving pins to make everything align.
Yes. This adapter is designed specifically to let FFC 8-pin Delphi Metripak attachments run on Cat, ASV, and Terex skid steer loaders equipped with 8-pin controls.
Cat/ASV/Terex 8-pin systems provide 4 switched electrical functions. This adapter supplies Up/Down and Left/Right—these are the only functions available due to manufacturer limitations.
Yes. These attachments typically use the simple directional control supported by the adapter. This adapter is ideal for snowblowers, Harley rakes, dozers, V-plows, tilt-tach controls, and similar electrically-actuated tools.
No. Cold Planers require six electrical outputs. Cat/ASV/Terex loaders only provide four, and two additional functions are hydraulic rather than electrical—making Cold Planers incompatible with this adapter.
The 8-pin layout on this adapter is built for Caterpillar ABC-series attachments. ASV machines require Pin H to be moved to Pin G. Tools and instructions are included, and a how-to video is available on the website.
No. Single-use pin tools are included with the adapter. For frequent or professional pin-moving, commercial-grade tools are recommended.
