📘 Overview

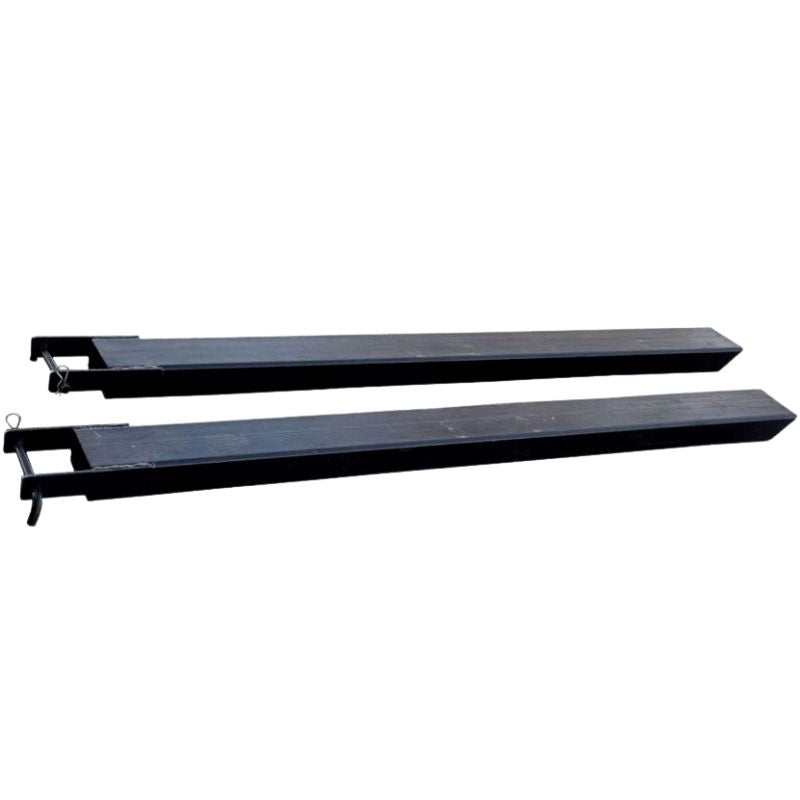

Haugen MFE fork extensions add reach to existing forklift or telehandler tines — the simplest way to handle loads that exceed your machine's standard tine length. Available in four lengths (72"/6 ft, 90"/7.5 ft, 96"/8 ft, 108"/9 ft) and four cross-section sizes (2.5"×5", 3"×6", 3"×7", 4"×8" heavy), yielding 14 SKUs. Full-tube construction (not open-bottom) maximizes rigidity. A 45-degree bevel on the tip allows easy entry into pallets. Extensions pin onto existing tines and are rated per pair. The 4"×8" heavy models (MFE 848-H and MFE 948-H) are available at 8 ft and 9 ft for large-tine heavy-duty applications. Made in USA with a 1-year warranty.

⚙️ Key Features

• Four lengths: 72" (6 ft), 90" (7.5 ft), 96" (8 ft), 108" (9 ft)
• Four cross-sections: 2.5"×5", 3"×6", 3"×7", and 4"×8" heavy (8 ft and 9 ft only)
• Full-tube construction — closed on all four sides for maximum rigidity vs open-bottom designs
• 45-degree bevel tip — easy pallet entry
• Pins onto host fork tines — simple installation
• Capacity rated per pair
• Made in USA | 1-year warranty

🔑 Benefits

• Full-tube construction provides significantly more rigidity than open-bottom extensions — the bottom side of the extension bears in compression when loaded; a full-tube design keeps all four sides engaged, whereas open-bottom extensions have reduced torsional stiffness and can flex under uneven loads.
• Four cross-sections match the actual tine dimensions on your machine — extension cross-sections are built slightly oversized so they slide over the host tine with clearance. The right cross-section gives a snug fit that minimizes play and keeps the extension aligned with the tine centerline under load.
• 4"×8" heavy models serve large telehandler and industrial forklift tines — the H series (MFE 848-H, MFE 948-H) is for machines with 3.5"×7.5" or larger tines, which are common on higher-capacity telehandlers and industrial lift trucks where the standard 3"×7" extension would not fit.
• Extensions eliminate renting a longer-tine machine for occasional long-load jobs — keeping a pair of fork extensions on the job site converts any standard telehandler into a long-load machine when needed, avoiding a dedicated rental cycle for loads like structural lumber, roofing material bundles, or long pipe.

📊 Specifications

72" Extensions — Host tines minimum 48" required

90" Extensions — Host tines minimum 60" required

96" Extensions — Host tines minimum 64" required

108" Extensions — Host tines minimum 72" required

🔗 Attachment Compatibility

Match the extension cross-section to your host tine dimensions — the extension must slide over the tine with slight clearance. Each extension table specifies maximum host tine dimensions. Minimum host tine lengths are: 72" extensions → 48" host tines; 90" extensions → 60"; 96" extensions → 64" (approx.); 108" extensions → 72". OSHA guideline: fork extensions should not exceed 150% of the host tine length.

🚜 Machine Compatibility

Fits telehandlers, forklifts, and lift trucks with matching fork tine cross-sections. Verify your host tine dimensions match the extension's capacity chart before ordering. Compatible brands include:

OSHA guideline: Extensions should not exceed 150% of host tine length. 72" extension requires minimum 48" host tines; 90" requires 60"; 96" requires 64"; 108" requires 72".
