Extreme Duty Class 2 and Class 3 Pallet Forks Skid Steer - Haugen Attachments

📘 Overview

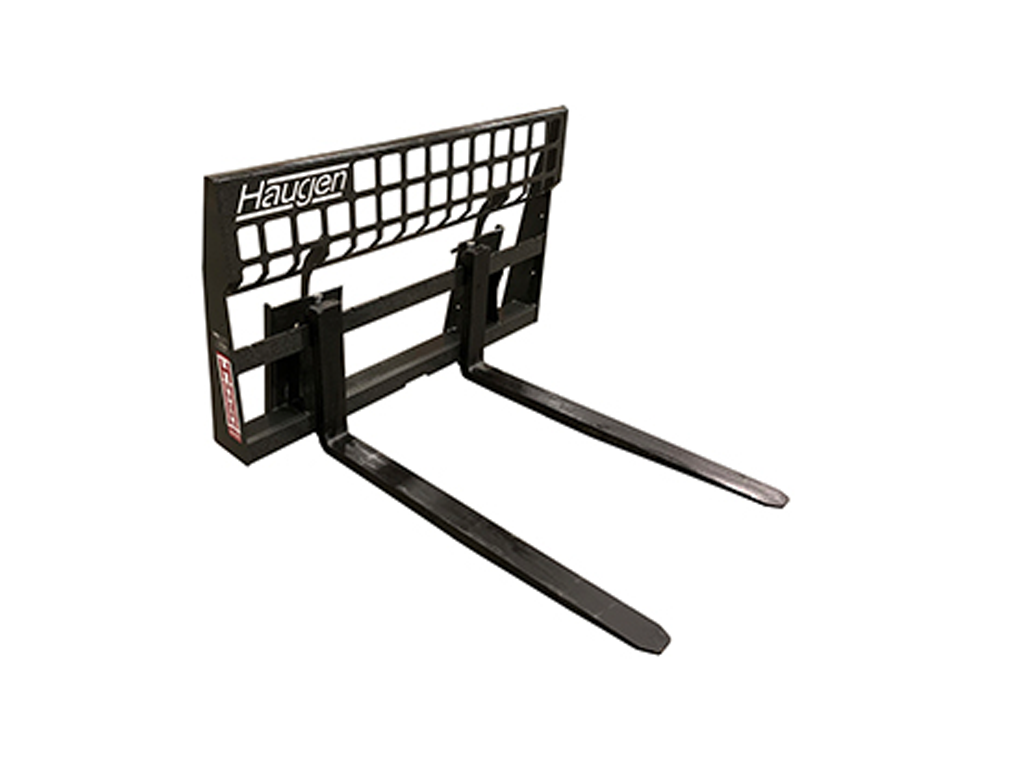

Haugen's extreme duty MHF series provides high-capacity pallet forks for skid steer in Class 2 (6,200 lb capacity) and Class 3 (10,000 lb capacity). Two frame widths: 45" and 60". Tine lengths from 48" to 96". Class 2 uses 1.75"×4" tines on 1-1/4"×3" carriage bars; Class 3 uses 2"×5" tines. Includes brick guard and reinforced sides. Universal Quick Attach. Made in USA with a 1-year warranty.

⚙️ Key Features

• Class 2 (MHF 45/60): 1.75"×4" tines | 6,200 lb capacity
• Class 3 (MHF-C3-60): 2"×5" tines | 10,000 lb capacity
• Frame widths: 45" and 60"
• Tine lengths: 48", 60", 72", 96" (Class 3 only for 96")
• 1-1/4"×3" top and bottom carriage bars (Class 2)
• Brick guard and reinforced sides
• Universal Quick Attach | Made in USA | 1-year warranty

🔑 Benefits

• Class 3 at 10,000 lb rated capacity covers the full lifting range of high-capacity skid steers and compact wheel loaders — the highest-capacity skid steers (Cat 299D3, Bobcat S850, JD 332G) are rated at 3,000-4,300 lbs ROC. Class 3 forks at 10,000 lb provide a safety margin that exceeds the machine's own ROC, ensuring the tines are not the limiting factor in any skid steer application even at maximum machine capacity.
• 60" frame width provides a wider spacing baseline than standard 48" frames for unstable or oversized loads — wider frames provide more stable lateral support for loads that extend beyond a standard 48" frame, including wide equipment, long steel, and non-palletized material. The 60" frame significantly improves stability on loads wider than 4 feet.
• 2"×5" Class 3 tines resist bending under high sustained loads that deform Class 2 tines — Class 2 tines (1.75"×4") are rated for 6,200 lbs. Under repeated loading near rating, tines accumulate fatigue. Class 3 tines (2"×5") at 10,000 lb rating provide a much larger structural margin in everyday commercial use, extending tine life dramatically in high-cycle fork operations.
• Brick guard protects the operator cab from falling material during high-stack loads — the brick guard is the protective frame between the forks and the carriage that prevents items from sliding backward off the tines into the cab. On high stacks (4+ pallet layers), the brick guard is essential for operator safety.

📊 Specifications

Class 2 — 6,200 lb Capacity

Class 3 — 10,000 lb Capacity

🔗 Attachment Compatibility

Universal QA. The fork rated capacity (6,200 or 10,000 lbs) always exceeds the machine's own ROC — the machine ROC is the operative limit. Verify your machine's rated operating capacity before use. At 520-590 lbs (known weights), subtract fork weight from machine ROC to determine maximum usable load.

🚜 Machine Compatibility

Compatible with skid steer loaders with Universal Quick Attach (SSQA):

No hydraulics required.
