14 Pin Socket and Pin Removal / Insertion Tool: This tool is designed specifically for standard 14-pin Deutsch-style plugs and receptacles commonly used across many skid steer brands. It is made for servicing pins and sockets in 14-pin connector systems only.
Compatible with Most 14 Pin Loader Connectors: This tool works with 14-pin connectors used on Bobcat, Caterpillar D Series, John Deere, Case, New Holland, Kubota, Doosan, JCB, Wacker Neuson, Volvo, Mustang, Gehl, and Yanmar machines.
Important Compatibility Note: This removal and insertion tool does not work with older CAT ABC Series machines, Terex, or 8-pin ASV loaders. It is also not intended for 7-pin or 8-pin connector systems.

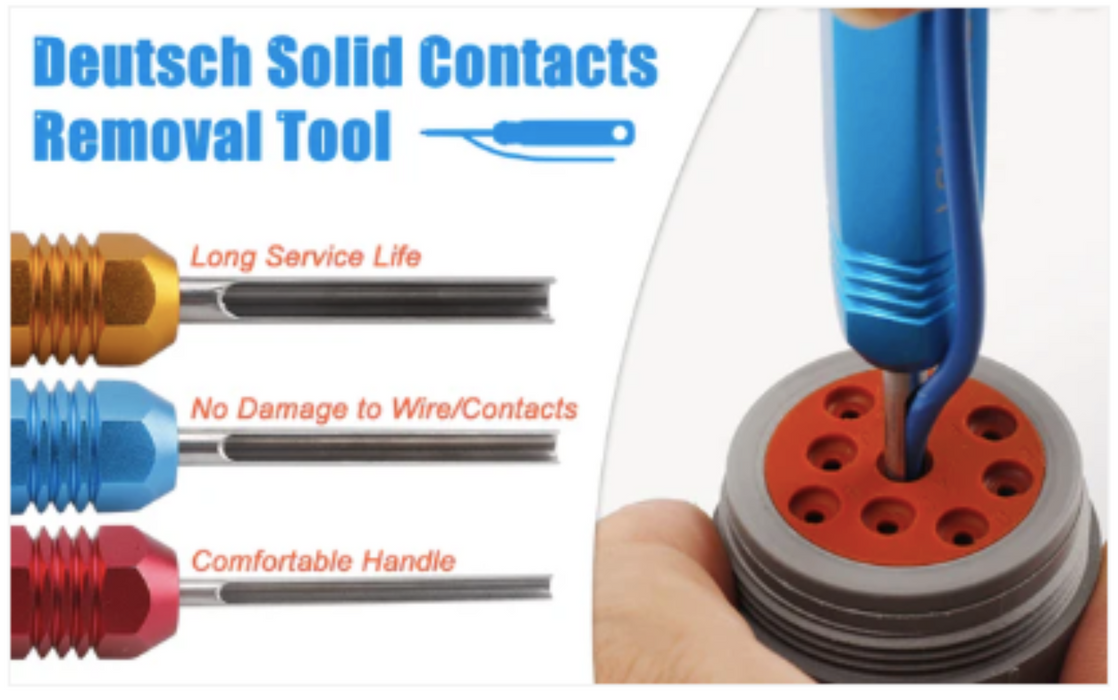

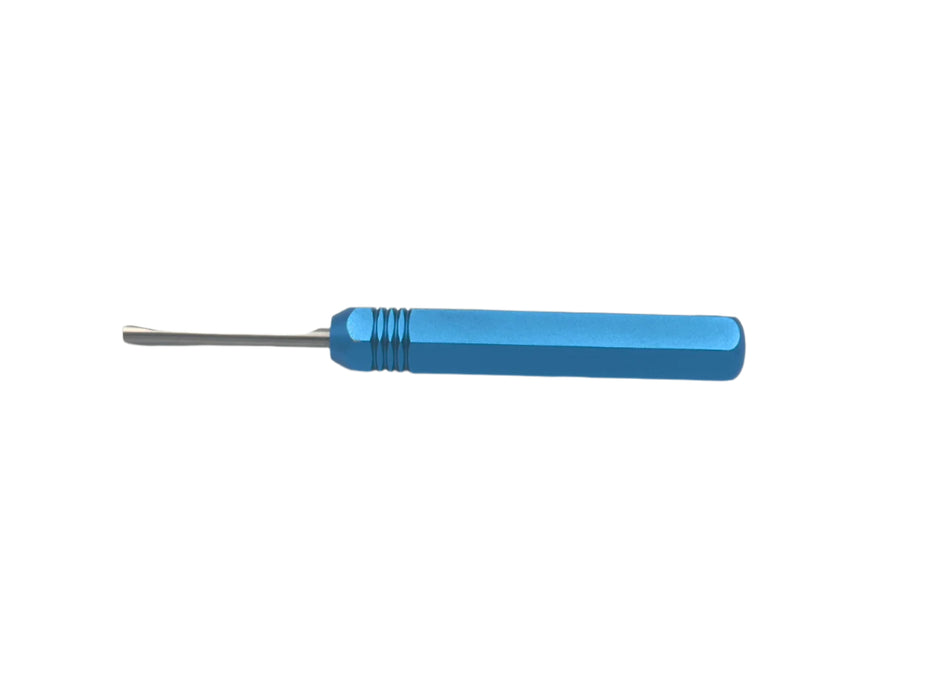

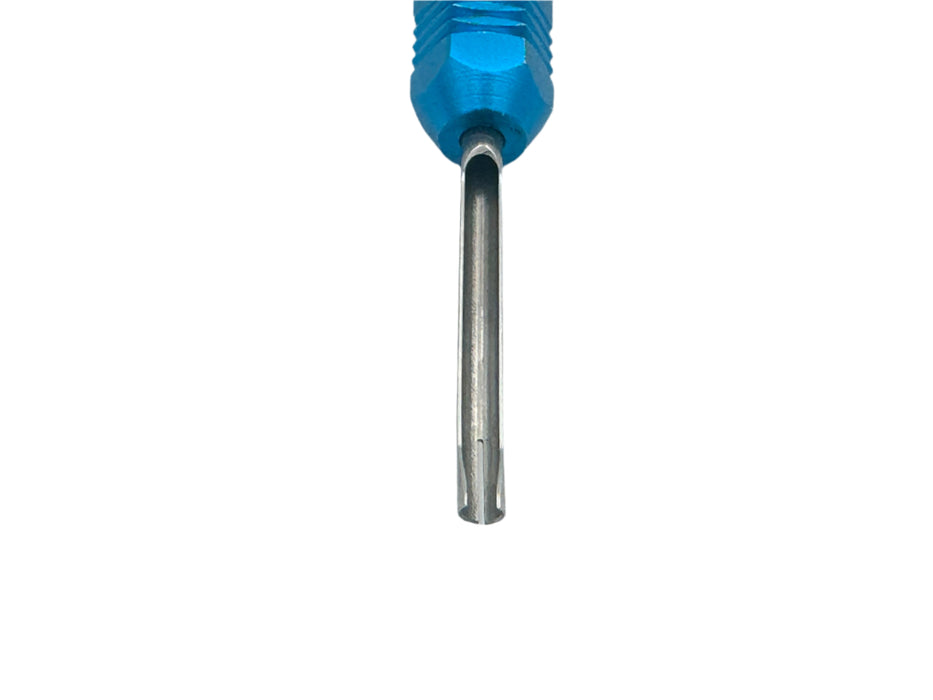

Professional-Grade Construction: Built to handle repeated field use, this tool features a CNC-machined aluminum handle and a stainless steel insert for long-term durability and dependable performance. The fluted tip is designed to fully wrap around the pin or socket for easier insertion and removal.
Designed for Connector Repairs and Maintenance: If you need to remove or install damaged pins or sockets on your attachment or machine connector, this tool provides a practical and reliable solution while helping reduce the risk of connector damage.
Fits Male and Female Deutsch HD Connectors: This tool is compatible with both male and female 14-pin Deutsch HD connector styles, making it a versatile option for repair work on machine-side and attachment-side connections.

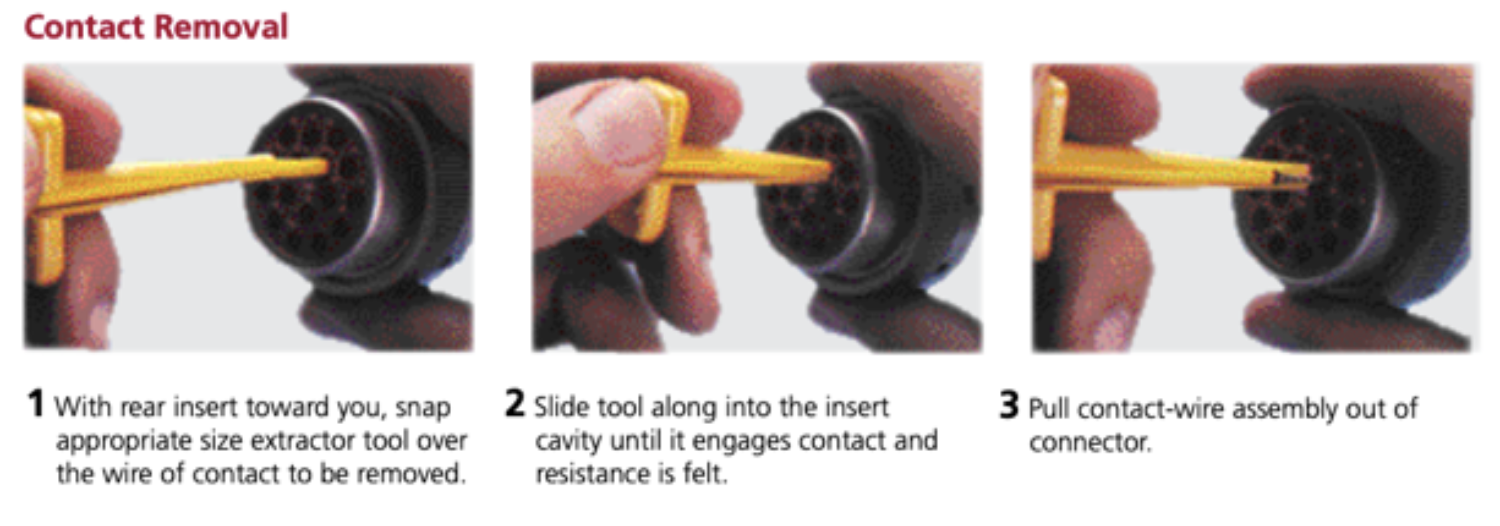

How It Works: From the back of the connector, slide the tool carefully over the wire and into the rubber pin or socket cavity. Turn the tool about a quarter turn until you feel it engage, then gently pull on the wire from the rear of the connector until the terminal releases.
If the pin or socket does not release immediately, pull the tool back slightly, rotate again, and push it back in. This helps catch the locking barbs correctly. Use technique rather than force, as excessive pulling can damage the wire or connector body.
This tool is designed to remove and install pins and sockets in standard 14-pin Deutsch connectors commonly found on skid steer loaders.
It works with most major brands using 14-pin connectors, including Bobcat, Caterpillar D Series, John Deere, Case, New Holland, Kubota, Volvo, and others.
No. This tool is specifically designed for 14-pin connectors and will not work with 7-pin or 8-pin systems.
Yes. It is designed to both remove existing pins and sockets and assist with proper insertion during installation.
This tool features a durable aluminum handle and stainless steel tip, making it far stronger and longer-lasting than typical plastic tools.
You slide the tool over the wire into the connector, rotate slightly to engage the locking tabs, and gently pull the wire to release the pin or socket.
No. Proper technique is more important than force. Applying too much pressure can damage the connector or wiring.
Yes. It is built for durability and repeated use, making it suitable for both occasional repairs and regular maintenance work.
Yes. With careful handling and proper technique, both beginners and experienced users can use this tool effectively.
Make sure your connector is a standard 14-pin Deutsch type and inspect the pins to ensure proper alignment before removal or installation.
