📘 Overview

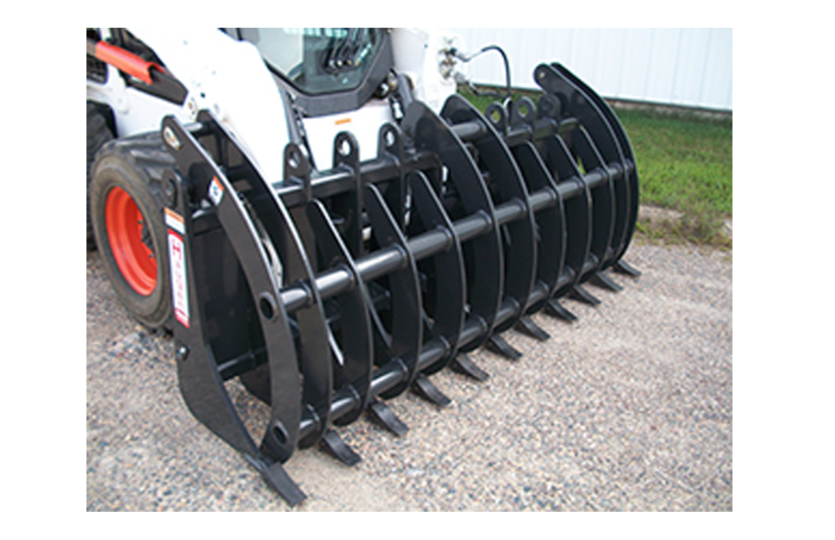

The Haugen HGR skid steer grapple rake is a demolition-duty grapple designed for heavy debris cleanup, land clearing, and material handling where lighter grapples fail. Available in two widths — 78" (10 teeth, 1,330 lbs) and 86.5" (11 teeth, 1,456 lbs) — these are among the heaviest grapple rakes in the industry. Key specs: 53" maximum clam opening, 3/4" T-1 steel bucket teeth with replaceable tips, 1/2" Grade 50 grapple tines at 8" spacing, 3" x 10" industrial hydraulic cylinders with built-in guards, and spring-loaded hose guides. Universal Quick Attach. Powder coat finish. Two auxiliary hydraulic circuits required. Made in USA with a 1-year warranty.

⚙️ Key Features

• Two widths: 78" (10 teeth, 1,330 lbs) and 86.5" (11 teeth, 1,456 lbs)
• 53" maximum clam opening — wide enough to grip large piles, structural members, and timber
• 3/4" T-1 steel bucket teeth with replaceable tips
• 1/2" Grade 50 grapple tines at 8" spacing
• 3" x 10" industrial hydraulic cylinders
• Built-in cylinder guards — protect cylinders from debris and impact during demolition
• Spring-loaded hose guide — keeps hoses from catching on debris
• Universal Quick Attach | Powder coat finish
• Made in USA | 1-year warranty

🔑 Benefits

• 1,330+ lbs weight class means the HGR doesn't flex under load the way lighter grapples do — when gripping large structural timbers, concrete rubble, or root balls, grapple rack flex allows material to slip. The HGR's weight-to-strength ratio is purpose-built for this load class.
• Replaceable tooth tips cut tooth maintenance cost significantly — the 3/4" T-1 bucket teeth wear at the tips first; replaceable tips mean you swap only the worn component rather than the full tooth, reducing per-hour wear cost on high-cycle demolition work.
• Built-in cylinder guards survive what the job site throws at them — cylinder guards on budget grapples are often add-ons or absent entirely. The HGR's guards are integrated into the frame design specifically because demolition and debris work exposes cylinders to impact that would destroy unprotected hydraulics.
• 53" clam opening grabs large loads in fewer cycles — a wide clam opening reduces the need to reposition for each grab, directly cutting cycle time on large debris piles and fallen timber.

📊 Specifications

🔗 Attachment Compatibility

The HGR requires two auxiliary hydraulic circuits (one for each independent cylinder). Verify your skid steer has dual auxiliary circuit capability before ordering. At 1,330–1,456 lbs empty, confirm your machine's rated operating capacity can safely handle the grapple weight plus expected material load.

🚜 Machine Compatibility

Compatible with full-size skid steers and compact track loaders with Universal Quick Attach and dual auxiliary hydraulic circuits:

Requires dual aux circuits. At 1,330-1,456 lbs empty, confirm your machine's operating capacity. Best suited for machines rated 2,200+ lbs operating capacity.
