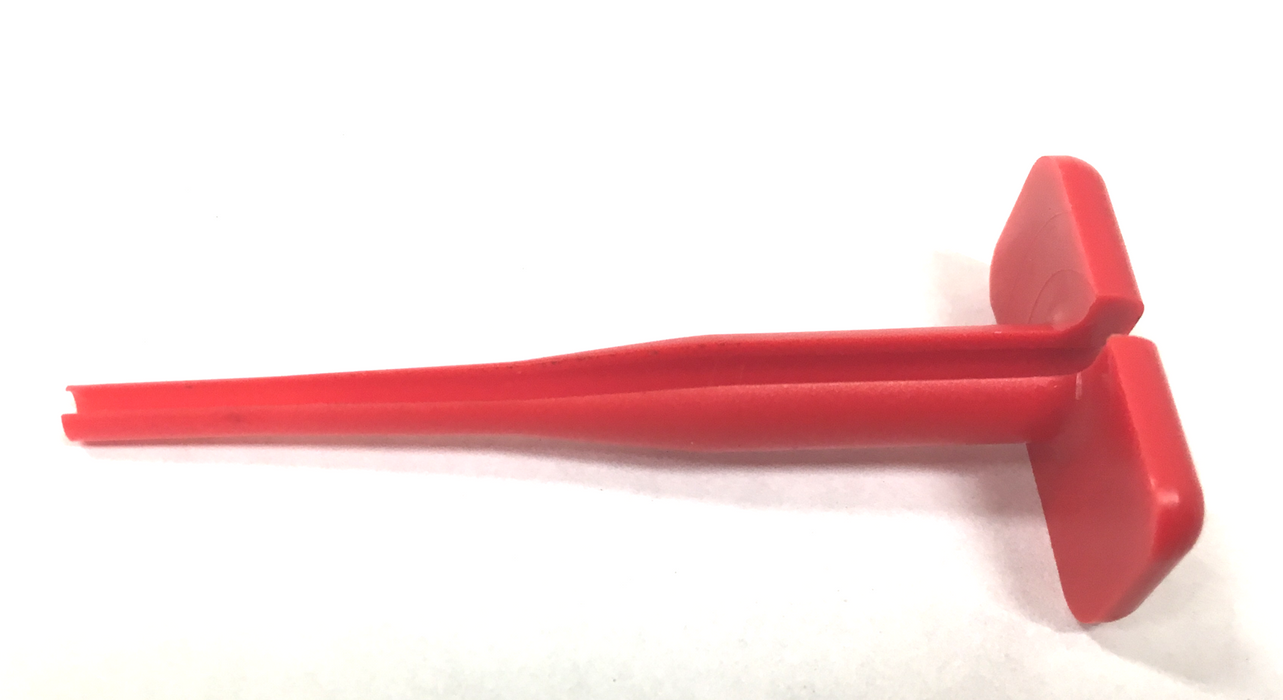

7-Pin CAN Socket & Pin Removal Tool (Small CAN Pins Only)
This extraction tool is designed specifically for removing the small CAN pins and sockets used in modern Bobcat 7-pin Trident-style CAN connectors. If you’ve damaged a connector on your attachment or loader and need to safely release the terminals, this tool is made for that task.
It is not compatible with 14-pin connectors and will not work on larger pin styles. This tool is intended for short-term or occasional use and is ideal for a handful of removals during repairs. If you require a long-life, professional-grade extraction tool, permanent versions are available separately.
Connector style reference:
The images below show the correct 7-pin CAN connectors. This tool works on both male and female versions.
Disclaimer
Compatibility
Which connectors is this tool compatible with?
Does this tool work with 14-pin connectors?
No, this tool does not work with 14-pin connectors.
Limitations
It works only with 7-pin Trident CAN connectors and is designed specifically for the small CAN pins.
No, this is a short-term solution intended for a limited number of pin or socket removals.
The tool is designed for only a few removals and is not intended for long-term or repeated professional use.
What should I do if the pin does not release easily?
If the pin does not release, remove the tool slightly, rotate it, and reinsert it to engage all retaining barbs before trying again.
General
What is this tool used for?
This tool is used to remove CAN pins or sockets from 7-pin Trident-style CAN connectors on Bobcat machines and attachments.
Will this tool work on both male and female connectors?
Yes, it can be used on both male and female 7-pin CAN connectors.
Is this a permanent or professional-grade tool?
How long should I expect this tool to last?
How is the tool used?
The tool is inserted from the face of the connector, rotated slightly to engage the retaining barbs, and the wire is gently pulled from the back of the connector.
Does removing pins require force?
No, proper technique is required rather than force. Applying excessive force can damage the connector or the tool.
Can improper use cause damage?
Yes, using too much force or incorrect technique can damage both the connector and the removal tool.
Who should use this tool?
This tool is intended for users who need occasional removal of damaged or misplaced CAN pins in 7-pin Bobcat-style connectors.
