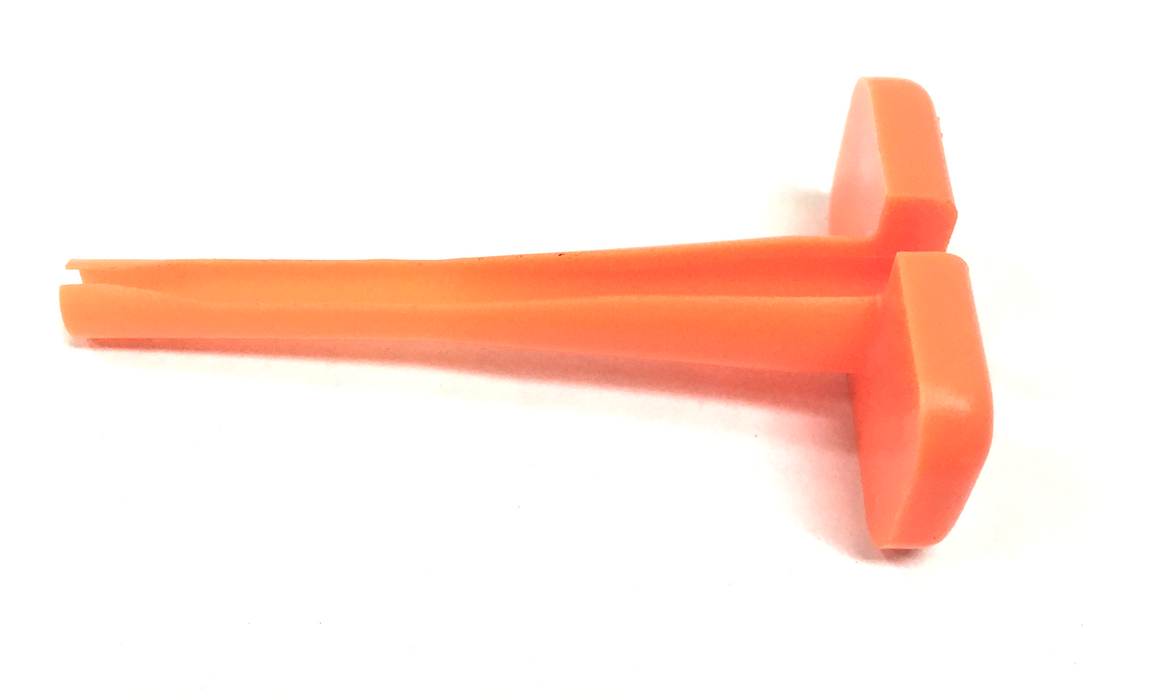

7-Pin Socket/Pin Removal Tool for Bobcat Connectors: Power Pins Only (Large Terminals)
Damaged a 7-pin Bobcat connector on your machine or attachment and need to pull out the larger power terminals? This tool is made for that exact job. It’s designed specifically for the modern 7-Pin Trident-style connector family and is intended for the large power pins/sockets only.
Important: This tool is not compatible with 14-pin connectors. It’s also a temporary service tool meant for a handful of removals—don’t expect lifetime durability. If you need a long-term shop-grade solution, the permanent versions are available (typically around $65 each) and we can help you order them.
Connector reference (tool fits male or female):
Disclaimer
Compatibility
Which connectors is this tool compatible with?
It is compatible only with 7-pin Trident CAN connectors used on modern machines.
Does this tool work with 14-pin connectors?
No, this tool does not work with 14-pin connectors.
Limitations
This version is designed specifically for the large power pins, not the smaller CAN pins.
No, this is a short-term solution intended for a limited number of pin or socket removals.
What should I do if the pin does not release?
If the pin does not release, remove the tool slightly, rotate it, and reinsert it to better engage the retaining barbs.
General
What is this tool used for?
This tool is used to remove large power pins or sockets from 7-pin Trident-style CAN connectors found on Bobcat machines and attachments.
Is this tool for CAN pins or power pins?
Can it be used on both male and female connectors?
Yes, the tool works on both male and female 7-pin connectors.
Is this a long-term or professional-grade tool?
How is the tool used?
The tool is inserted from the face of the connector over the pin or socket, rotated slightly to engage the retaining barbs, and the wire is gently pulled from the rear of the connector.
Should force be used when removing a pin?
No, proper technique is required. Excessive force can damage the connector or the tool.
Who should use this tool?
This tool is intended for users who need occasional removal of damaged or incorrect power pins in 7-pin Bobcat-style connectors.
